Category
:
SEMI-AUTOMATIC FILLING SYSTEMS FOR FOOD PRODUCTS (PRO)
Product Name
:
SYSTEM OF HALF AUTOMAIQUE FILLING OLIVE OIL
Product Description
:
Required Field:150 M2
Total Electricity Consumption:10 KW 380 3 PHASES
Origin:TURQUE
Capacity:500-800 UNIT HEURE
Number of Employees:4 PERSON
Required / Air, Water and Fuel:6 BAR
Products
FILTRE MULTIFONCTIONNEL A HUILE (TYF 100)
TYF Oil filter which is made from high quality materials with latest technology is used for
filtering oilseeds oil. Getting maxiumum efficency without losing oil specisfications and oil
quality . All the parts which touched on oil is made from stainless steel.
Used for :
Black pepper, Soya Cotton seed, coriander, cumin seed Almonds, Apricot stones,
argania, avocado, babacu, beech nut, billberry safflower, brazil nut, borage, black currant,
cacao, coconut, calendula, cashew nut, castor beans, caraway seed, citrus, coffee, copra,
cotton seed, coriander, cumin seed, elderberry, evening primrose, grape pips, gold of
pleasure, groundnut, hemp, hazel nut, jatropha, fruit kernels, jojoba, kernel, linseed, mace,
germs, macadamia, melon seed, mustard seed, nut, nutmeg, neem seed, niger seed, palm
seeds olive, passion fruit, pecanut, peanut seeds, pistachio, pumpkin seed, poppy seed,
rape seed, raspberry, red pepper, rubber, sea buckthorn, sesame seeds, seed rose hip,
soybean, spurge, shea nut, sunflower seed, stinging nettle, tea seeds, tropho plant, tomato
seed, walnut etc...
TECHNICAL INFORMATION
Model:TYF 100
Motor Power:0.55 Hp.
Voltage: 220-380 ( Three phase ) 50-60 hz
Weight:327 kg
Capacity: 100 lt
Dimension :
Height 125 cm
Lehgth 130 cm
Width 100 cm
SEMI AUTOMATIC, PNEUMATIC HONEY FILLING MACHINE (PPD800)
Semi automatic, pneumatic honey filling machine, adjustable volumetric grammage ability from 100 cc. to 1000 cc. thanks  to  its  vacuuming capability it sucks the product from  depot,  pneumatic  foot  pedal  controlled,  adjustable  filling and sucking  speed,  made of completely stainless  steel, single  filling head,  about  800 – 1000 pcs./ hour  capacitied
3 METERS LENGTH BAND CONVEYOR (DL3M)
3 meters length band conveyor,  equipped with 0.25 KW gearbox motor,  20 cm. width rubbered tape, 18 cm. width stainless steel working edge,   made of stainless steel profile chassis

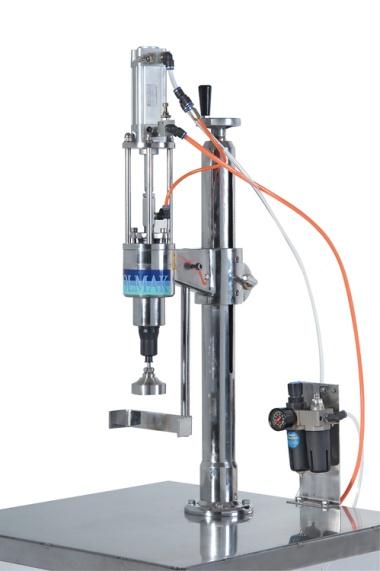

PNEUMATIC CAP CLOSING MACHINE  (DLMC)

Pneumatic cap closing machine for screw caps,  adjustable according to the bottle height, adjustable closing torque, foot pedal controlled, about 800 – 1000 pcs./ hour capacitied

STAINLESS STEEL TRANSFER PUMP  (DLP)
Stainless steel transfer pump for semi viscosity products, like shampoo and balsam,  equipped with 2,2 KW motor, cartridge filter, wheeled chassis,  about 1500 – 2000 liters/ hour capacitied
SEMI AUTOMATIC BOTTLE LABELLING MACHINE (ESA100R)
Caracteristique Techniques:
plaque d’aluminium principal,
1 pièce ALSTEP-E étiquetage module (moteur step pour donner étiquette et compteur électronique avec commande),
système de rouleau  rotation de  bouteille  (moteur-réducteur, vitesse constante, ajusté en fonction de la taille de produit).
système départ étiquette avec pédale
Dimensions d’étiquette:
Largeur du rouleau d’étiquette: Minimum 10mm, maximum 100mm
Longueur d’étiquette: Minimum 10mm, maximum 500mm

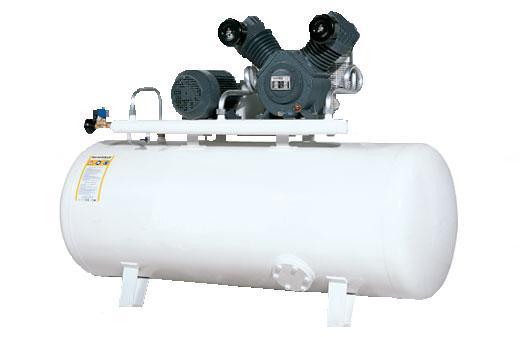

AIR COMPRESSOR (A500)
Air compressor with 300 liters capacitied depot and 4 KW motored
SHRINK WRAPPING MACHINE (S6040)
Shrink wrapping machine with 60x40 cm. sized tunnel, gearbox motored,  painted metal plate chassis
PANELS AND EQUIPMENTS (INS)
Installation between mixers and tanks, valves,  hoses, electric panels and installation between panels and equipments
