OR-80L SACHET PACKAGING MACHINE + 1 SET PISTON FILLER FOR SAUCE

Category
:
3 OR 4 SIDE POWDER SEALING FILLING PACKAGING MACHINE (EKO)
Product Name
:
OR-80L SACHET PACKAGING MACHINE + 1 SET PISTON FILLER FOR SAUCE
Product Description
:

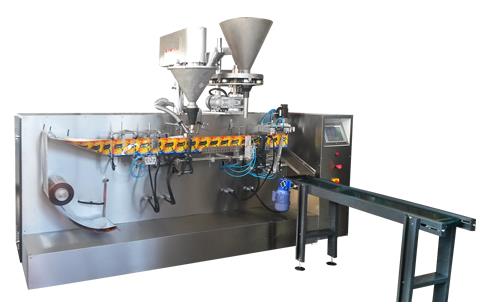

OR-80 Sachet Packaging Machine is a full automatic machinery with PLC control which designed for producing 3 or 4 side sealed packs. Filing System for the machine produces as Volumetric, Auger (Screw) and/or Liquid filling system according to the products to be packed Filling volume of the machine is between 10-200 ml The main usage area for this machine is to pack products like spices, sauces, soup mix, tea, coffee, cream, ketchup, mayonnaise, yeast powder, shampoo, etc.

Request a Bid
Required Field:25 m2
Total Electricity Consumption:2 kW 380 V, 3 Phases 50 - 60 Hz
Origin:TURQUE
Capacity:90 Pcs / Max
Number of Employees:1
Required / Air, Water and Fuel:6 Bar Air Presseure 300 Lt/Munite
Products
SACHET PACKAGING MACHINE  (OR-80)
OR-80 Sachet Packaging Machine is a full automatic machinery with PLC control which designed for producing 3 or 4 side sealed packs. Filing System for the machine produces as Volumetric, Auger (Screw) and/or Liquid filling system according to the products to be packed Filling volume of the machine is between 10-200 ml The main usage area for this machine is to pack products like spices, sauces, soup mix, tea, coffee, cream, ketchup, mayonnaise, yeast powder, shampoo, etc.

CONSTRUCTION
Heavey duty full steel frame
Product handling line and all chassis cover is stainless steel.
Body design for easy clean down.
Heavey duty roller for easy relocation.
Heavey duty adjustable feet for permanent positioning

SPECIFICATION:
Width: 1000 mm
Length : 2100 mm
Height: 2150 mm
Min. Bag Size (width x Length): 70mm/140mm
Max. Bag Size  (width x Length): 90mm/190mm
Main Frame:  Paslanmaz çelik
Weight  (App): 450 Kg
Power: 7 kW
Air Pression: 6 Bar
Roll inner Diameter: 76 mm
Roll Diameter: Max: 300 mm
Bag Type : Square (Perforated Package possibility Up to 10 packages On-screen setting)
Capacty: 70-80 Pcs/Munite
The Packet length dimension can be set to continously variable any dimension between the minimum and maximum value with servo control
LG Industrial PC Motion Control System
LG Servo motor and Driver
LG 5,7” Touch Screen Control Panel With Colour
Note: Our company reserves the right to make changes in technical specifications of the machines as deemed necessary without prior notice.
Origin: Turkey
PISTON FILLER FOR SAUCE (PF1)
Max Filling Range: 300ml;
Piston Pump: Stainless Steel 316;
Hopper Size: 80 Liter;
Working way: Pneumatic Drive;
Easy Clean Design
Auto-Lift up and down Cylinder;
Mechanical Frame: SS 304
Including:
1,Tailor Made Contact Parts And Control Function For Dosing
2,Auto-Lift up and down Cylinder For Dosing Pipe
Note: Our company reserves the right to make changes in technical specifications of the machines as deemed necessary without prior notice.
