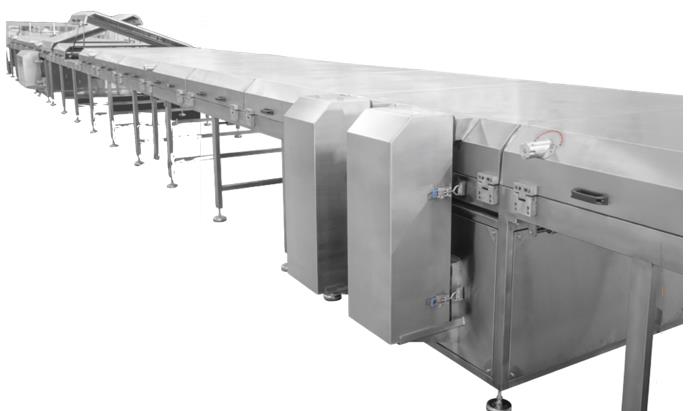

Model CEM coating machines are manufactured completely stainless steel. Chocolate pumps are frequency controlled. The machine can be both full-coated and floor-coated as well as side-coated to specific heights. The system is equipped with temperature controlled cab heating. The dust blowing fan on the wire band is height adjustable. The chocolate temperature is digitally controlled and adjusted. Equipped with vibrating and tail cutting unit to pull out the chocolate. Depending on the capacity, it can be manufactured as a group of double cells in a single yard. The waterfalls are designed on a slip, which can be moved both transversely and longitudinally, even when the machine is in a calm state.
TECHNICAL DETAIL
Band width is 1200mm.
Only one waterfall and one blowing fan.
It's double-wire.
The wire bands are stitched and the locking mechanism is used for easy disassembly and installation.
It is the base stripping system.
The cylinder's chocolate chamber is the heating system.
The lower chamber is mobile and can be easily disassembled and attached.
There is sewage drain at the bottom for easy cleaning.
Inside the hopper is a stirrer.
The chocolate thickness flowing from the waterfalls is fine-tuned.
Chocolate pump YILDIZ brand is used.
Reducers are used TRAMEC brand.
FESTO brand is used in pneumatic group.
Electronic materials are OMRON brand.
Depending on the preference of the chocolate, with the help of a three-way valve and a pump from the reservoir
can be transferred to the waterfalls.
Wire bands are pneumatic vibrating.
The wire tape rotating mill is moving and heating system.
Pumps used for wall heating are PETROLLI brand. The internal parts of the pumps are 304 quality stainless CrNi.
The chocolates flow to the upper waterfalls and the base coating are precisely adjusted.
The water of the wall water can be adjusted by means of the heat exchanger.
Note: Our company reserves the right to make changes in technical specifications of the machines as deemed necessary without prior notice
