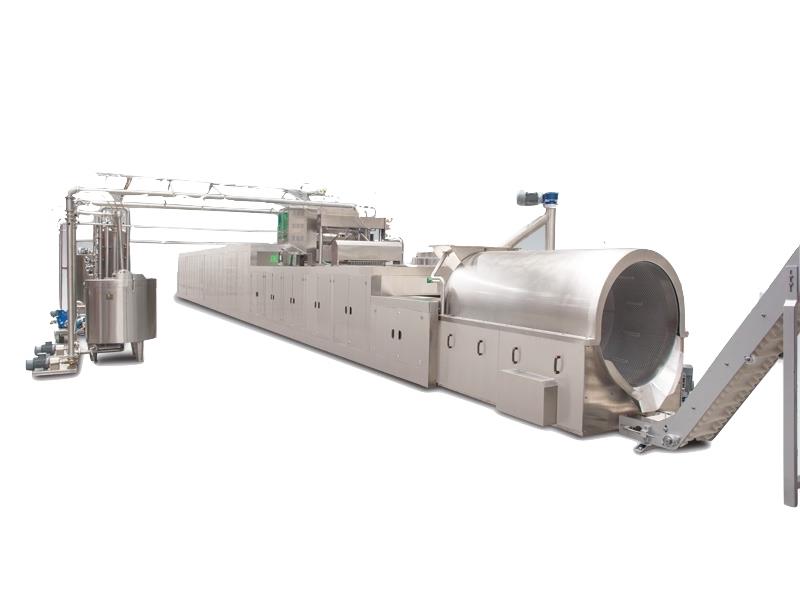

1.1) JELLY CANDY INJECTION & MOULDING SECTION
Our machine line has been equipped with suitable servo motors to be able to produce candies continuously and fully automatically. Raw Material Injection Process is performed by MITSUBISHI SERVO MOTOR SYSTEM. Forward and Backward Motion of the Injection Unit is performed by a SERVO MOTOR SYSTEM. Injection System has ability to make center filled candies in different weights & colours as desired.
Injection Capacity could be upto 60 moulds per minute, depending on raw material and mould shape and mould volume.
Injection System Forward&Backward Motion Servo Motor: 1.5 KW., Speed: 2,000 RPM., Brand: Mitsubishi. Equipped with Demoulding Sytem consisting of demoulding-pins as well as candy transfer conveyor band, also including candy launching system to transfer candies into Sugar Coating Drum.
TECHNICAL SPECIFICATIONS:
Process Capacity: 60 Moulds per minute.
Steam Pressure Required: 6 – 8 Bars., Air Pressure: 6 – 8 Bars.
Mould Conveying Motor: 3 KW., Speed: 17 RPM.
Total Electrical Power: 30 KW., 380 V., 3 phases.
Electrical Current: 60 A., Power Cable: 10 x 4 + 1
Dimensions:
Width 1,884 mm.,
Length 7,451 mm.,
Height 2,372 mm.
Weight: 3,800 kg.
1.2) SUGAR COATING DRUM
Sugar is transferred from the sugar collecting container into the sugar feeding container via a Helix Conveyor automatically and continuously. All candy products after demoulding process are transferred into Coating Drum for coating with crystal sugar.
TECHNICAL SPECIFICATIONS:
Total Electrical Power: 7 KW., 380 V., 3 phases.
Power Cable: 4 x 2.5 ENYAF
Dimensions: Width 1,869 mm.,
Length 2,573 mm.,
Height 2,457 mm.
Weight: 728 kg.
1.3) ANGULAR CONVEYOR BAND
Conveyor Band is equipped with product-carrying-pallets and edge-bars to transfer products properly, and made of hygenic material.
TECHNICAL SPECIFICATIONS:
Total Electrical Power: 1.5 KW., 380 V., 3 phases.
Dimensions:
Width 703 mm.,
Length 1,758 mm.,
Height 2,013 mm.
Weight: 165 kg.
1.4) PECTIN SOLUTION PREPARATION TANK (PPT) - MODEL: PPT-450
Pectin is the base material for producing jelly candies, and can be used in a calculated-ratio of pectin & water approximately with 1/15 , but depending on the specifications of pectin used in production. The process tank is completely made of SS 304 material, with 2 walls. The PPT is heated by circulating steam inside the tank. Temperature and Mixing-Speed can be controlled from the ELECTRICAL CONTROL PANEL on the PPT.
Pectin Feeding Hopper has a helix (screw) type feeder. There are 2 sets of manual OPEN/CLOSE VALVES (made of CrNi material – DN 60) at the INLET and the OUTLET of the PUMP.
The PPT has a high-speed stirrer with a speed-drive, so that you can adjust the speed accordingly with your raw material and water temperature inside the process tank. Water amount can be filled into the PPT as adjusted automatically, accordingly with the formulation. The stirrer wing-level can be adjusted manually as desired to generate mixing-turbulance inside the process tank. Top-lid has a seal-ring and a lock mechanism on it. All the accessories are designed as being Easy-to-Operate and Easy-to-Clean.
TECHNICAL SPECIFICATIONS:
Inner Volume: 450 lt.
Process Capacity: 300 lt. for each-batch (batching time: 20 minutes).
Stirrer Motor Speed: 0 – 1,400 RPM (adjustable).
Stirrer Motor Power: 3 KW., 380 V., 3 phases.
Helix Feeder Motor Power: 0.37 KW., Motor Speed 1,400 RPM., Helix Rotational Speed: 14 RPM. Steam Pressure Required: 6 – 8 Bars (for heating the process tank).
Total Electrical Power: 5 KW., 380 V., 3 phases.
Dimensions: Diameter 954 mm. ,
Height 1,622 mm.
Weight: 300 kg.
1.5) PRODUCT PREPARATION (CANDY FORMULATION) TANK:
Product recipe (consisting of sugar, glucose and pectin-solution) is formulated in this tank. The process tank is completely made of SS 304 material, with 3 walls: Inner Wall, Middle-Wall (to keep hot water inside the jacketed partition between the inner wall and the middle wall for heating the tank homogeneously), Outer Wall (to keep insulation material safely, to save more heating energy).
All the processes are controlled by the PLC with touch-screen. It has an automatic weighing system, which measures all the raw material accordingly with the formulation as the data entered into the PLC. The weighing system has load cells.
The PLC control all functions as: Raw Material (sugar, glucose, pectin-solution) Weighing Processes, Product Temperature, Stirrer Control, Time Control, Pump Operational Control.
Product Preparation Process can be effectuated around at 80 oC , and heating energy is provided through a steam generating system. The stirrer inside the tank has a fixed-speed, which is 60 RPM approximately.
TECHNICAL SPECIFICATIONS:
Process Capacity: 850 kg. per hour.
Stirrer Motor Speed: 0 – 1,400 RPM., Mixing Speed: 60 RPM.
Stirrer Motor Power: 3 KW., 380 V., 3 phases.
Steam Pressure Required: 6 – 8 Bars (for heating the process tank).
Total Electrical Power: 6 KW., 380 V., 3 phases.
Dimensions:
Diameter 1,092 mm. ,
Length 2,625 mm.,
Height 2,559 mm.
Weight: 700 kg.
1.6) STOCK TANK
It is used to keep semi-finished-product at desired temperature, which is around at 80 oC. The stock tank is completely made of SS 304 material, with 3 walls: Inner Wall, Middle-Wall (to keep hot water inside the jacketed partition between the inner wall and the middle wall for heating the tank homogeneously), Outer Wall (to keep insulation material safely, to save more heating energy).
The stirrer inside the tank has a fixed-speed, which is 60 RPM approximately. It has a Product Transfer Pump with a speed-drive unit. Temperature of the tank, operations of the pump and the stirrer are controlled from the electrical panel. There is a serpentine system, which is installed at the bottom of the tank to heat water inside the tank.
TECHNICAL SPECIFICATIONS:
Capacity: 820 kg.
Stirrer Motor Speed: 1,400 RPM., Mixing Speed: 60 RPM.
Stirrer Motor Power: 2.2 KW., 380 V., 3 phases.
Steam Pressure Required: 6 – 8 Bars (for heating the stock tank). Total Electrical Power: 2.2 KW., 380 V., 3 phases.
Dimensions:
Diameter 1,104 mm. ,
Height 1,874 mm.
Weight: 400 kg
1.7) PRODUCT MATURING TANK
It is used to stock finished-products in liquid form at desired temperature, which is around at 90 oC.
The stock tank is completely made of SS 304 material, with 3 walls: Inner Wall, Middle-Wall (to keep hot water inside the jacketed partition between the inner wall and the middle wall for heating the tank homogeneously), Outer Wall (to keep insulation material safely, to save more heating energy).
There is a serpentine type heating system, which is installed at the bottom of the tank to heat water inside the tank. There is 1 set of manual OPEN/CLOSE VALVE (made of CrNi material – DN 60) at the INLET of the pump. and 1 set of manual DISCHARGE VALVE (made of CrNi material – DN 60) at the OUTLET of the pump. Temperature of the tank and operation of the pump are controlled from the electrical panel. Steam is supplied from the steam outlet of the JELLY-CANDY CONTINUOUS COOKING UNIT.
TECHNICAL SPECIFICATIONS:
Capacity: 320 kg.
Steam Pressure Required: 6 – 8 Bars.
Total Electrical Power: 3 KW., 380 V., 3 phases.
Dimensions: Diameter 834 mm. ,
Height 1,305 mm.
Weight: 300 kg.
1.8) JELLY-CANDY CONTINUOUS COOKING UNIT:
The cooking process is achived by a Heat-Exchange-Radiator-System. It has an effective heat-transfer ability to provide a continuos cooking process with a stable temperature. Heating Energy is supplied through a steam line.
Product inlet & outlet pump-motors have speed-drives, which enable to control product input & output manually as desired. Cooking temperature can be adjusted accordingly with product specifications manually.
Vacuum Evaporator System is used for increasing BRIX-SCALE level, by evaporating water inside the product. There is a spray mechanism inside the process tank which has a heating jacket. The heat is supplied from a steam generating line. Temperature of the process tank can be adjusted manually.
TECHNICAL SPECIFICATIONS:
Total Electrical Power: 7.5 KW., 380 V., 3 phases.
Dimensions:
Diameter 1,387 mm. ,
Length 2,207 mm.,
Height 2,519 mm.
Weight: 750 kg
1.9) GLUCOSE STOCK TANK
The stock tank is completely made of SS 304 material, with 3 walls, consisting of Inner Wall, Middle-Wall (to keep hot water inside the jacketed partition between the inner wall and the middle wall for heating the tank homogeneously), and Outer Wall (to keep insulation material safely, to save more heating energy). Equipped with a glucose transfer pump.
TECHNICAL SPECIFICATIONS:
Process Capacity: 1,000 kg. per hour.
Total Electrical Power: 1.5 KW., 380 V., 3 phases.
Dimensions: Diameter 834 mm. ,
Height 1,305 mm.
Weight: 370 kg.
1.10 ) ADM SS 500-13 PARAFFIN COATING DRUM
Stencil products are transferred directly into the drum.
The products lubricating the drum.
Resting rooms immersed in the process of packing for a while. Power: 1,5 KW
The current 3 Amp.
Voltage: 380 V (AC)
Frequency: 50 Hz
Weight: 431 Kg
Air pressure:6 - 8 Bar
Touch PLC connected to the control panel.
Outer hull and paraffin oil tank in AISI 304
Brass trunk spray spray nozzle.
85 Shore polyurethane coating, drive wheel.
Note: Our company reserves the right to make changes in technical specifications of the machines as deemed necessary without prior notice.
Made in Turkey
