Category
:
PAPER CONVERTING MACHINES (PRO)
Product Name
:

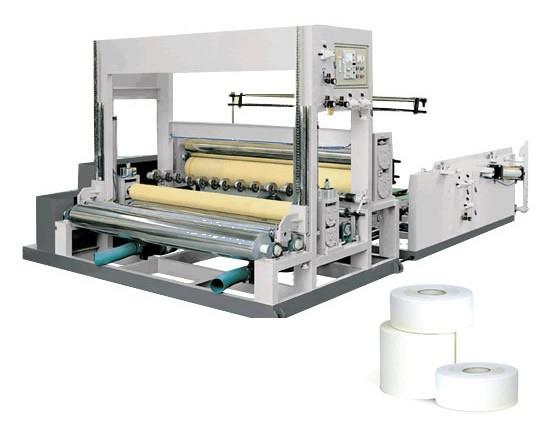

SKM-DM20-M TISSUE SLITTER REWINDER
Product Description
:
SKM-DM20-M model jumbo bobbin slitter rewinder machine is slitting single-ply, double-ply or three-ply jumbo paper rolls into the required sizes. Sliced papers can be used in the production of paper napkins, facial tissue or handkerchief
Required Field:70 m2
Total Electricity Consumption:7.5 kW / 380 V/ 3 PHASE
Origin:TURQUE
Capacity:300 m.-500 m/Mun.
Number of Employees:1
Required / Air, Water and Fuel:6 bar Air Presseure/500 Lt Munite
Products
TISSUE SLITTER REWINDER (SKM-DM20-M)
SKM-DM20-M model jumbo bobbin slitter rewinder machine is slitting single-ply, double-ply or three-ply jumbo paper rolls into the required sizes. Sliced papers can be used in the production of paper napkins, facial tissue or handkerchief. It is also possible to slice non-woven with the SKM-DM20-M tissue slitter rewinders. The machine moves the jumbo bobbins to the slicing unit with the pneumatic belt system. The machine slits tissue bobbins up to 1100mm in diameter as standard. However, it is also possible to make a tissue slitter rewinder machine with paper roll slitting capacity of up to 1500mm to 2000mm in the direction of demands. The machine uses the PLC and edge control technology to slice the jumbo paper bobbins with the desired quality.

General features:
Maximum Operating Speed: 300 m.-500m / min.
Products to be worked on: 15- 250 gr / m2 - Cellulose paper, Novoven
Max. Width of Raw Paper: 2050 mm
Edge Control: Electronic Paper tension control (with load cell)
Power requirement KW: 380 3 Phase 7.5 KW
PLC: Yes
Touch Screen: Yes

Bobbin Reinforcement Section:
Max. Bobin Diameter (Solvent): 1600 mm
Bobin Diameter (Solvent): 76 mm
Bobin Roll Height: 2100 mm
EPC controller: Yes Load Cell
Driving Motion: With Electric Motor
Bearing: SKF- ORS- FAC
Air Spindle Open: Yes - 4 (Rear Coil)
Loading Raw Paper: Hydraulic Bobin loading
Meter Counter: - Yes - Electronic

Slitter Unit:
Paper Weight: 15 - 250 gr / m2 - Paper Cellulose- Nowoven
Pneumatic bobbin press adjustment
Fixed blade blade holder
Banana rolls with adjustable curves for wrinkles
Full automatic operation feature
Automatic stop and beep on paper breaks
Minimum Paper Bobbin Slicing Dimension : 250 mm
Blade System: Fixed blade
Number of Blades: 9 Pieces

Bobbin Rewinder Section:
Outer Diameter of Finished Product: 1300 mm
Diameter of Finished Product Core: 76 mm
Air shaft Opening: Yes - 1 Prewinding shaft

Machine measurements:
Machine Length: 5100 mm
Machine Eni: 3000 mm
Machine height: 2000 mm
Machine Weight: 5600 kg

The brand of materials:
PLC or Motion Control: Omron Brand
Bearings: SKF
Other electrical materials: Shinider German Company
Blades Origin: German or Italian
Machine is painted by water and corrosion resistant two-component epoxy primer and paint.
Note: Our company reserves the right to make changes in technical specifications of the machines as deemed necessary without prior notice.
Made in Turkey
Brand: Orse Machine
