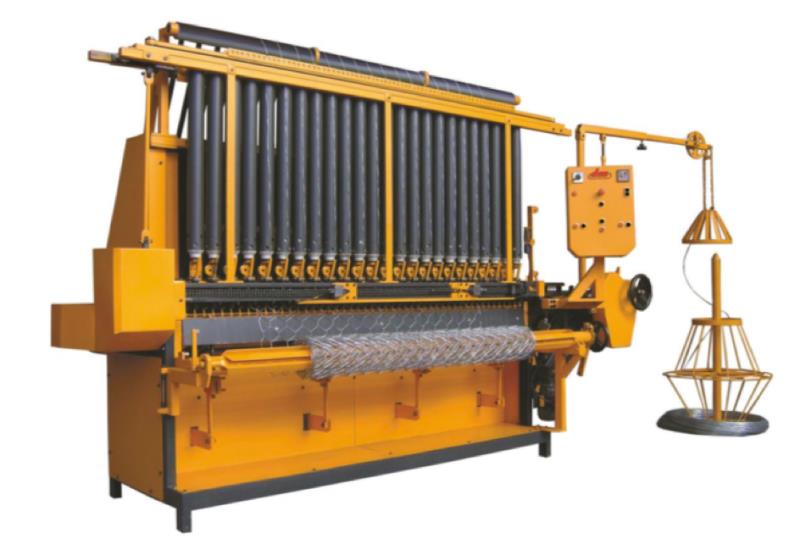

AGD2 AUTOMATIC HEXAGONAL NETTING MACHINE 30 cm – 310 cm

Category
:
AUTO. HEXAGONAL NETTING MACHINES (EKO)
Product Name
:
AGD2 AUTOMATIC HEXAGONAL NETTING MACHINE 30 cm – 310 cm
Product Description
:
Multi-tiered wire coil from the machine that makes coil. Hexagonal wire netting from a flat wire coil method automatically generates auger.

Request a Bid
Total Electricity Consumption:4.3 KW- 380 V- 3 PHASE 50 Hz
Origin:TURQUE
Capacity:120 m2/h (capacité est basée sur des inf. de l'œil à 70x70mm)
Number of Employees:1
Products
AUTOMATIC HEXAGONAL NETTING MACHINE 30 cm – 310 cm (AGD2)
TECHNICAL SPECIFICATIONS AND
RECOMMENDED EXTRA EQUIPMENTS
Machine model: ADG2 – 3,1m
Weaving length: 30cm up to 310cm
Wire diameter: 1.1mm - 1.9 mm

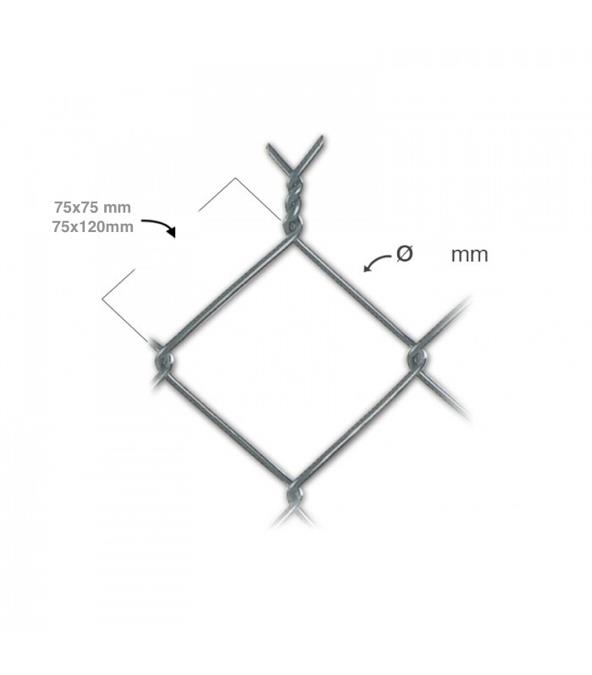

Mesh size: 75X75mm – 75x120mm
Output capacity: 120 sqm/h
Total power: 4,24kw
Electric current: 380v – 50 Hz
- Small coil making mechanism
- Control device to stop the machine when it small coil making - Main panel to control the electric power and cut the circuit
- Length of roll counter and alarm signal and stop when the roll reaches the required length
- Hand tools with tray - Drawer
Machine is painted by water and corrosion resistant two-component epoxy primer and paint.
Note: Our company reserves the right to make changes in technical specifications of the machines as deemed necessary without prior notice.
