LIGNE AUTOMATIC LINE FOR CUP-CAKES CAPACITY 5.600 - 7.000 UNIT HOUR

Category
:
CUP-CAKES AND MUFFINS FILLING MACHINES
Product Name
:
LIGNE AUTOMATIC LINE FOR CUP-CAKES CAPACITY 5.600 - 7.000 UNIT HOUR
Product Description
:
Modular Line to make muffins and injected cupcakes. Includes, Muffins filling machine_DA To fill the cupcake we use Injector machine after baking. Other machines take part in product development: spiral mixer, eggs centrifuger and rotary oven

Request a Bid
Required Field:200 m2
Total Electricity Consumption:35 KW / 380 V/ 3 PHASE
Origin:SPAIN & TURQUE
Capacity:Unités/heure 5.600-7.000
Number of Employees:4
Required / Air, Water and Fuel:6 BAR
Products
PLANETARY MIXER (PMX 004)
PMX planet mixers, cake and bakery products  whisking, mixing and kneading is used for, a high-performance machine. Different volumes depending on the bowl due to the fast and homogeneous mixture different speed can be reused. Mixing different products can be produced with different types of apparatus and equipment changes can be performed easily.With its accessories are made of stainless steel,hygiene and easy cleaning for bowl.

GENERAL FEATURES
·  Used for the mixing and kneading the pastry and floury products with high performance
·  Planetary system
·  Standart three speed 380V
·  Suitable choice with four kind of apparatus
·  Silent working
·  Aesthetic appearance
·  5mm HRP sheet body
·  Stainless steel bowl
·  Stainless steel apparatus
·  Easily changeable apparatus
·  220/380 Volt 50 Hz
·  24V control panel
·  Standats of CE
·  One year warranty against defect of manufacturing and assembly.
·  Optional ; speed control , transport car
Capacity:60 LT (10 kg flour 15 kg dough)
Width (mm):650
Lenght (mm):1000
High (mm):1480
Motor:  1,5-2-2,5 kw
Machine Weight (Kg)      :296
Note: Our company reserves the right to make changes in technical specifications of the machines as deemed necessary without prior notice.
Made in Turkey
EXTRA TANK (PMX 004-E)
Note: Our company reserves the right to make changes in technical specifications of the machines as deemed necessary without prior notice.
Made in Turkey

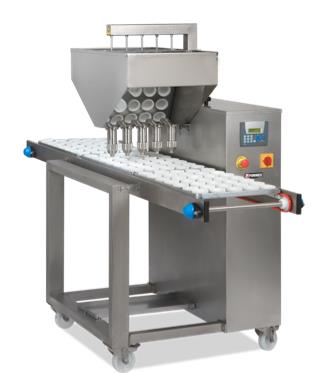

AUTOMATIC FILLING MACHINE (DA-40)
Place the tray in one side and pick it up filled at the end.
The Automatic Filling Machine for cup-cakes is the most suitable machine for the dosage of soft or semi-soft doughs, like cup-cakes, quickly and easy.
The computer incorporated in the machine supervises all the movements, checking correct functioning. as the tray feed, dosage/injected positioning and output.
If there is no paper, or tray is not collected at the end, the machine stops, sounds a warning and displays the reason for the stop on the control screen.
It’s rapid, easy to use, precise, does not punish the mixture, does not drip and the trays remain clean.
For trays of:
Width 40, 60 cm. (18“, 30 “  inch)
We can accomodate other trays size.
Dosage capacity for nozzle:
From 5 to 65 cc.
Regulable nozzles.
Nozzles: depending on model.
Production: DA-40:  200 bandejas/hora - DA-60: 280 bandejas/hora.
Tank capacity: 60 l
Weight: 200 Kg.
Dimensions (width x base x height):
DA-40: 200 x 70 x 155 cm
Motor: 2 of 1/8 and 1/2 C.V. - 220 / 380 V. three-phase
Electrical consumption: 1000 W
Other technical specifications on request.
Note: Our company reserves the right to make changes in technical specifications of the machines as deemed necessary without prior notice.
Made in Spain
AUTOMATIC INJECTOR (IA40)
It allows to inject the filler (jam, chocolate, etc.) inside the cake in the same tray that is used for the baking, avoiding unnecessary product handling.
The volumetric dosage of the product is exact, not being roller ensures the same dose in all nozzles. Mechanical control of dosing allows very accurate weight regulation. This dosing system allows us to work with a wide range of doughs.
The machine are sturdy and being built to work 24 hours. It needs no maintenance (no greasing). Thanks its new ligther chassis, the cleaning works are faster.
Made of AISI304 stainless steel and suitable for processing food products materials.
HMI interface incorporated supervises all the functions as:
—  Tray feed, positioning, inject and output.

—  Independent dragging function.

—  Mono-dosage function to adjust dough weight.

—  Multi dosage function, it repeats the same dose in the same tray’s
position.

—  Autocleaning function.

—  Electronic control to detect the tray, when the tray reaches the end
of the conveyor, the machine stops until the tray is removed.


TECHNICAL FEATURES
For trays:  Width 40, 60 cm. (18“, 26“  inch)
Can accomodate other trays size.
Regulation quantity of mixture:  From 3 to 45 cc.
Regulable nozzles: On request.
Recommended production: 180 trays/hour
Tank capacity: 60 l.
Weight: 210 Kg.
Dimensions: (width x base x height)  IA-40  200 x 70 x 205 cm.
1 motor of 1/8 C.V. - mono-phase
Needs compressor.
Air consumption: 120 lt/min
Work pressure atmospheres: 6 bar
Note: Our company reserves the right to make changes in technical specifications of the machines as deemed necessary without prior notice.
ROTARY RACK OVEN (ROTA609)
60*80 cm pan size , rear hell, manual dashboard, for more stable cooking while baking the car's property is to rotate to the right and to the left,  to reduce heat loss through the furnace bottom heat insulation, manufactured from 310 grade stainless steel firebox, hell elongated flame path system for maximum heat efficiency,  3 kw of electic power, Italian  RIELLO brand burner natural gas.
Baking Tray Size (mm)     600*800
Number Of Trays Max 18
Baking Area Max 8,6
Rotating Table  Yes
Type of Energy Transmission       Convection
Width A (mm)  1730
Depth B (mm)  1950
Height C (mm)   2300+220
Electrical Power (kw) 5
Power (kw)  70
Power (kcal/h)  60.000
Weight (kg)  2.100
Burner  Riello
Pressure of Gas (mbar) 50-300
Heating Mode Gas, Diesel, Electric
Control Panel  Manuel
Note: Our company reserves the right to make changes in technical specifications of the machines as deemed necessary without prior notice.
Made in Turkey
5 WAGON OVEN (TT 609)
5 Unit
20*30*1,5 mm stainless steel tubing and 2 mm shelves made of stainless steel, storeys may be reduced and increased optionally, number of floors 18,  60*80 cm according to pan
Note: Our company reserves the right to make changes in technical specifications of the machines as deemed necessary without prior notice.
Made in Turkey
200 PLATES (IA40-P)
Note: Our company reserves the right to make changes in technical specifications of the machines as deemed necessary without prior notice.
Made in Spain
CENTRIFUGE EGGS (OPTIONAL) (CH 150)
The shells are automatically deposited in the container.
Dimensions: 64 * 67 * 93
Work: automatic
Capacty eufs: Max. 20,000
Weight: 78 kg
Production: 2,000 hours
KW: 400 v 1.1 to 50 Hz
Note: Notre société se réserve le droit d'apporter des modifications aux spécifications techniques des machines jugées nécessaires et sans préavis.
Origin : Spain
