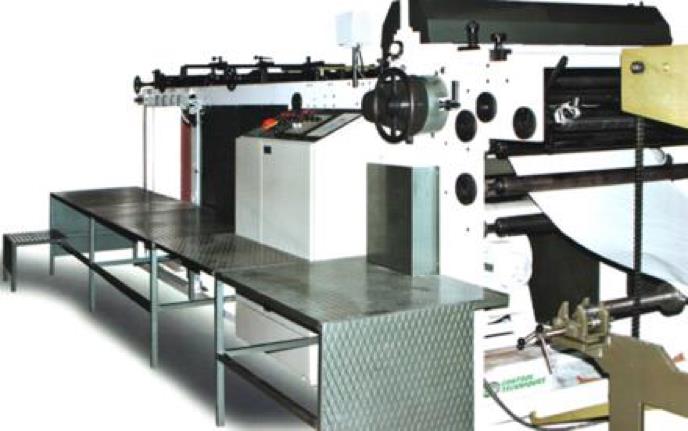

SM001 ROLLER SHEETER MACHINE (WITH SERVO CONTROL) 250-300 MT/MUN (For 20 gr/m2)

Category
:
PAPER BAG, SLICING & LAMINATION MACHINES (EKO)
Product Name
:
SM001 ROLLER SHEETER MACHINE (WITH SERVO CONTROL) 250-300 MT/MUN (For 20 gr/m2)
Product Description
:
The machine has overlapping feeding with electronic size measuring and collects onto the palette in the collection lift. It can cut one by one optionally. The blade width will be 110cm on the machine. It can operate with the paper in the width of 105 cm. Paper's size measures are adjusted electronically on the machine. It has paper counter and stops automatically optionally.

Request a Bid
Required Field:10 mt*4 mt
Total Electricity Consumption:12 kW / 380 V/ 3 PHASE
Origin:TURQUE
Capacity:250-300 MT PAR MUNITE
Number of Employees:6 bar Air Presseure/100 Lt Munite
Required / Air, Water and Fuel:1
Products
ROLLER SHEETER MACHINE (WITH SERVO CONTROL) 250-300 MT/MUN (For 20 gr/m2) (SM001)
The machine has overlapping feeding with electronic size measuring and collects onto the palette in the collection lift. It can cut one by one optionally. The blade width will be 110 cm on the machine. It can operate with the paper in the width of 105 cm.
Paper's size measures are adjusted electronically on the machine. It has paper counter and stops automatically optionally.
The machine draws 250-300 m paper per minute averagely as overlapping per minute. The machine's paper cutting sizes: width is between the range of 4 cm and 105 cm, and length is between the range of 40 cm and 105 cm. Paper cutting thicknesses are from 20 grams to 450 grams. Puller cylinder and blade engines has servo system on the machine.
Puller rubber cylinder has pneumatic piston. One set of spare blade is available.

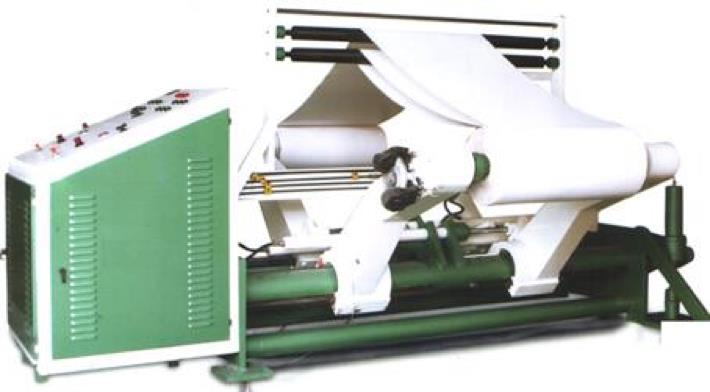

There are static bars on the machine in order to take product static. Roller loading unit on the machine has two rollers and its loading is hydraulic. Brakes are pneumatic brake. Loading capacity: diameter is 140 cm, width is 105 cm.

Main Features:
Operating speed Meter/ dak.max .: 250-300 Meter/Mun.
Cutting dimensions width (min. - Max.): 40-105 cm
Cutting size Length (min - max): 40-105 cm
Paper cutting thickness (min-max): 20 gr- 450 gr
Power requirement KW: 380 3 Phase 12 KW

Unit of Coil Warping:
Installation and winding shafts: Air
Speed Settings: Yes - Board of Control
Tractor and Roller blades: is Servo
Coil diameter (max): 1400 mm
Paper Width: 1050 mm

Machine Dimensions:
Machine Height: 10000 mm
Machine Width: 3100 mm (4200 mm including platform)
Machine Height: 2000 mm
Machine Weight: 7,000 kg

The brand of materials:
Servo motors: Omron or ABB we prefer Omron brand PLC or motion Control :
if desired Omron brand hot glue: Buhnen or Robotech depending on the
country where it goes. Register Control: Japanese or German firm.
Bearings: SKF
Magnetic power brake: Dutch origin
Pressure Control: Turkish origin
Other electrical materials: Schnider German Company
Machine is painted by water and corrosion resistant two-component epoxy primer and paint.
Note: Our company reserves the right to make changes in technical specifications of the machines as deemed necessary without prior notice.
Made in Turkey
