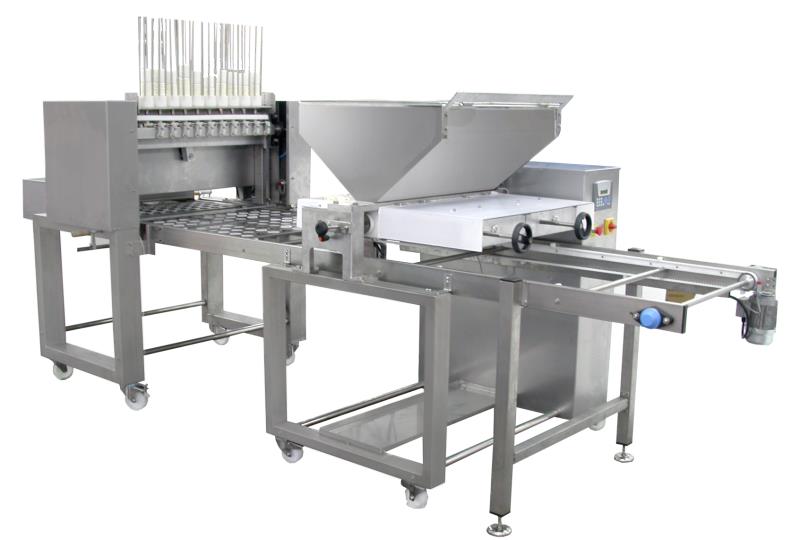

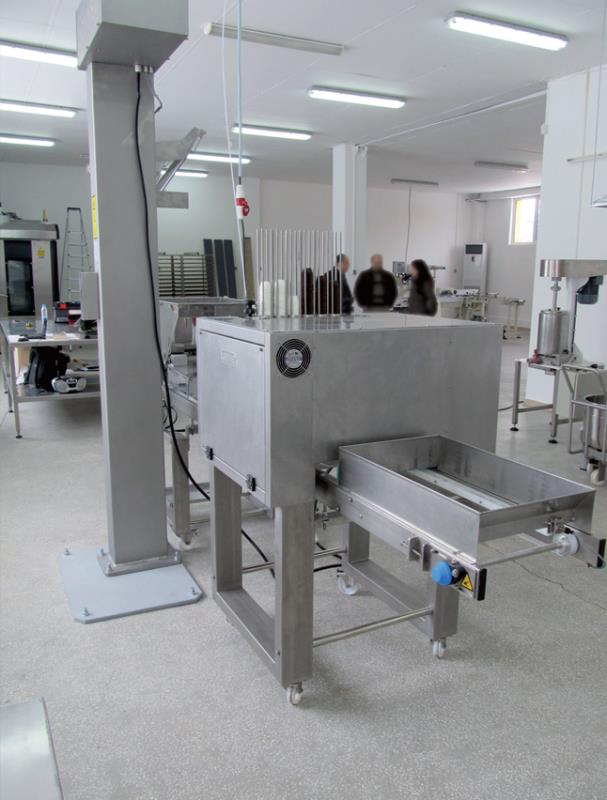

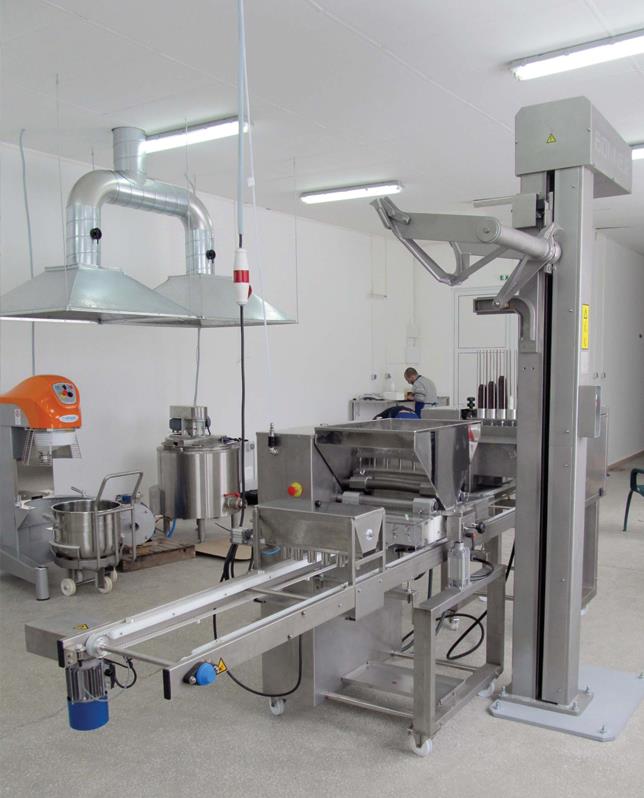

Automatic Cupper filler machine is the most suitable machine to eliminate the work of placing Madeleine paper. Equipped with a conveyor, this machine can be coupled to your machines. A computer controls all motions of the machine and also the functions of plate detection, plate run and locations, and stopping the machine. Machine is strong; it is produced to work for 24 hours. Its maintenance is easy.
Independent run function.
Paper intake, centering, paper placing speed setting.
TECHNICAL FEATURES
For trays with 40 cm width.
Option to adjust the model according to the customer needs.
Capsule quantity to be selected.
Production :
Maximum speed : 1 cycle per 3 seconds
Weight : 250 kg
Dimensions: (width x depth x height) cm :
CA 40 model: 95 x 80 x 168
3 engines: 0,37 Kw, 0,12 Kw and 1,3 Kw. 220/230 V.III
A compressor is required.
Electricity consumption: Maximum 2,5 Kw
Other technical specifications are given upon request.
+
Autocleaning function.
Control of production:
You can look the real production as it show the filled trays.
You can to programme the number of trays to fill.
Easy adjusting dose control.
Independent dragging function.
Multi.dosage function, it repeats the same dose in the same tray’s position as you need.
Mono-dosage function.
TECHNICAL INFORMATION:
For width trays: 40 (MA 40) cm.
Producction: 170 - 230 trats/h, depending on the model.
Nº nozzels on demand.
Dosage capacity: From 10 to 200 cc. by dose.
Tank capacity: 60 (MA 40) liter.
Sizes (width x base x height): 250 x 80 x 155 (MA40) cm.
Weight: 180 Kg.
1 motors of 1/8 C.V. 220 V mono-phases.
Power consumption: 1 Kw
Needs compressed air.
Air consumption: 190 lt/min
Recommended work pressure: 6 bar
Note: Our company reserves the right to make changes in technical specifications of the machines as deemed necessary without prior notice.
