ODM-VS-8 AUTOMATIC LINEER VOLUMETRIC SERVO DRIVEN 8-NOZZLES FILLING LINE 100ml-1000ml

Category
:
FILLING, CAPPING, LABELING, SLEEVERS MACHINES (PRO)
Product Name
:
ODM-VS-8 AUTOMATIC LINEER VOLUMETRIC SERVO DRIVEN 8-NOZZLES FILLING LINE 100ml-1000ml
Product Description
:

Request a Bid
Required Field:19 meter x 5 meter
Total Electricity Consumption:25 kW 380 3 Phase 50 Hz
Origin:TURQUE
Capacity:3000-4000 Bph/Heure
Number of Employees:2
Required / Air, Water and Fuel:8 Bar Air Presseure 1000 Lt/Heure
Products
AUTOMATIC PLASTIC BOTTLE UNSCRAMBLING MACHINE (SDTM-H 1)
System: Linear
Working principle: Non-stop with belt
Construction: Stainless steel chassis, all surfaces are AISI 304
Conveyor: 82 mm PVC Crawler 2000mm
Conveyor Height: standard 950 mm (+ -50mm)
Packing: Plastic (min: 25 max: 120mm width is appropriate
Bottle Download Volume: 800,000 cm3
Control Unit: Omron PLCs in the Control System
Electrical Requirements: 380V 50Hz 3 Phase
Energy consumption: 2.8 kW
Air Supply: 6-8 bar
Air consumption: 200 Lt/min
Dimension (WxLxH): 1600xx1900x2300 mm
Weight: 700 kg
Capacity: 4000-10000 pcs / h (depending on bottle type)
Advanced easy to use Omron PLC CONTROL SYSTEM
Omron brands touch-operated the LCD operator panel
Stop feature when the exit is full
Infinitely variable electronic speed control
Easy to change in a short time
Maintenance and service ease
To ensure work safety and environmental cleaning, machine sensors (photocells) used on enclosed casing in CE norms. SICK, KYENCE
The pneumatic materials used on the machine SMC FESTO
All reducers are used on the machine is brand Yılmaz Redüktör
All 304 and 316 stainless steel materials which used on the machine have their licenses.
Soft start and stop feature
Automatic setting prescribed by existing products
Fast switching between bottles
Optional
Bottle cleaning air
HEPA air purification filter
Air consumption: 700 l / min
Note: Our company reserves the right to make changes in technical specifications of the machines as deemed necessary without prior notice.
Made in Turkey
ODM-VS-8 AUTOMATIC LINEER VOLUMETRIC SERVO DRIVEN 8-NOZZLES FILLING (ODM-VS/8)
System : Linear
Working System : Volumetric
Construction : Steel construction, all visible parts AISI 304 quality, the parts which contact with the product AISI 316
Conveyor : 82mm PVC conveyor belt, ~4.000 mm
Conveyor Height : Standard 950 mm (±50mm)
Bottle : Glass, Plastic, PET, PE
Control System : Beckhoff  brand PLC System
Nozzle : 8
Cylinder : 8 pieces (SCHOTT brand glass or AISI 316)
Cylinder Volume : 500 cc -1000 cc – 2000 cc
Filling Adjustment : 100 cc-1000 cc / 1000 cc – 2000 cc
Weight Adjustment : Automatic adjustable on touch screen
Filling Tank : ~110 lt. (sensitive level controlled)
Filling Accuracy : ± %0,3
Electrical Requirements : 380 V, 50 Hz, 3 phases
Energy Consumption : 2,5 kW
Air Requirements : 6-8 bar
Air Consumption : 300 lt./m
Dimensions (W*L*H) : 1200x1500x2800 mm (conveyor ~4.000 mm)
Machine Weight : ~1200 kg
Developed and easy usage Beckoff brand PLC Control system
Beckoff brand touch screen LCD Operator Panel
Three directions Rotary Valve (suitable for food)
Automatic CIP System – Clean in place (with AISI 316 pressure controlled filling tank) (optional)
~110lt Sensitive pressure level controlled liquid tank fixed over the machine (by CIP)
Easily operation and quick setting (reloading) for each different bottle parameters on PLC control panel
Machine stops when entry empty and exit busy
Easy service and maintenance
Compare with mechanical system %40 more output and silent working
CE standard Machine Protector for working security and keep clean the environment
Note: Our company reserves the right to make changes in technical specifications of the machines as deemed necessary without prior notice.
Made in Turkey
PROTECTION CABINET (M.M 3)
[Safety of switching, the machine stops when the doors opened]
Note: Our company reserves the right to make changes in technical specifications of the machines as deemed necessary without prior notice.
Made in Turkey

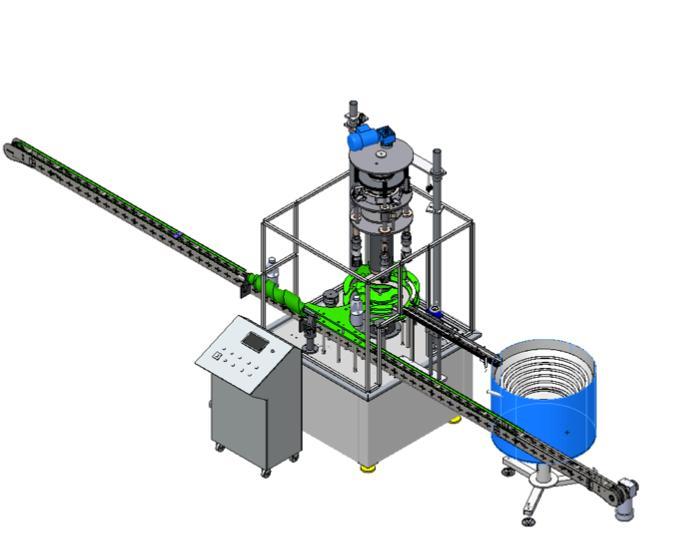

AUTOMATIC ROTARY TYPE 4 CAPPING HEADS CAPPING MACHINE with AUTOMATIC CAPS FEEDERS (ROKM-4)
(Adjusted for one type cap.)
System:Rotary
Operation: Rotary and perpetual motion
Construction: Chassis steel, AISI 304 and all visible surfaces coated aluminum parts
Conveyor width & length : 82 mm Asetal PVC conveyor belt, ~ 3500 mm
Conveyor Height : Standard 950mm (±50mm))
Control Unit : OMRON/DELTA brand PLC
Sample Bottle : Glass, Plastic, PET, PE
Capping : Plastic Screw Type Cap
Capping Replacement : With clips -Magnetic or Air Motor
Capping Head : 4 pieces
Electrical Requirements : 3 phase, 380V, 50Hz
Energy Consumption : 3kW
Air Requirements : 6-8bar
Air Consumption : ~ 300 Lt/min
Developed and easy usage OMRON/DELTA brand PLC Control system
OMRON/DELTA brand touch screen LCD Operator Panel
With elevator and cap chooser automatic cap feeding
Machine stops when entry empty and exit busy
Electronic adjustment without level
East changeable spare parts
Easy service and maintenance
CE standard Machine Protector for working security and keep clean the environment (Optional)
Note: Our company reserves the right to make changes in technical specifications of the machines as deemed necessary without prior notice.
Made in Turkey
PROTECTION CABINET (ROKM-4)
Note: Our company reserves the right to make changes in technical specifications of the machines as deemed necessary without prior notice.
Made in Turkey

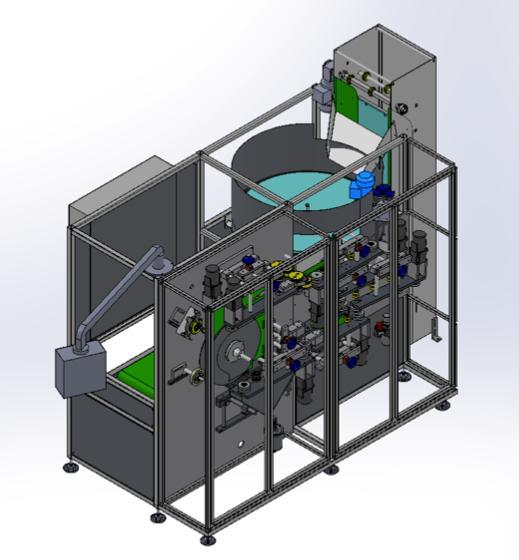

AUTOMATIC FRONT-BACK FACE & WRAP-AROUND SELF ADHESIVE LABELLING MACHINES (OTEM-S2/R)
System: Automatic Linear
Construction: Anodized aluminum and stainless steel AISI 304
Conveyors: ~ 2.500mm, 82mm PVC tracked
Conveyor Height: Standard 950mm (± 50mm)
Packaging: glass, plastic, PET, PE, metal
Packaging Width / Diameter: 20mm-130mm
Module: 2 (right and left)
Modular Speed: 30m / min
Control Module SERVO Engine
Label: Self-adhesive label (sticker)
Label height: 20mm-150mm / 20mm-230mm (the only option available on the machine)
Label Roll Inner Diameter: 74mm
Label Roll Outside Diameter: 300 mm (maximum)
Electrical Requirements: Mono-phase, 220V, 50Hz
Energy Consumption: 1,7kw
Air Supply: 6-8b is (if necessary)
Air Consumption: 300lt / min (if necessary)
Size (Width-Length-Height): 1.700-2.500-1.650mm
Weight: ~ 350kg
Reducers: Yilmaz Gear
Complete stainless steel electrical panel
Advanced easy-to-use Omron brand PLC control system
Omron brands touch the LCD operator panel
Infinitely adjustable speed packaging from opener
Infinitely adjustable speed and width corrective package
Infinitely variable speed high pressure belt
Infinitely adjustable speed disc printing tape
XYZ-axis (three-way) adjustable labeling module
Stop feature when the label ends
Ability to operate a single module
Maintenance and service ease
Note: Our company reserves the right to make changes in technical specifications of the machines as deemed necessary without prior notice.
Made in Turkey
AUTOMATIC CARTON PREPARING AND OPENING MACHINE (KAM)
The bottles will be opened
Model: KAM
Pneumatic movement
Closed box cassette adjusted to parcel size
Mechanical and Pneumatic suction bag opening system
Parallel to the width of the package
Automatic operation with box control photocell at exit 380 V - 2kW
Air requirement 6At, 800lt / min
System controlled by PLC (Omron)
Can form 4 different sized cardboard box with machine
Electrical connection 380 V, 3 phase, 50 Hz, duty cycle 24 V
Note: Our company reserves the right to make changes in technical specifications of the machines as deemed necessary without prior notice.
Made in Turkey

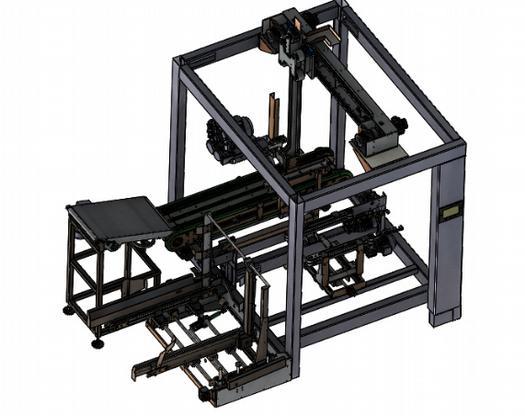

AUTOMATIC CASE PACKER MACHINE (KAM)
Multi-box filling stations
Ergonomic design 4 Axis servo
Multiple product sorting
Integrated operation with PACKAGE OPEN
90-degree head
Applies to RSC box
Double guided head
Designed for high speed operation
Quick format exchange
Use of corrugated cardboard
Box filling
Chamfering of different sizes of packages in the same machine Easy mold changing and fine tuning
Bottle holding device will not damage the safety belt
Carton counting system
PLC Control System (Omron)
Fault and fault point can be seen on the digital display
Easy maintenance of pneumatic components
Maximum air pressure of 6-8 bar
Machine is suitable for autocontrol system
Note: Our company reserves the right to make changes in technical specifications of the machines as deemed necessary without prior notice.
Made in Turkey
AUTOMATIC CASE ERECTOR MACHINE (KAM)
Manual measure for different parcel measures
Automatic, box top cover closed
With side dragging strap. A total of 2 traction belt speeds of 21 meters / minute
2 motors (0.13kw / piece)
Alta and K12 taping dispensaries on the top. (There is K11 tape dispenser support.)
Height adjustable aluminum feet between 480-820mm for working height
Epoxy oven painted chassis
Gates safety swichli
Speed regulator on top cover closing pistons
2 step piston top cover closing with piston
Emergency stop button
24 hour work performance.
CE standards.
Electrical connection type: 380V - 50Hz - 3 Phase + Ground
Total motor power: 0.26kW - 1.08 Amperes
Air connection: 6 bar. Consumption: 2 liters / cycle (under normal weather conditions)
Note: Our company reserves the right to make changes in technical specifications of the machines as deemed necessary without prior notice.
Made in Turkey
BOTTLE TRANSITION PIECE (Additional for each Bottle) (SDTM-H-G)
(Additional for each Bottle)
Note: Our company reserves the right to make changes in technical specifications of the machines as deemed necessary without prior notice.
Made in Turkey
FOR ROTARY TYPE 4 CAPPING (Additional star group and helix for each Cover) (ROKM-A)
Additional star group and helix for each Cover
Note: Our company reserves the right to make changes in technical specifications of the machines as deemed necessary without prior notice.
Made in Turkey
FOR CASE ERECTOR Carrier group (Additional for each Case) (KOM-a)
Additional for each Case
Note: Our company reserves the right to make changes in technical specifications of the machines as deemed necessary without prior notice.
Made in Turkey
FOR CASE ERECTOR Lane and sore (Additional for each Case) (KOM-b)
Additional for each Case
Note: Our company reserves the right to make changes in technical specifications of the machines as deemed necessary without prior notice.
Made in Turkey
