i. APPLICATION: 3 WORKING MODES
a) Mode 0: Integrate with twin VFFS machine: refers to individual A, B weigher running with separate VFFS machines, the output of A, B request dump signal and discharged signal was control separately.
b) Mode 1: Integrate with a high speed VFFS machine: A, B weigher integrate with a high speed VFFS machine, A signal control A & B weigher working alternately, ready weigher will dump first and then the other go head continuously. B signal is not working. Max speed: 130bpm
c) Mode 2: mixture weighing. Weighing 2 different products separately and drop to a VFFS machine for mixture. A signal control request and dump signal, B signal is not working.
ii. FEATURES:+--
a) New high integration A/D modular adopts CAN bus technology, more efficient and stable;
b) Apply with standard industrial control panel;
c) High speed asynchronous dump function;
d) 200g or 1000g calibration is available;
e) Select and check different program on running menu without password, user-friendly;
f) Intelligent alarm diagnosis indicate failure correctly and timely, which will save users’ time to solve problem;

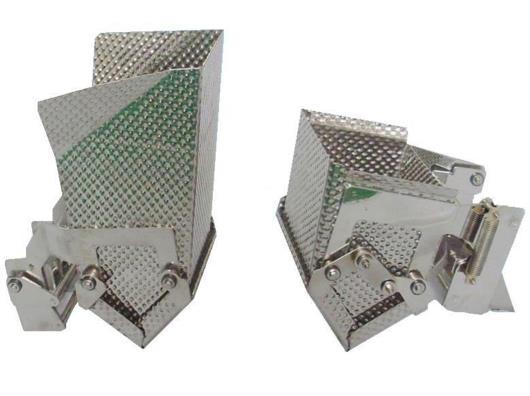

g) High modular design ensure easier for maintenance, test and installation.
MODEL JW-A20
Product: Chips, Nuts, etc
Weighing range (grams) : 10-200g
Accuracy (grams): 0.1-1.5g
Speed (bags/min): 30-130 bpm
Weigh Hopper Volume : 1.6L
Control panel: 10.4〞Touch Screen (EVIEW)
Driving system: Step Rotor
Power Requirements: 220V/50/60HZ 10A/1000W
Option : Timing HP/Dimple Plate, etc
Packing Dimension: 1861L*1861W*1500H (mm)
Gross/Net Weight(kg) : 850/820KG
Note: Our company, if requires, may make changes in technical specifications of machine without prior notice.
Made in China
