PE-240 GR CRATE MOULD 495 X 300 X 90 MM

Category
:
PLASTIC INJECTION AND BLOW MOULDS (PRO)
Product Name
:
PE-240 GR CRATE MOULD 495 X 300 X 90 MM
Product Description
:
Safe mold experience over 1000 mold is safe, Manufacturing a multiple-eyed safe and dies, The optimized cycle time, Hydraulic and mechanical core moving dies, High performance molds, Low maintenance requirement when

Request a Bid
Required Field:-
Total Electricity Consumption:-
Origin:TURQUE
Capacity:Temps De Cycle: 40 secondes
Number of Employees:-
Required / Air, Water and Fuel:-
Products

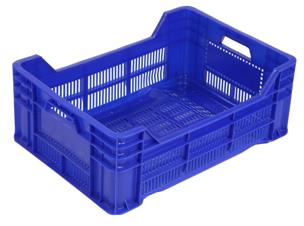

CRATE MOULD495 X 300 X 90 MM (PE-430-30)
Measures of Product: 495 x 300 x 90 mm
Material: HDPE
Cavity: 1
Mold Base Steel: 1.1730
Steel Cavity: DIN 1.738 - Thyssen Krupp Germany
Hardness Cavity: HRC35-38
Acıer MâLe: DIN 1.738 - Thyssen Krupp Germany
Hardness: HRC35-38
Finish: Brilliant
Insertos Y Correderas <10 Kg -> 10 Kg: H13 (DIN 1.2344) tempered by HRC42-45- Same steel as cavity and male
  Injection Type: Hot Channel - Direct Input
Injection Points: 6
Spare Parts: DME
Expulsion: Per plate with hydraulic system
Cycle Time: 40 seconds
Note: Our company reserves the right to make changes in technical specifications of the machines as deemed necessary without prior notice
Made in Turkey
