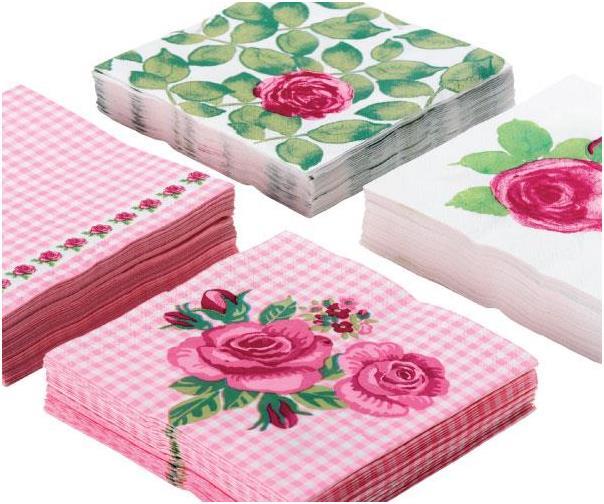

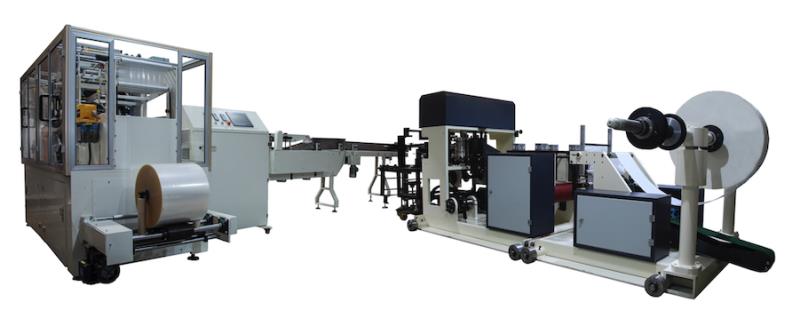

EVA-PM mode paper napkin machines cut raw paper and fold it as square or rectangular paper napkin. Embossing temperature remains constant at designated degree through applied resistance system, and it is ensured to maintain swelling, softness and quality of emerging product. EVA-PM Paper Napkin Machine has automatic sheet counting device. High performance and counting products accurately are among its prominent features. EVA-PM Paper Napkin Machine has dual-color printing system and it can be also operated without printing upon request
UNWIND STAND
1. Size of original paper: Max. Roll diameter is 1400mm, 13-225g/m2, 1-2-3 layers pure wooden pulp tissue paper, inner diameter of paper core is 76.2mm , Maximum 500 kg roll .
2. 1 Unwind with auto loading .
3. 2 Jumbo roll can be loaded ( 1 spare for fast operation )
4. Auto tension control
5. Auto web guide ( edge control )
6. Individual drive unwind
EMBOSSER UNIT
1. Steel Embosser diameter 190 mm
2. Paper Embosser Diameter 190 mm
3. Embosser pressure Pneumatic
4. Booster Pressure increase
5. Pressure control Automatic
6. Embosser protection Pneumatic
7. Edge control
8. Engraved laser
FOLDING UNIT
1. Folding head diameter 190 mm
2. Folding Size 300 x 300 mm ( Can fold also 300 x 2800 & 300 x 320 mm )
3. Folding Head aluminium
4. Folding capacity 2000 napkins / Min.
5. Auto control for emergency stop
PRINTING UNIT
1. The number of printing units: 2 units (mobile printing units)
2. Print area: 300-300 mm
3. Print System: Pressure plate (flexo plates)
4. Printing Machine Speed: 200 m / min.
5. Roller: Analog steel
GENERAL SPECIFICATIONS
1. Bearings SKF
2. Pneumatic parts PEMAKS
3. Electronics LG – SCHNEİDER
4. Aluminium quality 7075
5. Auto transfer Finger system
6. Control System Electronic ( all units work with individual drive / motors )
7. Power 5 .5 KW + 1.1 KW
8. Air consumption 150 Lt / minute
9. Air Pressure 8 bar
10. Web guide ( edge control 2 unit )
11. Auto alarm system for problems on machine
+
PACKING UNIT
Automatic Product Management: Transfer of paper napkins through band, easy and convenient connection with the production line, Reduction in Employee Expenses: 3 -4 paper napkin machines can be integrated to 1 napkin packaging machine, thus it causes saving at least 5-6 workers.
Stepless speed regulation system, touch screen and control system Automatic monitoring to prevent product and film loss through photo-electric sensor High automation, professional and high operating efficiency, low waste Ability to operate with various packaging sizes, different packaging sizes can be changed quickly. Perforation can be applied onto the paper napkin packages through perforation system. There are 2 types of control systems which can be selected by the user: Stepped Motor Control and Servo Motor Control
Tissue sizes:
L: 100~230mm
W: 100-165mm
H:40-120mm
Packing speed: 60 bags/min
Air supply: 0.5-0.8MPa
Machine weight: 3500kg
Outer dimensions
(LxWxH): 3560x5885x1925(mm)
Heating power: 3.6kw
Motor power: 5.4kw
Max packing size :(LxWxH): 230x150x100(mm)
Working noise ≤78dB
Packing film: CPP, or any other laminated film.
Power supply type: 380V, 50Hz
is including installation of machines in customer’s factory
Machine is painted by water and corrosion resistant two-component epoxy primer and paint.
Note: Our company reserves the right to make changes in technical specifications of the machines as deemed necessary without prior notice.
Made in Turkey
