PRO-6S SCREWED POWDER FILLING WITH SERVOMOTOR CONTROLLED (6 LINES)

Category
:
STIC PACKAGING MACHINES (PRO)
Product Name
:
PRO-6S SCREWED POWDER FILLING WITH SERVOMOTOR CONTROLLED (6 LINES)
Product Description
:
The machine pulls the paper and slice it ,fold and glues.The paper which is folded and glued according to the weight of the product is pulled continuously by jaws.The product which is sent at the same time from the weight part is poured into the paper.Jaws cut the paper . After this stage packages are fallen on the conveyor

Request a Bid
Required Field:60 m2
Total Electricity Consumption:10 kW – 380 Volt / 3 Phase 50 Hz
Origin:TURQUE
Capacity:250 pcs /min
Number of Employees:1
Required / Air, Water and Fuel:6 Bar / 200 Lt Mun
Products
SCREWED POWDER FILLING WITH SERVOMOTOR CONTROLLED (6 LINES) (PRO-6S)
The packaging machines fully automatic with servo-controlled are specially designed in order to make three edge glued stick type packages for instant use of a combination of coffee, sugar and milk powder,  three in one, ready-made disposable packages, and to pack without manual interference

TECHNICAL FEATURES: Model PRO-6S
Electronic Driver: OMRON Symac NJ
Servo Motors Omron Symac Nj
Omron PID Temperature Controller;
Omron 7 inches
Japanese SMC Pneumatic Components
Other supplies: Shineder German
All Bearing SS 304
Chrome Body S/S 304
Capacity (per min.):300
Max Weight:7 g
Min Weight:3,5 gr
The product length:50 – 140 mm (Adjustable)
Package Diameter:10 mm
Package Flange Width: 17 mm
Installed Electricity Power:10 kw
Average Electricity Power:7 kw
Compressed Air Consumption: 6 bar 200NI/min.
Lines: 6  (More OptionsPlease contact us for)
Width:1450 mm
Length:4200 mm
Height:1500 mm
Min.Bag Size (WidthxLength):25mm/70mm
Max.Bag Size (WidthxLength):45mm/150mm
Main Frame: Stainless Steel
Weight(App): 600 kg
Elektric C. Supply V.:320V / 7Kw
Air Conception: 6 Bar
Roller Inner Diameter: 70-76 mm
Roller Diameter: Max. 300 mm
Filling/Product Grammage: 6 LINES SCREWED POWDER FILLING- WITH SERVOMOTOR CONTROLLED

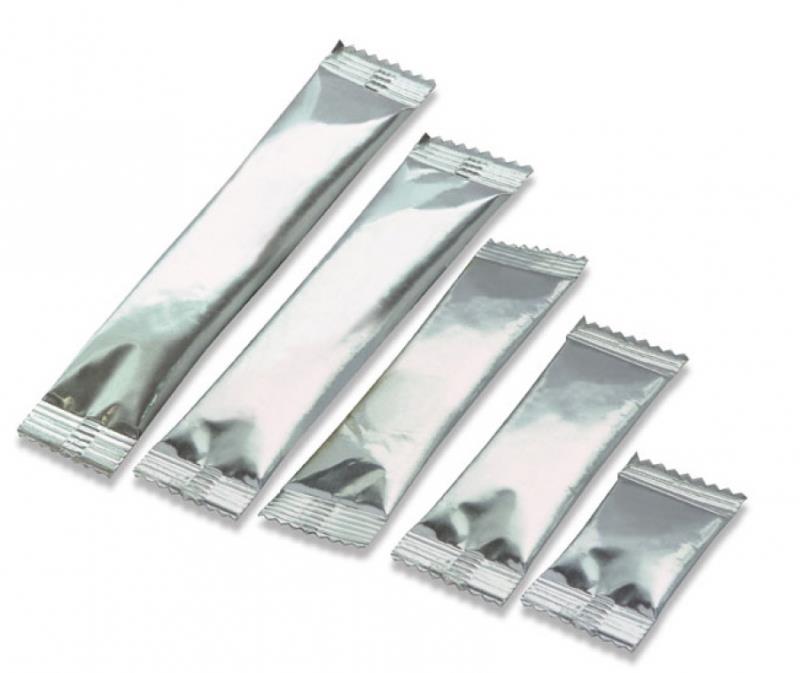

Pack Type:Stick
Note: Our company, if requires, may make changes in technical specifications of machine without prior notice.
Made in Turkey
FEEDING SCREW CONVEYOR (Optional Feature) (APH)
The Tubular Screw conveyor can lift and feed several kinds of powder and granule type material. This conveyor can combine with our packaging machine to feed the material automatically.  Also can be used separately. Except the motor and the bearing, other parts are made of stainless steel.
Note: Our company, if requires, may make changes in technical specifications of machine without prior notice.
Made in Turkey
CONVOYEUR DE PAQUET (Optional Feature) (APB)
Takeaway Conveyor improves the productivity of packaging operations by simply moving filled bags from the packaging location up to bench height, or to another location.
Note: Our company, if requires, may make changes in technical specifications of machine without prior notice.
Made in Turkey

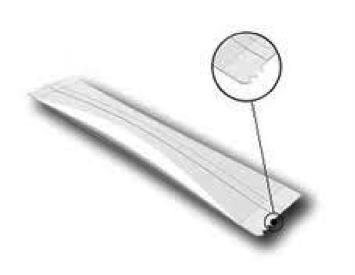

TEAR NOTCH | EASY OPEN BAG (Optional Feature) (APÇ)
The tear notch in our bags allow them to be easily opened by the customer.
Note: Our company, if requires, may make changes in technical specifications of machine without prior notice.
Made in Turkey
