1-Mixer:
a) 150 kg capacity granule, dyes and fragrances mixer,
b) Soap contact surfaces 304 stainless (chrome)
c) Mixer motor power of 7.5 kW.
d) The engine and reducer are used Yilmaz Reducer.
2- Feeding Belt:
a) 300 cm length, 41 cm width, 63cm in height,
b) The height is 400 mm intervals of 40 mm used in the white color palette,
c) The motor power is 0,75 kW.
d) The motor and gear reducers are used Yilmaz Reducer.

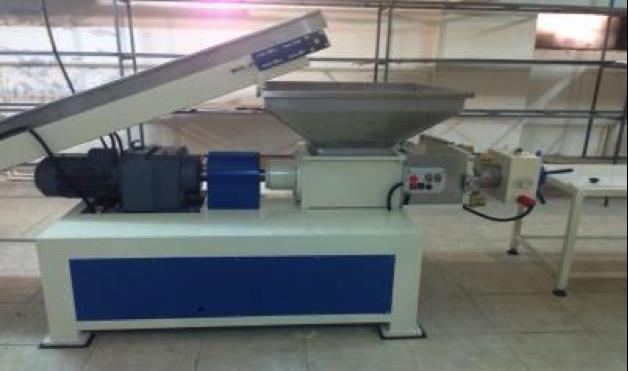

3- Double Headed Single Storey Extruder:
a) It has a capacity of 800 kg per hour,
b) Screw diameter 200 mm * 800 mm,
c) Screw sleeve shirt (internal wall) in water-cooled and used stainless steel,
d) All surfaces in contact with Soap 304 stainless (chrome)
e) Screw wire special aluminum 171 alloy
f) Conical cap (stainless) soap thermostatic heater output is 1800 watts
g) Perforated Header 304 stainless (chrome) is used. The header is a blade front. Hole diameter is 9 mm.
h) Motor power is 7.5 kW, the engine speed control device
ı) The motor and gear reducers are used Yilmaz Reducer
4- Pneumatic Guillotine Cutter:
a) 40x80 air piston,
b) Height adjustment,
c) Cliche
d) pneumatic foot pedal
5-Pneumatic Stamping Machine:
a) Pneumatic manual control,
b) 50x100 Air pistons,
6-Clipboard:
Electricity boards of all machines.
7- (+) Body Cooling Chiller:
a) +10 to +15 degrees cooling,
b) the engine power of 1.1 kW
8 (-) Mold Chiller Cooling:
a) from 0 to -5 degree of cooling,
b) the engine power of 1.1 kW
The machine is painted with water and corrosion resistant two component epoxy primer and dyes.
Note: Our company can make changes without notice in the specifications of the machine when it deems necessary
