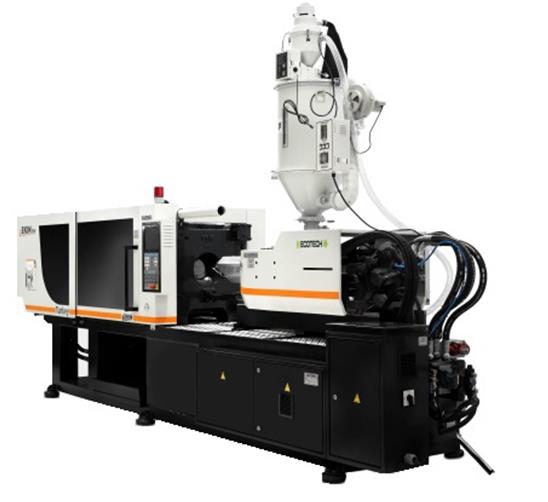

MECHANICAL PROPERTIES
Clamping Force: 210T
Injection Weight: 450 g (PS)
Distance between columns: 530 x 530
Screw Diameter: 50
INJECTION UNIT
Machine Model A B C
Screw Diamater mm: 40 50 55
Screw L/D Ratio L/D: 23,3 21 19
Shot Size cm³: 397 490 593
Injection Weight - PS g: 360 450 540
Injection Rate g/s: 145 180 236
Plasticizing Capacity g/s: 20 25 29
Injection Pressure MPa: 220 185 150
Screw Speed rpm: 0-225
Screw Storke mm: 250
CLAMPING UNIT
Clamping Force KN: 2100
Toggle Stroke mm: 510
Space Between Tie Bars mm: 530 x 530
Max. Mould Hight mm: 520
Min. Mould Hight mm: 160
Ejector Stroke mm: 135
Ejektor Force KN: 53
Ejektor Number PC: 5
GENERAL DETAILS
Max. Pump Pressure Mpa: 14
Pump Motor Power Kw: 22
Heater Power Kw: 13,5
Machine Dimension (LxWxH) m: 5,7 x 1,4 x 1,9
Machine Weight T: 6
Oil Tank CapacityL: 400
Fixed Plate Flange Dimensions Dia: 160
MACHINE FEATURES
Electronic Control System
10.4 Inch Color Screen – MİKROSTAR – TURKEY
Hydraulic motor – INTERMOT - ITALY
Valves- YUKEN
One Piece Long Arm and Clamp Fork Arm Structure and Strength
Linear way system injection group
8509 Screw nitriding steel sleeve and long-term gas nitriding was carried out for 96 hours.
Surface hardness 62 ∞ 65 HRC
Ring 2601 rocket from cold work tool steel and tungsten carbide wear surfaces are coated with the material. Linear Potantiometers – OPKON - TURKEY
Switchgear Equipment MOELLER – GERMANY
Power supply, sensor and relays are OMRON brand
Mechanical Safety System
Valve coils valves 24V DC and high permeability is used.
Automatic reductor mould adjustment by hydraulic motor control.
High sensitive mould protection
Charging sensor - OMRON brand
Automatic Central Lubrication System
Piston lubricate that effect every point.
Hydraulic Core App
T -Channel Clamping Plates
8 Piece core open - 6 Piece core off option
Suck Back Function
4 - Pressure Position Speed Control for Injection Stage
3 Step Speed - Pressure to Hold
Multiple Ejector Number of Strokes
Moving in cages Couples Swich Security System – SCHNEIDER Brand
Mould connection exit by reductor
Emergency Stop Button
In the front and back side 380 V – 240V inlets
Oil Level Indicator
Oil Temperature Thermometer Clock indicates
Suction Line Oil Filter
Multi- Input and Output Indicator Tube Flowmeter - EKIN MAKINA
With powerled and buzzer warning light
Solid State Relay heaters
Phoeniz contact connector system
Slideway for hopper and material tank
Fast page jumping menu
500 mould memory
Servo motor PHASE ITALY
Pump SUMITOMO JAPAN
Servo Drive DELTA TAIWAN
Pressure sensor KAVLICO GERMANY
SPARE PART LIST
12 set mould fixing pad
6 set machine level pad
1 pcs Mould flange
2 pcs heater
4 pcs nozzle heater
1 pcs ejector pin
1 pcs nozzle key
1 set screw tip
SHD 75 Hopper + SAL 300C Loader (included)
Energy saving system (SERVO) (included)
Machine oil ( Not included)
Machine is painted by water and corrosion resistant two-component epoxy primer and paint.
Note: Our company reserves the right to make changes in technical specifications of the machines as deemed necessary without prior notice.
Made in Turkey
