BSC-L 2023 VERTICAL PACKAGING SYSTEM + VOLUMETRIC DOSAGE SYSTEM (500-5000 gr.)

Category
:
PACKAGING VERTICAL SYSTEMS (EKO)
Product Name
:
BSC-L 2023 VERTICAL PACKAGING SYSTEM + VOLUMETRIC DOSAGE SYSTEM (500-5000 gr.)
Product Description
:
Capacity of packaging is between 500 gr - 5000 gr. On the machine;  Volumetric Filling Unit, substituting legumes such as lentils, beans, rice products, like sesame seeds, black cumin, pine nuts, thyme, granular seasoning products, sunflower seeds, peanuts, roasted chickpeas, dried nuts

Request a Bid
Required Field:60 m2
Total Electricity Consumption:5 KW – 380 Volt / 3 Phase 50 Hz
Origin:TURQUIE
Capacity:50 Paquets / Minute
Number of Employees:1
Required / Air, Water and Fuel:6 Bar- Air Presseure 400 L/Min.
Products
VERTICAL PACKAGING MACHINE (BSC-L 2023)
İt is the middle size machine of BSC model. İt is advanatageous for making 440 mm wide and 590 mm long packs. Maximum installable bobbin width is 590 mm. Because of its small body size it does not occupy Large spaces at workplaces
Chrome Body S/S 304
Servo Motor
Ce Security
Automatic Adjustable Tower Film System
Air Bobbin Fixing
Standup Package Fan System

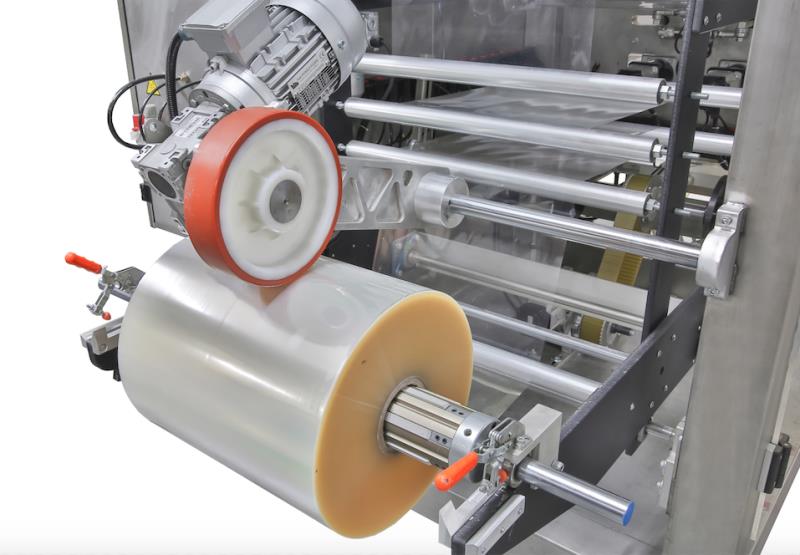

Film Tensioning- Warp System
Transparent Fiber Glass  Cover
7'' Touch Screen
Mobile Neck  - Pipe
Auto-Film Centering System
Electronic Driver:  OMRON Symac NJ
Servo Motorlar: Omron Symac Nj Serisi
Omron PID Temperature Controller
Omron 7 Inches From Japan
Pneumatics Component: SMC from Japan
Other Consumables: Shinder From Germany
All The Bearing Should Be SS 304


TECHNICAL SPECIFICATIONS: Model  BSC-L 2023
Maximum Packaging Speed (package/ minute): 50 package/ minute
Package Length (min. - max.): 100 - 590 mm
Package Width (min. - max.):  100-440 mm
Diameter of Film Bobbin (max.) : 400 mm
Width of Film Bobbin: 520 mm
Package Type: pillow, Bendy and Standup packages
Thickness of Film: 0,04--0,09 mm
Air Consumption (m / minute) :  0,8 Mps 0,3 m / min
Voltage: 3,5 KW 220 V 50 / 60 Hz
Net Weight : 1200 Kg
Packaging Materials: Polypropylene, polyethylene, All Films With Lamination, Barrier Film, Water - Soluble film
Dimensions  of Machine
Width : 1870 mm
Length: :2600 mm
Height : 1915 mm
Note: Our company, if requires, may make changes in technical specifications of machine without prior notice.
Made in Turkey
PERFORATION ON PACKAGE (Optional Feature) (2023-1)
Note: Our company, if requires, may make changes in technical specifications of machine without prior notice.
Made in Turkey
NITROGEN PRACTICE INSIDE PACKAGE (Optional Feature) (2023-2)
Deterioration process of product is delayed by means of pumping gas inside product.
It prevents the creating of microorganisms.
It prevents the crumpling of package and protects sensitive products against all damages.
It prevents fermentation of the product as well as preventing or delaying of oxidation reactions.
It prevents appearing of undesirable tastes and diffusing of undesirable odors.
Applicable areas ; milk powder, coffee, chips, nuts and dried fruits etc..
Made in Turkey
Note: Our company, if requires, may make changes in technical specifications of machine without prior notice.
POLYETHYLENE SEALING SYSTEM (Optional Feature) (2023-3)
Note: Our company, if requires, may make changes in technical specifications of machine without prior notice.
Made in Turkey

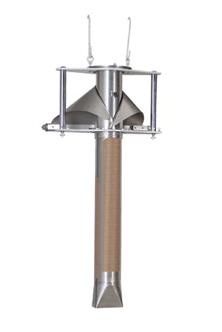

ADDITIONAL PIPE NECK (Optional Feature) (2023-4)
It is used to make packaging in pillowpack type according to product to be packaged and basis weight.  Extra neck pipe is necessary to meet the requirements related with different basis weight and package width.
Note: Our company, if requires, may make changes in technical specifications of machine without prior notice.
Made in Turkey
THERMAL TRANSFER OVERPRINTERS (Optional Feature) (SVM32-50-I)
The high performance, low cost thermal transfer printers are versatile enough for printing fixed and variable text, data and graphics. It is ideal for reproducing bar codes, real time, sell-by dates, batch numbers, prices, source codes and much more. Two component models of brackets (Intermittent & Continuous)  can be easily integrated to the machines such as vertical and horizontal form-fill-seal systems, primary labellers, thermo formers and overwrapping equipments. The units are suitable for all intermittent and continuous applications within the food, pharmaceutical cosmetics and automobile spare parts industries has the capability to code all kinds of 1D barcodes and 2D datamatrix codes.

TECHNICAL SPECIFICATIONS
* 32mm x 50mm Intermittent model print area.
* 600 meter ribbon capacity.
* Resolution 300 dpi (12 dots / inch)
* Print Speed up to 400 mm/sec.
* 4.3" touch panel color control screen.
* 90 °, 180 °, 270 ° rotate features of the templates.
* Memory: 5000 Templates can be stored in the control screen memory.
* Power Supply: 110/220V 50/60 Hz.
* Programming: Real Date/Time, Text, 1D Barcode, 2D Barcode, Logo, Counter (Serial No), Shift Code, Shape, Currency.
* Barcode Types: 1D Barcodes (EAN-13, EAN-8, CODE128, CODE39, ITF, 2of 5, ITF 14, CODABAR, UPC-A, UPC-E), 2D Barcodes (Datamatrix, QR Codes, PDF 417, Aztec code Semacode, Macro PDF 417).
* Communication: RS-232 (PC), LAN, USB
Note: Our company, if requires, may make changes in technical specifications of machine without prior notice
Made in Turkey
PACKAGE CONVEYOR (Optional Feature) (CB1000)
It is used to carry the packaged products by machine to packing unit after they are taken out from machine.Standard model carries the products that are taken out from machine 200 cm forward and a height of 80 cm.
Note: Our company, if requires, may make changes in technical specifications of machine without prior notice.
Made in Turkey
VOLUMETRIC DOSAGE SYSTEM (VW6-L)
It's a filling system adjusting the amount of product per volume with six telescopic containers. Ideal for granular products. container volume can be adjusted manually. assembly, disassembly and cleaning is easy.  Different volume can be set (approximately 30 %) interlaced by (telescopic) containers up to a certain level. but for products with very different volumes from each other (like pulses of 2 kg. and  5 kg.) groups of different volumetric container sizes are used.

TECHNICAL SPECIFICATIONS
Weighing range: 500-5000 gr. (depending to pulses )
Speed: 50 weighing / minute (depending on the product and the weight)
Power requirement:380V, 50Hz, Trifaze 0.37 Kw.
Accuracy:  % 1  (depending on the product and the dense)
Note: Our company, if requires, may make changes in technical specifications of machine without prior notice.
Made in Turkey
ADDITIONAL VOLUMETRIC MEASURE GROUP (Optional Feature) (VW6O)
Note: Our company, if requires, may make changes in technical specifications of machine without prior notice
Made in Turkey

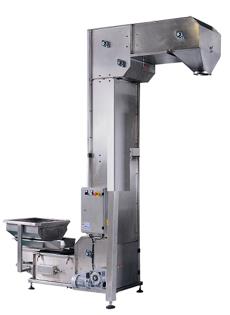

ELEVATOR AND VIBRATORY FEEDER (Optional Feature) (EL-4)
Carrying capacity:0-10 m³/hour (calculated when bucket is full at the rate of  %50)
Outlet altitude:4000mm
Power:2200W 380V/220 50Hz/60Hz Single/3 Phase
Chain Wheel: Japan KANA Stainless Steel  Chain Wheel
Bucket Material: PP Plastic (it may be used for food),
Capacity: 1.8 L
Control: Frequency Convertor Control
Weight: 400kg
Vibrator
Capacity of Vibrator: 0-10m³/h
Power: 220V/60Hz Single Phase, 250W
Frame Material: Stainless Steel  Chain 304
Capacity of Reservoir: 120L
Weight: 60 Kg
Note: Our company, if requires, may make changes in technical specifications of machine without prior notice
Made in Turkey
