Category
:
PAPER CUP MACHINES (PRO)
Product Name
:
OSF 200 FLEXO PRINTING MACHINE 2 COLOR
Product Description
:
Flexo printing and punching machine provides pan for paper cup. It can be used for 25 paper cup forming machine with high speed. This punching machine can show you very high performance and quality.
Required Field:5 m2
Total Electricity Consumption:30 KW / 380 V/ 3 PHASE
Origin:TURQUIE OU CORÉE
Capacity:25 Cup / Munite
Number of Employees:1
Required / Air, Water and Fuel:6 Bar Air Presseure 100L/Mun.
Products

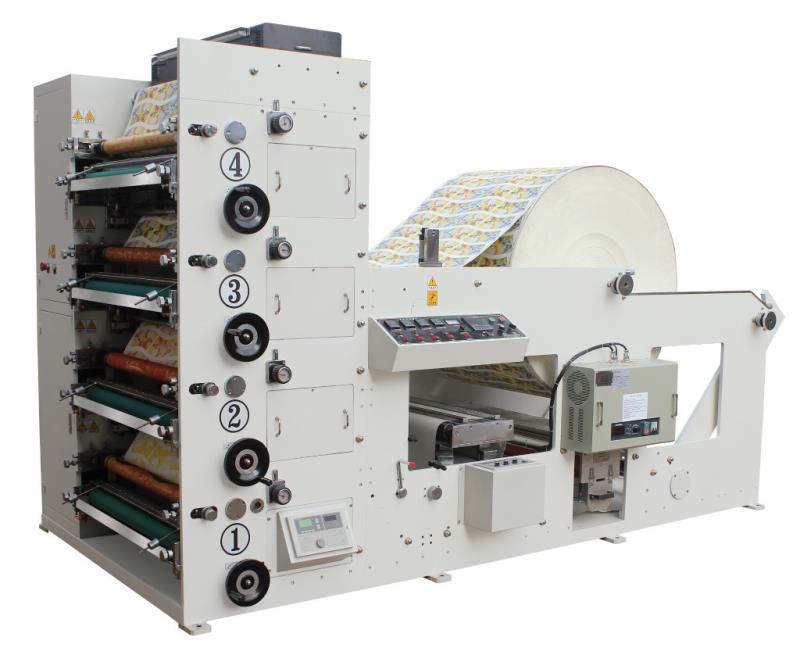

FLEXO PRINTING MACHINE 2 COLOR (OSF 200)
DESCRIPTION

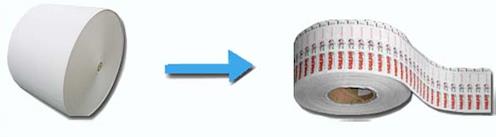

Printing & Punching(die cut blank) machine can print and die cut paper cup blank inline automatically. It is high Flexo printer with water base ink upto 2 color both print single PE and double PE paper.
We add Doctor blade chamber system, Anylux ceramic roller, Corona treatment, EPC and heater dry system so that printing quality is much better

FUNCTION
Paper cup print
Automatic
Simple & easy to operate machine
Compact & less space

FEATURE
Printing speed: 60m/min
Printing color: 2 color
Max. web width: 850mm
Max. printing width: 850mm
Max. feeding diameter: 1300mm
Max. rewinder diameter: 1300mm
Printing perimeter: 160-370mm
Registration accuracy: ±0.1mm
Voltage: 380v±10%
Dimension: 2900×1800×2650mm
Weight of machine: 3000kg
Machine is painted by water and corrosion resistant two-component epoxy primer and paint.
Note: Our company reserves the right to make changes in technical specifications of the machines as deemed necessary without prior notice.
