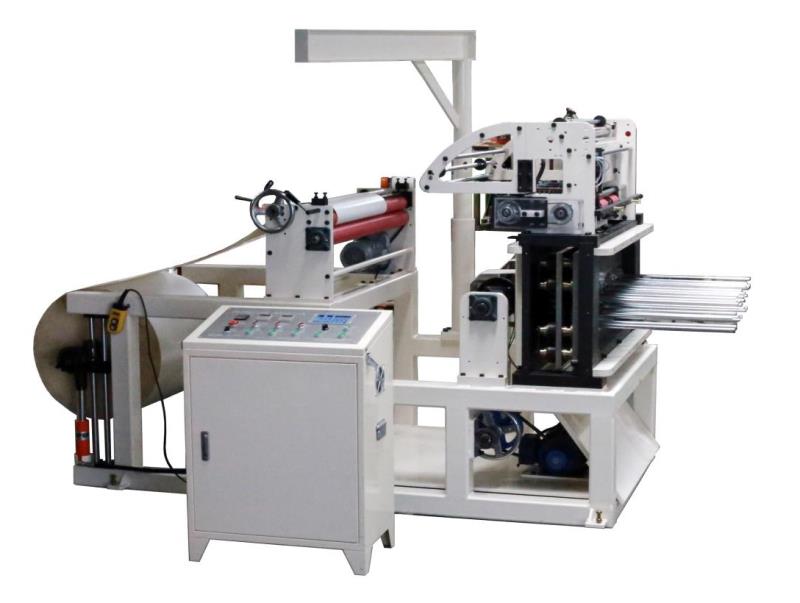

OSF 300 PAPER CUP PUNCHING MACHINE

Category
:
PAPER CUP MACHINES (PRO)
Product Name
:
OSF 300 PAPER CUP PUNCHING MACHINE
Product Description
:
Our blank punching machine provides pan for paper cup. It can be used for 25 paper cup forming machine with high speed. This paper cup punching machine can show you very high performance and quality

Request a Bid
Required Field:5 m2
Total Electricity Consumption:8 KW / 380 V/ 3 PHASE
Origin:TURQUIE OU CORÉE
Capacity:25 Cup / Munite
Number of Employees:1
Required / Air, Water and Fuel:6 Bar
Products
PAPER CUP PUNCHING MACHINE (OSF 300)
DESCRIPTION
Our blank punching machine provides pan for paper cup. It can be used for 25 paper cup forming machine with high speed. This paper cup punching machine can show you very high performance and quality.

FUNCTION
OSF-300 is designed to punch side blank for paper cup.
Easy and simple operation.
Excellent durability.
Quick and reliable maintenance service.

FEATURE
Machine Dimension: 2,400*1,350*1,800
Set Up Area: 4,000*1,600*2,000
Blank Dimension: 2.5oz ~3.2oz
Productive Quantity:500 ~ 1,500
Electric Power: 8 Kw
Main Motor: 220V – 3HP -1EA
Roller Motor: 220V – 1HP – 10:1 – 1EA
Servo Motor: 220V – 2HP
Weight: 2MT
Lift Motor: 2HP
Paper Width: 980MM/MAX
Machine is painted by water and corrosion resistant two-component epoxy primer and paint.
Note: Our company reserves the right to make changes in technical specifications of the machines as deemed necessary without prior notice.
EXTRA MOULD (OSF 300-E)
