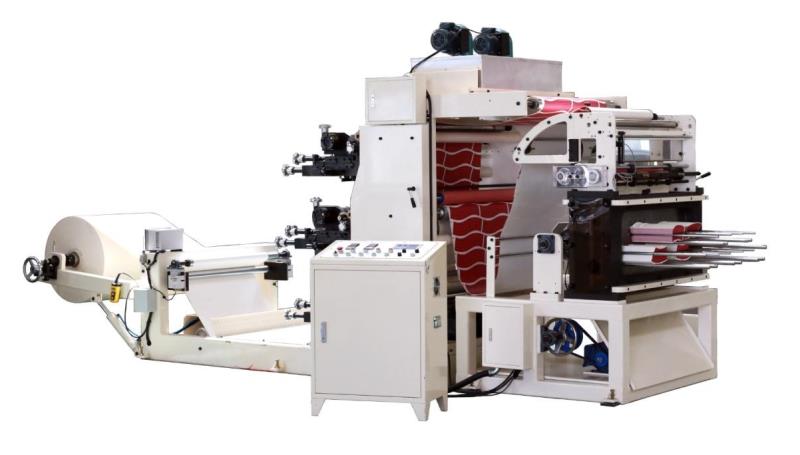

OSF 100 FLEXO PRINTING & PUNCHING MACHINE 1 COLOR

Category
:
PAPER CUP MACHINES (PRO)
Product Name
:
OSF 100 FLEXO PRINTING & PUNCHING MACHINE 1 COLOR
Product Description
:
Flexo printing and punching machine provides pan for paper cup. It can be used for 25 paper cup forming machine with high speed. This punching machine can show you very high performance and quality.

Request a Bid
Required Field:5 m2
Total Electricity Consumption:30 KW / 380 V/ 3 PHASE
Origin:TURQUIE OU CORÉE
Capacity:100 ~ 300 RPM
Number of Employees:1
Required / Air, Water and Fuel:6 Bar Air Presseure 100L/Mun.
Products
FLEXO PRINTING & PUNCHING MACHINE 1 COLOR (OSF 100)
DESCRIPTION
Printing & Punching(die cut blank) machine can print and die cut paper cup blank inline automatically. It is high Flexo printer with water base ink upto 1 color both print single PE and double PE paper.
We add Doctor blade chamber system, Anylux ceramic roller, Corona treatment, EPC and heater dry system so that printing quality is much better

FUNCTION
Paper cup print and die cut inline
Automatic & high speed roll die cut blank
Simple & easy to operate machine
Compact & less space

FEATURE
Machine Dimension: NORMAL: 4,800X1,800X2,750 EPC TYPE: 5,850X1,800X2,750
Sep up Area: 8,500X3,000X3,500
Productive Quantity: 100 ~ 300 RPM
Electric Power:20 KW
Main Motor: 220V/3HP/1EA
Printing Motor: 220V/3HP/1EA
Ceramics:200~600
Sub Motor: 220V/2HP
Weight 2,950 KG
Printing Type:  FLEXO PRINTING
Paper Width: 980 MM/MAX
Machine is painted by water and corrosion resistant two-component epoxy primer and paint.
Note: Our company reserves the right to make changes in technical specifications of the machines as deemed necessary without prior notice.
EXTRA MOULD (OSF 100-E)
