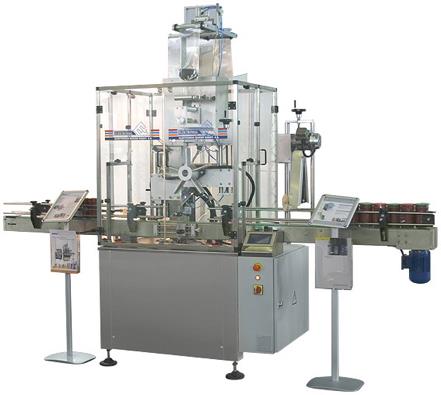

System: Automatic Linear
Construction Conveyor: Chassis steel, all visible surfaces are AISI 304 and coated aluminum parts: ~ 3,000 mm, 82mm PVC tracked
Conveyor Height: Standard 950mm (± 50mm)
Packaging: glass, plastic, PET, PE, metal
Packaging Width / Diameter: 30mm-100mm
Control Unit: Omron brand PLC Control
System Sleeve Material: PET, PVC,OPP
Sleeve Thickness: 50μ-80μ
Max Sleeve diameter: Ø 100 mm
Sleeve Width: 50mm-157 mm (folded)
Sleeve height: 30mm-60mm (gap between the two sleeve must be at least 5mm)
Sleeve Height Adjustment: Touch screen, automatic
Sleeve Roll Inner Diameter: Ø150
Sleeve Roll Outer Diameter: 400 mm (maximum)
Error Rate: ± 0.8%
Electrical requirements: Single Phase, 220V, 50Hz
Energy consumption: 1.1 kW
Air Supply: 6-8bar
Air Consumption: 200lt / min
Size (Width-Length-Height): 1190-1.250-2.100mm (conveyor 3,000 mm)
Weight: ~ 900kg
Advanced easy-to-use Omron brand PLC control system
Omron brands touch the LCD operator panel
Stepless adjustable speed sorter helix packing
Improved cutting blades with a high cutting speed
Electrostatic prevention and improved vacuum system
Easy to change in a short time and by packaging parameters can easily be called from the PLC memory
Entry empty, full exit and non-operating feature in the absence of the package
Maintenance and service ease
Casing closed according to the CE norms to ensure the occupational safety and environmental cleanliness
Note: Our company can make changes without notice in the specifications of the machine when it deems necessary.
Origin Made in Turkey
