FEATURE DETAILS
The chin system is double chin which has a adjustable angle blades.
Single bobbin head is fitted with a extra bearing with a total of 2 bearings to stop any flexing from loading. The Packet length dimension can be set to continously variable any dimension between the minimum and maximum value with servo control Chin and Conveyor moves controlled single servo motor. Automatic break system. More power of resistance and more robust and mechanically advanced The automatic packaging settings can be done with on touch screen control panel.
The sewing group has triple (Puller, Heater and Barcode) roller press adjustable. Conveyor group can be adjustable for products. The chin speed can be set to continously variable any speed between the minimum and maximum value, while machine is operating. Machine have product counter.Thanks to the counter showing the amount of product, specified quantity of production is reached, the machine automatically stops production. Adjustable folding unit. Online Control System and Programing with CF Cards
B&R Industrial PC Motion Control System
B&R Servo motor and Driver
B&R 5,7” Touch Screen Control Panel With Colour
SPECIFICATIONS
Chin Width 160 mm
Product Dimensions
Width: 20-150 mm
Height: 5-60 mm
Lenght: 80- 450 mm
Consult Orse
For other
dimensions

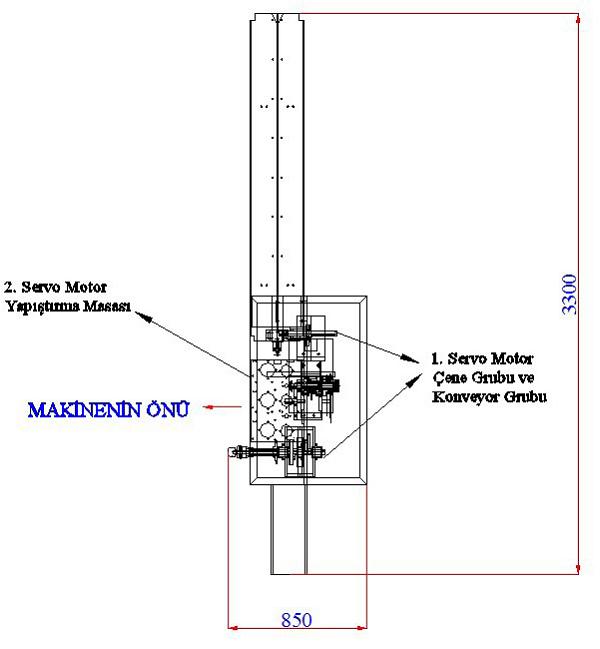

General Machine Dimensions
Width: 850 mm
Height: 1800 mm
Lenght: 3300 mm
App. Machine Weight: 700 kg.
Machine Speed 150-200 pac/min. Pneumatic Consumption No
Max. Spool Width 400 mm Electrical Voltage 380 Volt / 3 Phase 50 Hz.
Max. Spool Diameter 450 mm Power Consumption 4,1 kW – 20 Amp.
Spool Inside Diameter 60-76 mm Motor Power/ Heater Power 2,1 kW – 2 kW
