SLV-EX AUTOMATIC DOUBLE HEAD BODY SLEEVE MACHINE &THREE-EYED SHRINK SLEEVE TUNNEL STEAM & STEAM GENERATOR

Category
:
FILLING, CAPPING, LABELING, SLEEVERS MACHINES (PRO)
Product Name
:
SLV-EX AUTOMATIC DOUBLE HEAD BODY SLEEVE MACHINE &THREE-EYED SHRINK SLEEVE TUNNEL STEAM & STEAM GENERATOR
Product Description
:
Touch Omron brand LCD operator panel, infinitely variable speed control package sorter spiral with high cutting speeds, easy to replace the SERVO motor-driven rotary steel cutlery set servo motor sleeve pull rollers, servo motor sleeve throwing rolls, facilitating Sleeve flow air blow fan system, the roll automatic sleeve feeding system, as soon as possible and called Introduction to be able to easily change parameters easily by packing the PLC memory is empty, filled out and work to feature in the absence of packaging

Request a Bid
Required Field:70 M2
Total Electricity Consumption:88 kW 380V, 50Hz
Origin:TÜRKİYE
Capacity:-
Number of Employees:1
Required / Air, Water and Fuel:-
Products
AUTOMATIC DOUBLE HEAD BODY SLEEVE MACHINE (SLV-EX)
System: Automatic Linear
Construction: steel chassis, visible surfaces are AISI 304 stainless and anodized aluminum
Conveyors: ~ 3,000 mm, 82mm PVC tracked
Conveyor Height: Standard 950mm (± 50mm)
Packaging: glass, plastic, PET, PE, metal
Control Unit: Beckhoff PLC Control System
Sleeve Material: PET, PVC
Sleeve Thickness: 50μ-80μ
Sleeve height: 35mm-300mm (the space between the two sleeve must be at least 5mm)
Sleeve Height Adjustment: Touch screen, automatic
Sleeve Roll Inner Diameter: 150 mm
Sleeve Roll Outer Diameter: 400 mm (maximum)
Cutting blade diameter: 35-55mm / 55-105mm / 105-130mm (the only option available on the machine)
Error Rate: ± 0.5%
Electrical Requirements: 3 phase, 380V, 50Hz
Energy Consumption: ~ 9KW
Dimensions (WxDxH): 1100x5600x2200mm (~ 3,000 mm conveyor)
Weight: ~ 1291 kg
Capacity: Diameter: 50 mm, standard capacity for 650 Name Height 130mm / min
Advanced easy-to-use Omron brand PLC control system
Omron brands touch the LCD operator panel
Infinitely variable speed auger package sorter
High cutting speeds with easy replaceable rotary servo motor steel cutlery set
Servo-motor driven rollers pull sleeve
Servo-motor driven rollers throwing sleeve
Facilitating the flow of air blown fan system Sleeve
Automatic feed system of the roller sleeve
According to the package as soon as possible and easy to change parameters to be easily called from the PLC memory
Log in empty, filled out and work to feature in the absence of packaging
Maintenance and service ease
Quiet operation without the use of compressed air
Occupational safety and the environmental cleanup to ensure CE norms in enclosed housing (optional)
Note: Our company can make changes without notice in the specifications of the machine when it deems necessary.
Origins of Turkish goods

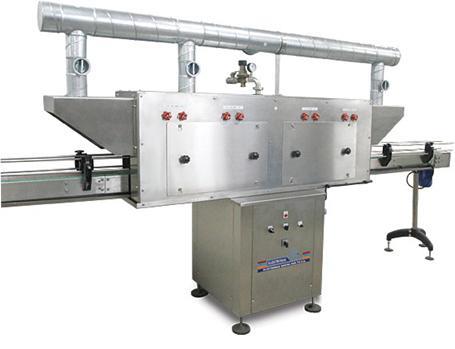

THREE-EYED SHRINK SLEEVE TUNNEL STEAM WITH 6 STATION  (IT-B3)
System: Linear
Operation: Steam
Construction: steel chassis, interior and exterior tunnel casing AISI 304
Conveyor: 4.000mm, 82mm PVC tracked
Conveyor Height: Standard 950mm (± 50mm)
Packaging: glass, plastic, PET, PA
Steam Nozzle: 4 sets (4-4 mutually independently adjustable)
Steam Pressure: 4 bar (steam pressure inside the tunnel used in ≥ 2b)
Steam inlet 1 "finger
Steam Usage: 2-2.5 kg / min
Required generator power: 85 kW
Bottle Width: up to 130mm'y
Bottle Height: 300mm
Electrical Requirements: 220V, 50Hz, 2
Energy Consumption: 0,5kw
Size (Width-Length-Height): 650-2.600-2.000mm (conveyor 4.000mm)
Weight: ~ 300kg
Speed automatic or manually adjustable conveyor system
Ability to work in sync with the sleeve machine
8 steam control valve
Independent adjustable 2 sections
Easy to change in a short time
Maintenance and service ease
Steam is absorbed and the system will be excluded
According to the resistance of the tunnel system work more efficiently and to obtain high-quality surface
Note: Our company can make changes without notice in the specifications of the machine when it deems necessary.
Origins of Turkish goods
system Sleeve



Automatic feed system of the roller sleeve
According to the package as soon as possible and easy to change parameters to be easily called from the PLC memory
Log in empty, filled out and work to feature in the absence of packaging
Maintenance and service ease
Quiet operation without the use of compressed air
Occupational safety and the environmental cleanup to ensure CE norms in enclosed housing (optional)
Note: Our company can make changes without notice in the specifications of the machine when it deems necessary.
Origins of Turkish goods
BOTTLE ADJUSTMENT PART (Optional Feature) (ŞGP)
Sleeve Opener Cone
added to each different diameter / type of packaging components for packaging passage is worth
(additional for each package type)
Note: Our company can make changes without notice in the specifications of the machine when it deems necessary.
Origins of Turkish goods


BOTTLE ADJUSTMENT PART (Optional Feature) (ŞGP)
Bottle Spacer
added to each different diameter / type of packaging components for packaging passage is worth
(additional for each package type)
Note: Our company can make changes without notice in the specifications of the machine when it deems necessary.
Origins of Turkish goods
BOTTLE ADJUSTMENT PART (Optional Feature) (ŞGP)
Special Sleeve Cutting Unit
added to each different diameter / type of packaging components for packaging passage is worth
(additional for each package type)
(35-55mm / 55-105mm / 105-130mm)
Note: Our company can make changes without notice in the specifications of the machine when it deems necessary.
Origins of Turkish goods
STEAM GENERATORS (ALBA-80)
80 Kw power, 8 to 10 kW resistance,
Fully automated packaging system, dual automatic pressure control, water pump 0.55 kW monoblock,
Working pressure of 4 bar, high pressure alarm warning system,
Mounted on the electrical control panel,
Powder coated,
Mechanical safety valve system,
Cr-ni steam outlet valves, gauge brass valves
Note: Our company can make changes without notice in the specifications of the machine when it deems necessary.
Origins of Turkish goods
CONDENSATE TANK and EQUIPMENT (ALBA-80K)
1 " GEAR
Note: Our company can make changes without notice in the specifications of the machine when it deems necessary.
Origins of Turkish goods
STEAM SEPARATOR (ALBA-80S)
Note: Our company can make changes without notice in the specifications of the machine when it deems necessary.
Origins of Turkish goods
BYPASS GROUP (ALBA-80BP)
"1 /2 " FLOAT
