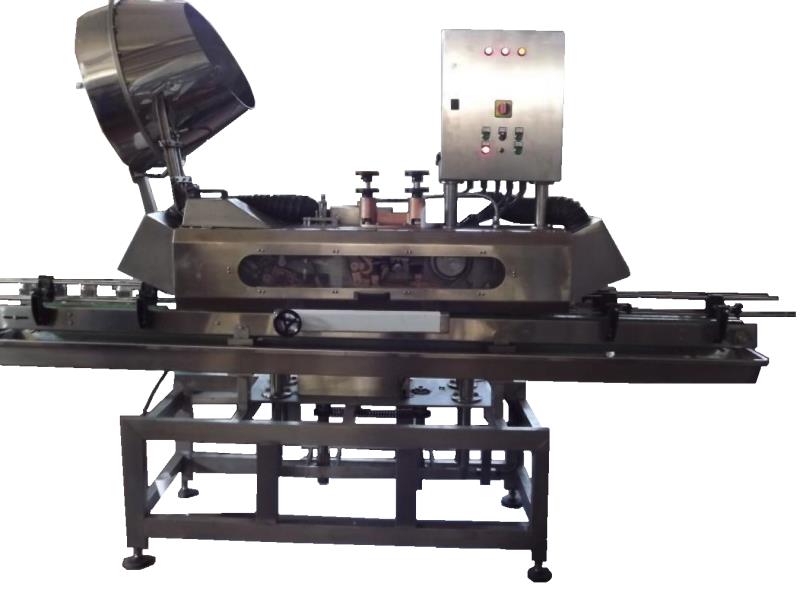

Model OKKM-TW
Machine Type: Linear
Cappacity: 2,000 – max.10,000 bph (for Ø38mm caps)
(depend on Jar & Cap diameter and Jar Height)
Cap Diameter: 1- Ø38 mm – Ø53mm; or
2- Ø53 mm – Ø86mm
3- optional Ø110 (standart)
Jar Diameter: 1-Min. 40 mm- Max. 80 mm
2 -Min. 80 mm- Max. 150 mm
Jar Height: 1-Min. 53 mm- Max. 120 mm
2-Min. 40 mm- Max. 250 mm
Cap Selector: Automatically from cap selector, Speed controlling
Cap Fedding From Cap selector : Automatically from cap canal
Caps feed to cap selector: Manually by case or hand
Screwing Group: Regulated mechanical suspension
Screwing System: Double belt. Lineer speed
Jar Fixing (holding): Squeezing, adjustable activated belts
Adjustable Cap Canal: 1- Ø38 mm – Ø53mm; or
2 -Ø53 mm – Ø86mm
Optional for >Ø86mm
Jar Height Adjusting: Automatically by gearbox
Frame Construction: AISI 304 stainless steel
Body Construction: AISI 304 stainless steel
Conveyor: 82mm width, 3.000mm.boy lenght
STEAM FEEDING SYSTEM TO JAR-NOT INCLUDE /INCLUDE OPTIONALY
Steam Heating on cap’s gasket: NOT INCLUDE /INCLUDE
Steam feeding system to jar: Directly to the Jar mouth to making vacuume- NOT INCLUDE/INCLUDE
Cooling Of Belts: By water NOT INCLUDE/INCLUDE
Steam Reduction System: 6-2 bar NOT INCLUDE/INCLUDE
USED JARS & CAPS
Jars: glass
Caps: Twist off
Caps diameter: Not specified
Jars hight: Not specified
Jars shape: Not seen
