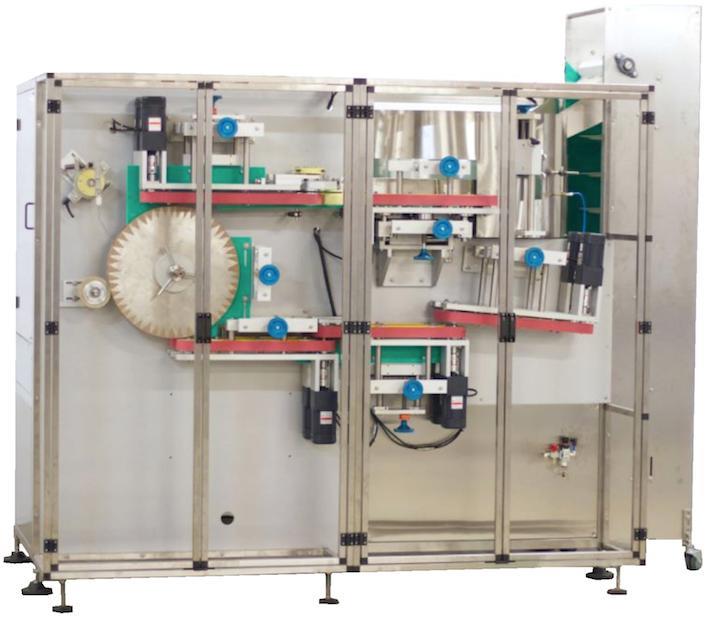

SDTM-H AUTOMATIC PLASTIC BOTTLE UNSCRAMBLING MACHINE

Category
:
FILLING, CAPPING, LABELING, SLEEVERS MACHINES (PRO)
Product Name
:
SDTM-H AUTOMATIC PLASTIC BOTTLE UNSCRAMBLING MACHINE
Product Description
:
Advanced easy-to-use Omron brand PLC control system.Quickly and easily change format change with modular components. Filling machines working simultaneously. With a simple design, ease of maintenance and service. Select bottle by gravity and compressed air. There are no mechanical parts that apply pressure to the bottles Lossless pass through the filling machine conveyor Vacuum conveyor

Request a Bid
Required Field:4 M2
Total Electricity Consumption:2.8Kw 380 V AC 3 PHASE
Origin:TURQUE
Capacity:4000-10000 pcs / h (selon le type de bouteille)
Number of Employees:1
Required / Air, Water and Fuel:6 Bar AirPresseure /700 lt/Mn
Products
AUTOMATIC PLASTIC BOTTLE UNSCRAMBLING MACHINE (SDTM-H)
System: Linear
Working principle: Non-stop with belt
Construction: Stainless steel chassis, all surfaces are AISI 304
Conveyor: 82 mm PVC Crawler 2000mm
Conveyor Height: standard 950 mm (+ -50mm)
Packing: Plastic (min: 25 max: 120mm width is appropriate
Bottle Download Volume: 800,000 cm3
Control Unit: Omron PLCs in the Control System
Electrical Requirements: 380V 50Hz 3 Phase
Energy consumption: 2.8 kW
Air Supply: 6-8 bar
Air consumption: 200 Lt/min
Dimension (WxLxH): 1600xx1900x2300 mm
Weight: 700 kg
Capacity: 4000-10000 pcs / h (depending on bottle type)
Advanced easy to use Omron PLC CONTROL SYSTEM
Omron brands touch-operated the LCD operator panel
Stop feature when the exit is full
Infinitely variable electronic speed control
Easy to change in a short time
Maintenance and service ease
To ensure work safety and environmental cleaning, machine sensors (photocells) used on enclosed casing in CE norms. SICK, KYENCE
The pneumatic materials used on the machine SMC FESTO
All reducers are used on the machine is brand Yılmaz Redüktör
All 304 and 316 stainless steel materials which used on the machine have their licenses.
Soft start and stop feature
Automatic setting prescribed by existing products
Fast switching between bottles
Optional
Bottle cleaning air
HEPA air purification filter
Air consumption: 700 l / min
Note: Our company reserves the right to make changes in technical specifications of the machines as deemed necessary without prior notice.
Made in Turkey
BOTTLE TRANSITION PIECE (Optional Future) (SGP)
AUTOMATIC BOTTLE RETURN MACHINES (Optional Future) (SCM)
Note: Our company reserves the right to make changes in technical specifications of the machines as deemed necessary without prior notice.
Made in Turkey
