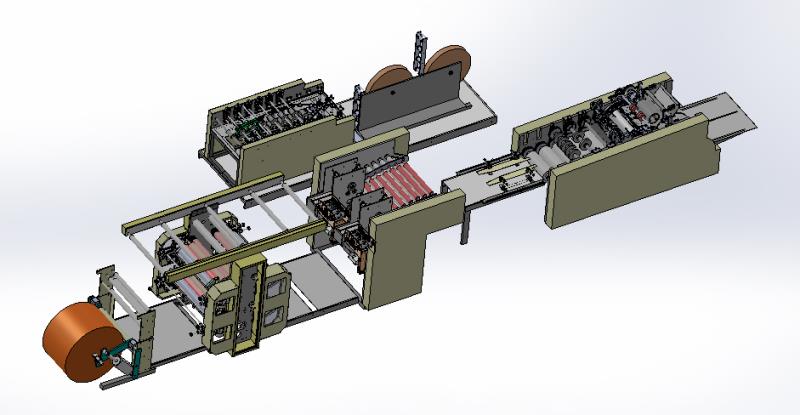

This is special machine for the production of shopping bags (block bottom bags) with twisted rope handle or flat belt handle made of paper. The material can be paper roll or printed paper roll. Whole machine is controlled by computer central control system with touch screen and servo motor for cut-off length control.
It can produce variable sizes paper bag and paste paper handle inline for completely paper bags without any manual process. The machine automatic paper fed from roll, tube forming, cut-off, bottom forming, bottom glue, bag forming and final bag output. All steps are completed in-line; This machine is an idea equipment for Twist or Flat handle square bottom paper bag. It is the quintessence both of home and abroad.
TECHNICAL PARAMETRES :
Paper Roll Width (mm) : 670-1220
Bag tube length (mm) : 360-620
Bag Width (mm): 240-450
Bag Bottom Width (mm) :80-150
Length of twisted rope(mm) :350-400
Paper Gram Weight (g/㎡) : 70-150
Maximum Paper Roll Width (mm) :1500
Speed (bag/min.) :50-110
Total Power (kw):33
Machine Weight (Ton) : 20
Machine Dimension (L*W*H) :15000*3000*2500mm
Note: Our company reserves the right to make changes in technical specifications of the machines as deemed necessary without prior notice.
Made in Turkey
