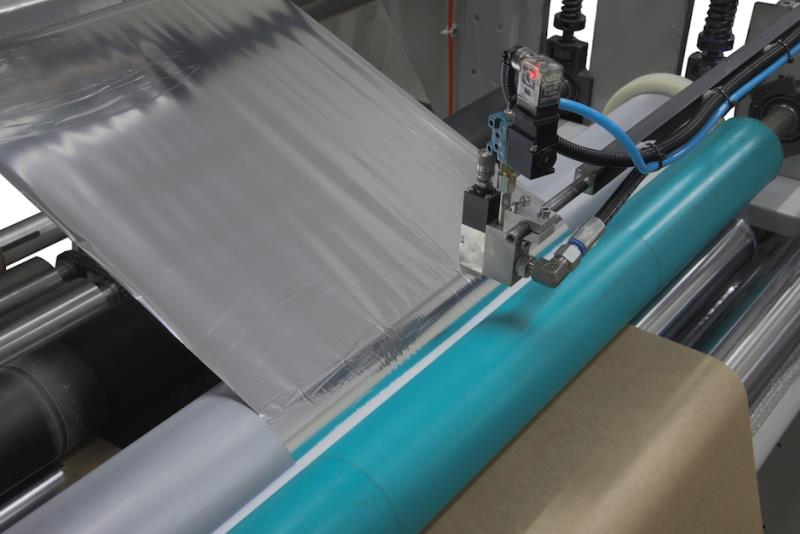

It is in the width of 110 cm and it can operate on 105 cm paper. The machine wraps by laminating (bonding) cellophane on the paper from roller to roller. Machine operates with cold glue and it has roller loading engine and it wraps between two cylinders. Loading and wrapping shafts are air-driven. The machine has engine with adjustable-speed drive and remote control..
Main Features:
Maximum Operating Speed: 100 m.-120m / min.
Products to Work: 18-max.250 gr / m2 - Paper
Maximum Working Width: 1050 mm
Tension Control: Optional Feature
Duplex: Optional Feature
Slicing Systems: Optional Feature
Power requirement KW: 380 3 Phase 3 KW
Coil Reinforcement Section:
Max. Coil Diameter (Solvent): 1200 mm
Coil Diameter (Solvent): 76 mm
Magnetic power brake: Yes
EPC controller: Optional Feature
Driving Motion: With Electric Motor
Synchronous belt: Optional Feature
Synchronization wheel: -
Bearing: SKF- ORS- FAC
Guide roll: Optional Feature
Air shaft opening: Yes
Bobbin Loading: Yes - with electric motor
Meter Counter: -
Laminating (Selefoning) Section:
Compression system between two rollers
Easy adjustable clamping device
Paper Weight: 18-max.250 gr / m2 - Paper
Coating Filmin Thickness: 08 - 50 μm

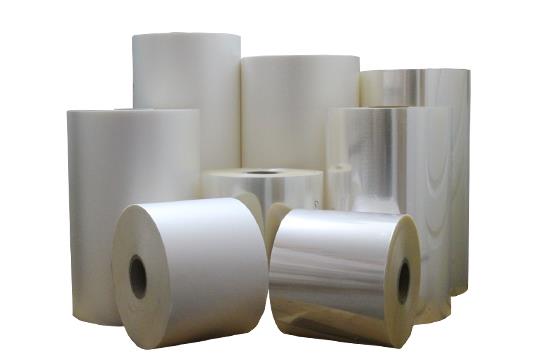

Coating Filmin Type: Aluminum, OPP Metallized Materials, PE, PVC BOPP, PET, Nylon ets
Glue Casting: Cold Water Based / Thermal
Cold Glue Transfer: Double diaphragm pump
Easy Adjustable Version
Precise and equal adhesive application
Flexible use thanks to compact and modular construction
Fast switching times with fast ventilation
Very low vibrations thanks to material pressure regulator
Integrated pneumatic unit
Easy and quick cleaning
Filter change without special tool
Long-life gasket packs
Bobbin ReWinder Section:
Max. Coil Diameter (Coiler): 1200 mm
Diameter (Coiler): 76 mm
Machine dimensions:
Machine Length: 3000 mm
Machine Eni: 1800 mm
Machine Height: 1500 mm
Machine Weight: 1000 kg
The brand of materials:
Servo motors: Omron or ABB we prefer Omron brand PLC or motion Control :
if desired Omron brand hot glue: Robotech depending on the
country where it goes.
Bearings: SKF-ORC-FAG
Magnetic power brake: Dutch origin
Pressure Control: Turkish origin
Other electrical materials: Schnider German Company
Machine is painted by water and corrosion resistant two-component epoxy primer and paint.
Note: Our company reserves the right to make changes in technical specifications of the machines as deemed necessary without prior notice.
