Category
:
MACHINES FOR CATAIF (EKO)
Product Name
:
GK5000 CONTINUOUS SYSTEM FULL AUTOMATIC KADAYIF&KUNEFA MACHINE AND EQUIPMENT (70-100 KG H)
Product Description
:
This machine has high capacity and in generally, it uses by producers who are selling thin kadayif to market.The factory type kadayif machines has hybrid heated system from multiple points. This machine is heated from 3 points.Thus,very thin and quickly kadayif production is carried.

Request a Bid
Required Field:70 M2
Total Electricity Consumption:5.5Kw 380 V AC -50 Hz
Origin:TURQUE
Capacity:70-100 KG /HEURE
Number of Employees:2 Person
Required / Air, Water and Fuel:6 Bar Air Presseure / 40m ³/hour Gaz
Products
CONTINUOUS SYSTEM FULL AUTOMATIC KADAYIF&KUNEFA MACHINE AND EQUIPMENT (GK5000)

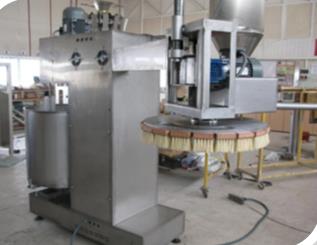

The Factory Type Kadayif Machines
This machines are made from stainless steel or copper. In recent years, copper production completely stopped.The strength of stainless steel, cleaning and heat retention capacity is greater than copper.
The machine is entirely working as a continuous line, in a systematic way and is controlled by continuously running system operator panel.

TECHNICAL PARAMETERS
Mounting with screw, and easy repair possibility
Kadayif is optionally make thin and thick adjustment possibility
Very silent operation
Full protection against the mains and engine problems
Suitable for food production, stainless steel hull structure and easy to clean
Low electric consumption
Color of Machine : MetallicSilver (StainlessSteel)
Hull Structure 430 quality 4 mm CR-Nİ Stainless Steel
Tray Structure 3mm Copperand 4mm CrNi
Energy Requirement :380 V AC -50 Hz / 5.5Kw
Production Capacity :70–100 kg /hour
Tray Diameter: 3000-600cm
Tray Heating System Shaped pipe-line LPG or Natural gas furnace
Compa Area Varies according to the diameter.
Machine Weight: 2.000 kg (Machine weight varies in specific production.)
Machine Dimensions: 4X 4meter-6x6 meter
The required number of personnel :2 person
Tray Engine: 1.1 Kw –Speed Control of Asynchronous Motor
Mixer engine: 2.2 Speed Control of Asynchronous Motor
Brush Engine: 0,37 Kw-Speed Control of Asynchronous Motor
Conveyor Engine: 0,37 Kw-Speed Control of Asynchronous Motor
Pulp Pump:  Lob Pulp Pump

SECURITY
Emergency Stop Button 1
Electrical Protection Fuse
Overcurrent Protection With inverter
Options :Laser heat meter, proportional valve, dough forged system
Also this machine needs to compressors and according to needs of the company, compressor is selected. And also, rotating brush can be mounted to this machine.
Note: Our company may change technical features of the machine without giving any prior notice when it deems necessary.
Made in Turkey
