BSM-MT COMPLETE FILLED AND SOFT BISQUIT LINE CAPACTY 100 KG H

Category
:
MACHINES FOR FILLED & SOFT BISQUIT (ECO)
Product Name
:
BSM-MT COMPLETE FILLED AND SOFT BISQUIT LINE CAPACTY 100 KG H
Product Description
:
Special production of caramel and fruit puree-filled soft dough pastry are performed by one single machine combining triple-technology.  a) Fully covered and center-filled, b) Twister shaped and filled , c) Drop chocolate with coarse grain fruit an

Request a Bid
Required Field:30 m x 10 m
Total Electricity Consumption:25 kW/h
Origin:TURQUE
Capacity:Biscuits Fourres 100 kg./h. Cookies: 250 kg./h. Fıg À Barre: 250 kg./h.
Number of Employees:10 m³/h. Naturalgas
Required / Air, Water and Fuel:6 Travailleurs Changement
Products
OIL MELTING AND RESTING UNIT (BSM-102)
It is a tank for melting and resting the blocks of vegetable oil (margarine) packed in 20 kg pack each to be able to be used in the processing. The water is heated between 60ºC - 80ºC by electrical resistance and circulated by heat exchanger. This is ensuring melting of the margarine blocks and the melted oil is collected in this double-jacketed tank.
The tank is entirely made of stainless steel. It has a cover which can be opened easily with  the shock absorber. The water temperature can be regulated in any desired degree by an electronic thermometer and the circulation can  be done. Its capacity for stoking oil is 500 kg. The total used resistance  is  9000 of  watts .
The desired quantity of oil is discharged from this tank to the mixer by the dosing pump. The power of  Dosing Pump is 0.25 kw.
Width:160 cm
Height :145 cm
Length: 170 cm
Materials which are used in the production comply with international foodstuff specifications.
Note: Our company reserves the right to make changes in technical specifications of the machines as deemed necessary without prior notice..
Made in Turkey
DOUGH MIXER (Z MIXER 150 KG/H) (BSM-103)
It is a mixer with Z stirrers used for preparing and mixing biscuit dough. It has a stainless steel hopper of 250 liter capacity and double-axes Z stirrers inside made of stainless steel. 150 kg/h capacity per two charges and step-less speed adjustability between 30 cycle/min to 60 cycle/min.
The trough of this mixer has a system to discharge it by lifting and turning it down.
Motor power:  50 Kw.
Sizes:
Width: 100 cm
Lenght: 130 cm
Height: 180 cm
Materials which are used in the production comply with international foodstuff specifications.
Note: Our company reserves the right to make changes in technical specifications of the machines as deemed necessary without prior notice..
Made in Turkey
BALL MILL 500Kg/2-3H PER BATCH (MKCM- 500)
Capacity : 500 kg/h
Main motor of the machine 15 kw .KR 573 GAMAK
Chocolate transferring motor 2,2 kw .2” Outside going
The inside of the furnace is made from 8mm and 6mm CrNi material
The exterior wall of the furnace is  made of dkp 4mm CrNi material.
The chocolate transferring pipes are covered water jacket and are  made of CrNi material
The materials which are used in electric panel part are telemecani
There are 500 kilograms of ball bedrings in the machine
Machine has owen electrical panel controlled by PLC.
Touchscreen panel
3 different sensors for mesuring temparature ,accordingly to command the valves  on /    off
The main motor opearates as long as duration on touchscreen panel.
4” discharge tube for balls
4500 watt heater.
1 pc water transfer pump
Power: 22kw.
Weight : 3000-3600 kg
Materials which are used in the production comply with international foodstuff specifications.
Note: Our company reserves the right to make changes in technical specifications of the machines as deemed necessary without prior notice..
Made in Turkey
RESTING-STOCK TANK FOR 500 KG (MKST-500)
Capacity : 500 Kg/H
Machine designed for stocking chocolate for rest. Rested chocolate
transfer automaticly to the chocolate filling machine by its own pump.
Completely made of 304 quality of stainless steel, trio walled
for heating water and isolating.
Floor has a bulge and mixer,
Has  valve for transfering chocolate to the chocolate
filling machine automaticly.
The main motor is 3.5 kw.
Has also owen chocolate transfer pump 2’’ 2.2 kw
A total of 4.5 kw resistance are used.
Water transfering pump is 0.25 kw
Has owen electric panel to control.
All the chocolate transfering pumps and valves has double  jacket
by heating water.
Power:15kw.
Materials which are used in the production comply with international foodstuff specifications.
Note: Our company reserves the right to make changes in technical specifications of the machines as deemed necessary without prior notice..
Made in Turkey
POWDER SUGAR MILL (BSM-104)
It is a mill which has a rotating head with pallets for producing powder sugar from the ordinary crystal sugar.
Capacity: 300 kg / h.
Motor Power: 2,2 kw.
Sizes:
Width:80 cm
Lenght: 120 cm
Height: 150 cm
Materials which are used in the production comply with international foodstuff specifications.
Note: Our company reserves the right to make changes in technical specifications of the machines as deemed necessary without prior notice..
Made in Turkey
MULTIDROP MACHINE (BSM-MT)
It is a special machine that can produce 3 different types of special biscuits as center filled biscuit ( Biskrem ), pipe type biscuit ( Figbar ) and wirecut biscuit.
All surfaces touch with dough made by  entirely stainless steel and teflon. İt can be style of biscuit  till 250 Kg./h.
Electric power: 4 Kw.
Width:100 cm
Height : 80 cm
Length: 120 cm
Materials which are used in the production comply with international foodstuff specifications.
Note: Our company reserves the right to make changes in technical specifications of the machines as deemed necessary without prior notice..
Made in Turkey
FIG BAR CUTTING UNIT (BSM-106)
Materials which are used in the production comply with international foodstuff specifications.
Note: Our company reserves the right to make changes in technical specifications of the machines as deemed necessary without prior notice..
Made in Turkey
OVEN INLET CONVEYOR (BSM-107)
Transport facilty with cloth band, which carries the profilled dough to the baking band.
Power consumption : It is controlled by the cloth band rotary wheel.
Materials which are used in the production comply with international foodstuff specifications.
Note: Our company reserves the right to make changes in technical specifications of the machines as deemed necessary without prior notice..
Made in Turkey

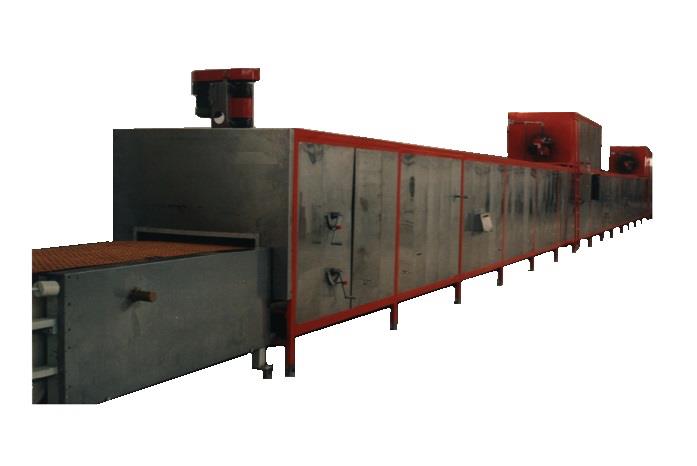

18 M. THERMO-CYCLE BAKING OVEN (60 CM STEEL BELT) (BSM-18X60)
This oven is indirect heat type oven. The air heated in Combustion Chamber by a burner using Natural gas is circulate in special channels of the Tunnel Oven by a fan.
Due to the special design of the oven, the product is never coming in touch with burned gases during baking. The product is being baked during running forward in the Baking Tunnel without touching the burned gases. The heating for baking the product is indirect heat.
The elements used in the structure of the Tunnel are made of high heat resistance Chrome - Nickel Steels & Carbon Steel.
The baking rooms of the oven are isolated entirely by a nun-conductive isolation material.
The steel belt has a securing precaution system against the slipping. This is an automatic regulating system to prevent the belt from slipping left or right.
This belt speed can be regulated between 2 m / min - 7 m / min.
The total length of the oven is 18 meter consisted of 2 units. The belt wideness in the units is 60 cm.  and length is 10 meter in each unit.
The outer surface of the oven is entirely closed with furnaced paint covering sheets.
The heat of the oven can be regulated automatically between 100°C - 350°C.
Materials which are used in the production comply with international foodstuff specifications.
Note: Our company reserves the right to make changes in technical specifications of the machines as deemed necessary without prior notice..
Made in Turkey
OVEN EXIT BELT (BSM-109)
The facilty for the transporting the baked biscuit with special cutting knife system.
Power consumption : It is controlled by the baking wheel.
Materials which are used in the production comply with international foodstuff specifications.
Note: Our company reserves the right to make changes in technical specifications of the machines as deemed necessary without prior notice..
Made in Turkey
