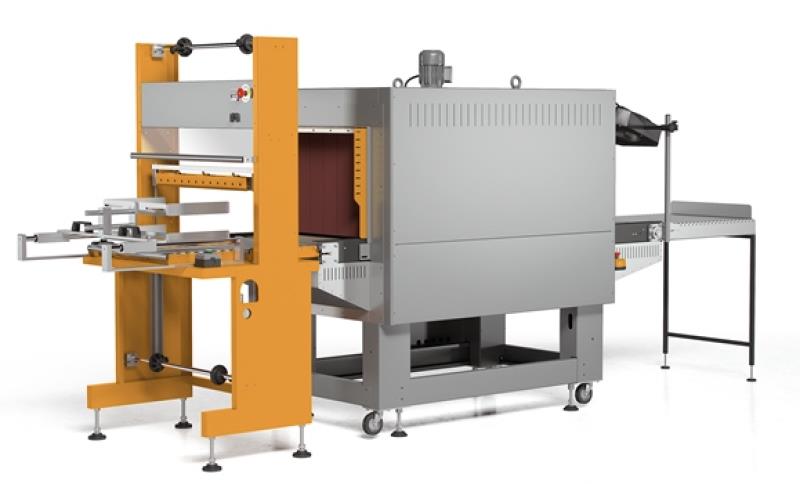

T 640 * 500N Shrink Tunnel & K 640 * 740 Idler Roller Tunnel Exit Conveyor with Manual Adjustable Guided Wrapping & Sealing Unit Chin; It is a teflon coated hot jaw and is thermostat controlled. It makes cut and paste without odor and smoke. Wire resistances have been removed. The cutting and sticking time was taken to 1 second.
SEALING UNIT
Chin; It is a teflon coated hot jaw and is thermostat controlled. It makes cut and paste without odor and smoke. Wire resistances have been removed. The cutting and sticking time was taken to 1 second.
Capacity; It is 3 - 5 packs / minute. (Varies depending on operator speed and product size.)
Electrical System: EATON
Jaw length: 750 mm
Jaw height: 400 mm
Maximum coil width: 700 mm
Maximum coil diameter: 300 mm
Manually adjustable thrust guide system.
SHRINK TUNNEL
Tunnel Dimensions: Inside inside 750mm width, 500mm height.
The product at the maximum height that can pass through the tunnel is 360 mm.
Tunnel Temperature: It is thermostat-controlled and goes up to 230 C.
Tunnel Band: OMRON is speed-controlled and heat-resistant silicone coated rod or
It has a wire mesh band.
Electricity Consumption: The consumption in the first 30 minutes is 26Kw, the next consumption is 14Kw / hour.
Tunnel Air Circulation: It is done with a radial fan.
Tunnel Insulation: Ceramic Blanket
Electrical System: EATON or SCHNEIDER
Resistances: It is a stainless tubular resistance and can be installed on both sides of the tunnel.
mounted, easy to change.
Tunnel Outlet Cooling Flow: 1000 m / h.
