GENERAL FEATURES:
Machine body is easy to carry thanks to its robust structure, arc welded steel construction and scale pins placed for the assembly of block frames and offers quick installation. Drawing heads and rolling mil boxes, motors, brakes, safety equipment, water feeding and return coolant pipes etc. are mounted to the body. Drawing heads are cast steel. Drawing belt surface is coated 75 mm tungsten carbide. Cooling water is fed to the drawing blocks and rolling mill boxes by a special system.
Motor power depends of the product produced. (rolling mill diameters, material hardness etc.) Ac motors are controlled by inverters having torque control release technique and this brings many advantages for them. (Low-maintenance, high power linearity, and optimum speed linearity). Power transmission is made by belt and pulleys. Motors are mounted at the back of the body vertically with a mechanism providing easy belt tension.
There is Pneumatic and dynamic braking system on each motor for emergency and normal stops. Normal stops of the machine are realized with programmable stop times. Electrical safety prevent the operation of the machine if the safety locks of the machine are open. All electrical, electronic and electro-mechanical components are world-renowned brands; inverters for AC motors are ABB brand and the motors are GAMAK brand.
TECHNICAL FEATURES :

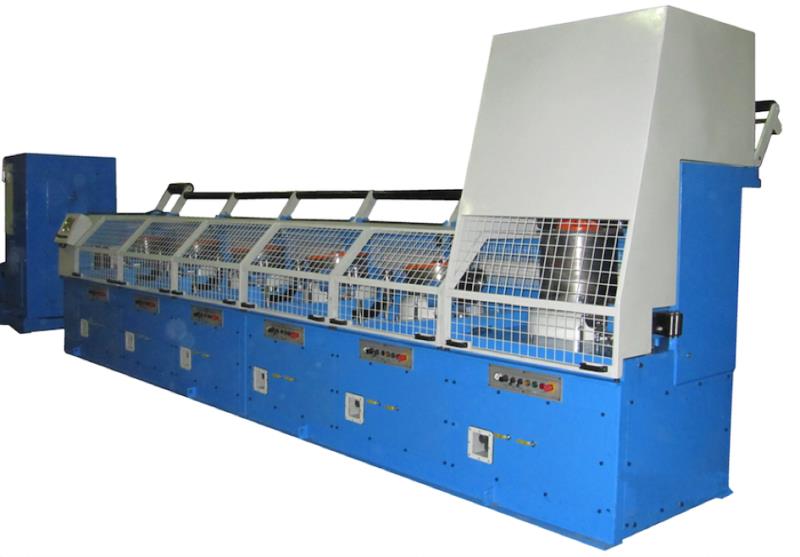

SMS 600-6 + INCLINED-BLOCK WIRE DRAWING MACHINE WITH DENSER LEVER
• Machine Model: SMS 600-6
• Block Diameter: 600 mm.
•Total number of Rolling Mills and Blocks: 6 pcs. 1st block is vertical with upper feed. 5th block inclined.
•Input Diameter: 5,50 mm 6,00 mm.
•Output Diameter: 2,40 mm 3,00 mm.
•Maximum Line Speed: 0-12 m/sec with rolling mill, 18 – 20.m/sec with cassette
•Main AC Motor Power: 37 kw 380 volt for each block.
•Block Features: Cast steel 1st block with upper feed and wire spirit counter. Other blocks with inclined head.
•Block Coating: Drawing belt 75 mm tungsten carbide.
• Rolling Mill Boxes Adjustment: Up, down, right, left.
• Rolling Mill Size: 43 x 27 mm.
•Rotary Rolling Mill: On first and last block.
•Denser Lever Adjustment: Pneumatic piston.
• Denser Lever Position Feedback: Analog proximity sensor.
•Drive System: specially designed steel-toothed. 6 blocks belt and pulley
•Braking: Pneumatic brake.
•Block Cooling: Water.
•Rolling Mill Cooling: Water.
•Supply Voltage: 380 v 50 hz- 3 phases.
•Drawing Direction Optional: from left to right, or from right to left.?
•Control Panels in Blocks: Machine start. Machine stop. Brake selector on / off. emergency stop. Pressure controller with denser lever.
•Control Panel: Machine start. Machine stop – Emergency stop. Error reset button. touch screen.
•Control Cabin: Well-known brands and devices are used in the control cabin manufactured according to Tse standards. Drives are PLC brand and screen is ABB brand.
•Safety Equipment: Machine is equipped with locked covers so as not to reach hazardous area during wire drawing.
•Upper Housing: It is made of cage and is closed system.
•Lighting: Protected fluorescence lighting.
•System Showing the Circulating Water is available.
•Flannel Frames are suitable for Micro Cassette Rolling Mill
• Average Capacity: In Ø 2,40 mm Wire diameter, 1,500 Kg/hour X 20 = 30 TON/DAY.
COILER
Number of Drums: 1 pcs with 2 stages
Drum Diameter: ø 600 mm nodular cast iron ( hard coating ).
Coiling Speed: 12 mt / sec. in compliance with the machine.
Motor Power: 37 kw 380 volt.
Control System: denser lever in compliance with the machine.
Coiling System: goose neck basket rest.
DECOILER: TOWER TYPE HYDRAULIC ROLL.
SCALE BREAKING: MECHANICAL PULLEY.
Note: Our company may make changes in the technical features of the machine when required without prior notice.
Made in Turkey
