S600-6 + S400-6 VERTICAL BLOCK CONSTRUCTION WIRE DRAWING FACILITY WITH UPPER TRANSMISSION 8-10 TON 24 HOURS (INPUT 6.00mm OUTPUT 1.20mm)

Category
:
WIRE DRAWING MACHINES (EKO)
Product Name
:
S600-6 + S400-6 VERTICAL BLOCK CONSTRUCTION WIRE DRAWING FACILITY WITH UPPER TRANSMISSION 8-10 TON 24 HOURS (INPUT 6.00mm OUTPUT 1.20mm)
Product Description
:
This Facility yields high-quality products with specially designed strong, low-maintenance structure of S Series Multi-Block Dry Drawing Wire Drawing Machines with Upper Transmission. This product is designed to produce Annealed and medium annealed wires used in construction iron chelation and various fields of industry for Furnace structure of Bell Type 2-Station Electrical Wire Annealing Furnace

Request a Bid
Required Field:19 mt * 10 mt
Total Electricity Consumption:250 kW
Origin:TURQUE
Capacity:7 m / s. (La tête de Sortie (Entrée 6.00 - Sortie de 2.40mm 1.20mm)
Number of Employees:6
Required / Air, Water and Fuel:7 Bar Air Presseure 300 Lt Munite
Products
WIRE DRAWING MACHINE WITH UPPER TRANSMISSION + COILER (S600-6)
GENERAL FEATURES:
Machine body is easy to carry thanks to its robust structure and centering elements required for assembly of block frames and offers quick installation.
Drawing heads, rolling mill boxes, drive motors, water feeding pipes, return coolant pipes, oil level indicators, safety caps are mounted to the body.
Drawing heads are GGG 70 nodular cast iron.
Drawing belt surface is HARD FILLING coated.
Drawing heads and rolling mill housing are cooled by cooling water.
Motor power depends on the diameter of wire to be drawn and the material structure.
Ac motors are controlled by inverters having torque control release technique.
Power transmission is made by belt and pulleys to specially designed reducers.
Motors are mounted at the back of the body vertically with a mechanism providing easy belt tension.
There is dynamic braking system on each motor for emergency and normal stops.
Safety switches prevent the operation of the machine if the safety locks of the machine are open.  All electrical, electronic components are world-renowned brands. Invertors and switch materials are ABB brand.

TECHNICAL FEATURES:
* Machine  Model: S   600-6    T Ç M
* Block Structure: Vertical Block with Upper Transmission.
* Number of Blocks: 6 pcs.
* Block Diameter: 600 mm.
* Wire Drawing Speed: 6   m / san.
* Wire Input Diameter: Ø 6  mm.
*  Wire Output  Diameter: Ø 2,45 – 4,20 mm.
* Engine Power: 22  kw  each block. Inverter speed control.
* Block  Feature: GGG 70  nodular cast iron.
* Block  Coating: Drawing belt HARD FILLING.
* Rolling Mill Boxes Adjustment: Right, left.
* Rolling Mill Housing Size: Ø 43 x 27 mm.
* Drive System: specially designed Helical steel-toothed, with belt and pulley system.
* Braking: Pneumatic brake.
* Block  and Rolling Mill Cooling : with water.
* Drawing Direction: from left to right.
* Control Panels in Blocks: Machine start button, Machine stop button, brake on/off selector. Emergency stop, preliminary preparation button, Potentiometer.
* Main Control Panel:  Standard control  panel.
* Average Capacity: In 2,45 Mm Wire  750 Kg/Hour.

TECHNICAL DATA:
Machine  Model:  S 600 (COİLER) SEPET SARICI
Number of Drums: 1 pcs.
Drum Diameter: ø 600 mm  ( 60 rockwell hard metal coated).
Wire Coiling Speed: 6  mt / sec inverter speed controlled.
Motor  Power: 22 kw  380  volt. inverter speed control.
Wire Discharge System: goose neck basket rest.
Basket Height:1.200 mm.
Note: Our company may make changes in the technical features of the machine when required without prior notice.
Made in Turkey
FOUR-STATION WIRE DRAWING MACHINE WITH UPPER TRANSMISSION + COILING (S400-6)
GENERAL FEATURES:
Machine body is easy to carry thanks to its robust structure and centering elements required for assembly of block frames and offers quick installation.
Drawing heads, rolling mill boxes, drive motors, water feeding pipes, return coolant pipes, oil level indicators, safety caps are mounted to the body.
Drawing heads are GGG 70 nodular cast iron.
Drawing belt surface is HARD FILLING coated.
Drawing heads and rolling mill housing are cooled by cooling water.
Motor power depends on the diameter of wire to be drawn and the material structure.
Ac motors are controlled by inverters having torque control release technique.
Power transmission is made by belt and pulleys to specially designed reducers.
Motors are mounted at the back of the body vertically with a mechanism providing easy belt tension.
There is dynamic braking system on each motor for emergency and normal stops.
Safety switches prevent the operation of the machine if the safety locks of the machine are open.  All electrical, electronic components are world-renowned brands. Invertors and switch materials are ABB brand.

TECHNICAL FEATURES:
* Machine  Model: S   400-6    T Ç M
* Block Structure: Vertical Block with Upper Transmission.
* Number of Blocks: 6 pcs.
* Block Diameter: 400 mm.
* Wire Drawing Speed: 0 – 7,5 m /Mun
* Wire Input Diameter: : Ø 1,90 – 3,00 mm.
*  Wire Output  Diameter: :   Ø 0,80 – 1,50 mm.
* Engine Power: 7.5  kw  each block. Inverter speed control.
* Block  Feature: GGG 70  nodular cast iron.
* Block  Coating: Drawing belt HARD FILLING.
* Rolling Mill Boxes Adjustment: Right, left.
* Rolling Mill Housing Size: Ø 43 x 27 mm.
* Drive System: specially designed Helical steel-toothed, with belt and pulley system.
* Braking: Pneumatic brake.
* Block  and Rolling Mill Cooling : with water.
* Drawing Direction: from left to right.
* Control Panels in Blocks: Machine start button, Machine stop button, brake on/off selector. Emergency stop, preliminary preparation button, Potentiometer.
* Main Control Panel:  Standard control  panel.
* Average Capacity: In 1,20 Mm Wire  220 Kg/Hour

COILER  :
*  Number of Heads:  1 pcs 2-stage.
*  Head Diameter:  Ø 300 mm.
*  Head Material:  Steel.
*  Head Coating: Tungsten carbide.
*  Coiling Speed in conformity with the machine:  7 mt / sec.
*  Motor  Power:  7,5 kw. inverter speed control
*  Drive System:  Belt and pulley.
*  Wire Discharge System:  Inclined basket forced.
*  Rotating Table:  Pneumatic-driven 4-station rotating table.
*  Braking:  Pneumatic brake.
Note: Our company may make changes in the technical features of the machine when required without prior notice.
Made in Turkey
FOUR-STATION WIRE DRAWING MACHINE WITH UPPER TRANSMISSION + COILING (S400-6)
GENERAL FEATURES:
Machine body is easy to carry thanks to its robust structure and centering elements required for assembly of block frames and offers quick installation.
Drawing heads, rolling mill boxes, drive motors, water feeding pipes, return coolant pipes, oil level indicators, safety caps are mounted to the body.
Drawing heads are GGG 70 nodular cast iron.
Drawing belt surface is HARD FILLING coated.
Drawing heads and rolling mill housing are cooled by cooling water.
Motor power depends on the diameter of wire to be drawn and the material structure.
Ac motors are controlled by inverters having torque control release technique.
Power transmission is made by belt and pulleys to specially designed reducers.
Motors are mounted at the back of the body vertically with a mechanism providing easy belt tension.
There is dynamic braking system on each motor for emergency and normal stops.
Safety switches prevent the operation of the machine if the safety locks of the machine are open.  All electrical, electronic components are world-renowned brands. Invertors and switch materials are ABB brand.

TECHNICAL FEATURES:
* Machine  Model: S   400-6    T Ç M
* Block Structure: Vertical Block with Upper Transmission.
* Number of Blocks: 6 pcs.
* Block Diameter: 400 mm.
* Wire Drawing Speed: 0 – 7,5 m /Mun
* Wire Input Diameter: : Ø 1,90 – 3,00 mm.
*  Wire Output  Diameter: :   Ø 0,80 – 1,50 mm.
* Engine Power: 7.5  kw  each block. Inverter speed control.
* Block  Feature: GGG 70  nodular cast iron.
* Block  Coating: Drawing belt HARD FILLING.
* Rolling Mill Boxes Adjustment: Right, left.
* Rolling Mill Housing Size: Ø 43 x 27 mm.
* Drive System: specially designed Helical steel-toothed, with belt and pulley system.
* Braking: Pneumatic brake.
* Block  and Rolling Mill Cooling : with water.
* Drawing Direction: from left to right.
* Control Panels in Blocks: Machine start button, Machine stop button, brake on/off selector. Emergency stop, preliminary preparation button, Potentiometer.
* Main Control Panel:  Standard control  panel.
* Average Capacity: In 1,20 Mm Wire  220 Kg/Hour

COILER  :
*  Number of Heads:  1 pcs 2-stage.
*  Head Diameter:  Ø 300 mm.
*  Head Material:  Steel.
*  Head Coating: Tungsten carbide.
*  Coiling Speed in conformity with the machine:  7 mt / sec.
*  Motor  Power:  7,5 kw. inverter speed control
*  Drive System:  Belt and pulley.
*  Wire Discharge System:  Inclined basket forced.
*  Rotating Table:  Pneumatic-driven 4-station rotating table.
*  Braking:  Pneumatic brake.
Note: Our company may make changes in the technical features of the machine when required without prior notice.
Made in Turkey
BELL TYPE TWO-STATION ELECTRICAL WIRE ANNEALING FURNACE (F2ÇT)
GENERAL  FEATURES:
Outer body of the furnace is steel construction to serve for long years.
Furnace is manufactured with 2 baskets. Basket brackets are mounted on the floor at certain intervals and Furnace stops by all baskets thanks to four-motion mechanism.
The furnace moves upwards and downwards by reducer and screw. For the insulation of the furnace, fiberglass board is applied to first 3 layers, and Fiber Blanket is coated on the subsequent layers. Silicone gasket is placed on the furnace mouth circle to provide atmosphere control. Gasket is long-lasting thanks to water channels. Vacuum system and nitrogen gas compression system is applied to the Baskets on demand.

TECHNICAL  FEATURES:
* Machine Model: Bell Type 2-Station Electrical
* Outer body structure: Steel construction.
* Insulation: Fiberglass Fiber Blanket.
* Sealing elements: Silicone gasket on basket and furnace mouth.
* Basket Material: 301 – S Quality Stainless.
* Resistance structure: Lema resistance in  corrugated form.
* Control  system: 3 Zones thermocouple Thermostat control Full automatic.
* Total Electricity Power: 120 – 140 kw.
* Cooling system: Basket and Furnace circles are water cooled.
* Basket Diameter: 2100 mm.
* Basket capacity: Coil of 30, 5000 kg.
* Annealing Time : 4 Hours for 1st Basket.
* Basket Waiting Time inside Furnace: 4 Hours.
* Furnace Capacity:  1 Charge 5000 kg x 2 Charge = 10.000 kg / 24 Hours.
* Furnace Workspace:  10.000 x 15.000 x 6000 mm.
Note: Our company may make changes in the technical features of the machine when required without prior notice.
Made in Turkey

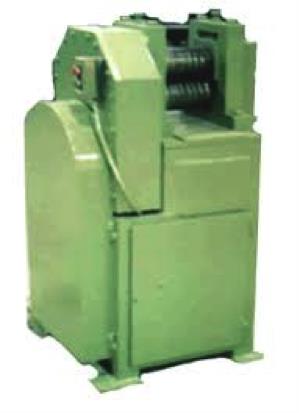

WIRE END OPENING, MACHINE (OPTIONAL) (S001)
The wires can be pulled in the wire drawing machine, crushing the tip of the wire to pass through the mill makes the thinning process.

TECHNICAL DATA:
Number of roller: 2 62 rokvel hardened.
Butter channel dimensions: ø 6-2 mm.
Motor power: 5.5 kW 380 volts.
Note: Our company may make changes in the technical features of the machine when required without prior notice.
Made in Turkey
BUTT WELDING MACHINE (OPTIONAL) (S002)
Can welding wire 3-8 mm
Note: Our company may make changes in the technical features of the machine when required without prior notice.
Made in Turkey
CLEANING ROLLS, MOUTH OPENING MACHINE (OPTIONAL) (S004)
Wire drawing mill are used, makes the revision process
Note: Our company may make changes in the technical features of the machine when required without prior notice.
Made in Turkey
