GENERAL FEATURES:
Machine body is easy to carry thanks to its robust structure and centering elements required for assembly of block frames and offers quick installation.
Drawing heads, rolling mill boxes, drive motors, water feeding pipes, return coolant pipes, oil level indicators, safety caps are mounted to the body.
Drawing heads are GGG 70 nodular cast iron.
Drawing belt surface is HARD FILLING coated.
Drawing heads and rolling mill housing are cooled by cooling water.
Motor power depends on the diameter of wire to be drawn and the material structure.
Ac motors are controlled by inverters having torque control release technique.
Power transmission is made by belt and pulleys to specially designed reducers.
Motors are mounted at the back of the body vertically with a mechanism providing easy belt tension.
There is dynamic braking system on each motor for emergency and normal stops.
Safety switches prevent the operation of the machine if the safety locks of the machine are open. All electrical, electronic components are world-renowned brands. Invertors and switch materials are ABB brand.
TECHNICAL FEATURES:

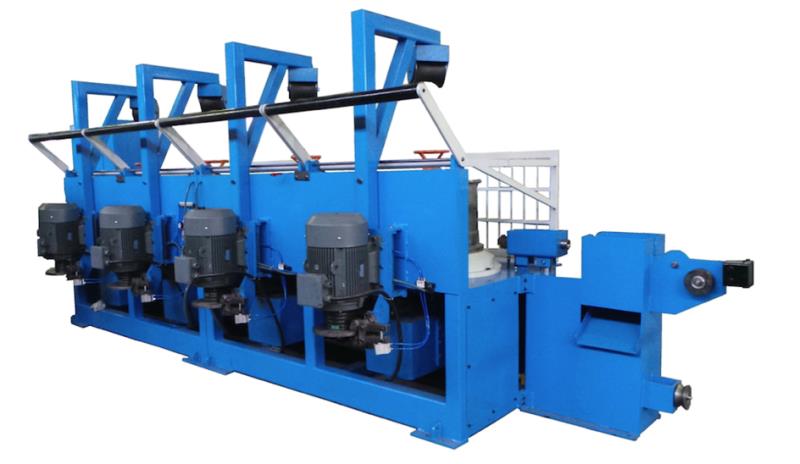

* Machine Model: S 400-6 T Ç M
* Block Structure: Vertical Block with Upper Transmission.
* Number of Blocks: 6 pcs.
* Block Diameter: 400 mm.
* Wire Drawing Speed: 0 – 7,5 m /Mun
* Wire Input Diameter: : Ø 1,90 – 3,00 mm.
* Wire Output Diameter: : Ø 0,80 – 1,50 mm.
* Engine Power: 7.5 kw each block. Inverter speed control.
* Block Feature: GGG 70 nodular cast iron.
* Block Coating: Drawing belt HARD FILLING.
* Rolling Mill Boxes Adjustment: Right, left.
* Rolling Mill Housing Size: Ø 43 x 27 mm.
* Drive System: specially designed Helical steel-toothed, with belt and pulley system.
* Braking: Pneumatic brake.
* Block and Rolling Mill Cooling : with water.
* Drawing Direction: from left to right.
* Control Panels in Blocks: Machine start button, Machine stop button, brake on/off selector. Emergency stop, preliminary preparation button, Potentiometer.
* Main Control Panel: Standard control panel.
* Average Capacity: In 1,20 Mm Wire 220 Kg/Hour
COILER :
* Number of Heads: 1 pcs 2-stage.
* Head Diameter: Ø 300 mm.
* Head Material: Steel.
* Head Coating: Tungsten carbide.
* Coiling Speed in conformity with the machine: 7 mt / sec.
* Motor Power: 7,5 kw. inverter speed control
* Drive System: Belt and pulley.
* Wire Discharge System: Inclined basket forced.
* Rotating Table: Pneumatic-driven 4-station rotating table.
* Braking: Pneumatic brake.
Note: Our company may make changes in the technical features of the machine when required without prior notice.
Made in Turkey
