GC400 SEMI-AUTOMATIC CROISSANT PRODUCTION PLANT CAPACTY 1320-4000 UNIT HOUR

Category
:
MACHINES FOR CROISSANT (EKO)
Product Name
:
GC400 SEMI-AUTOMATIC CROISSANT PRODUCTION PLANT CAPACTY 1320-4000 UNIT HOUR
Product Description
:
You can prepare delicious flavors with this food having very wide product range as plain dough rolled as thin sheets or by adding marmalade, chocolate-based products between dough. This product is designed for companies producing all pastries in various capacities and shapes.

Request a Bid
Required Field:200 m2
Total Electricity Consumption:60 KW / 380 V/ 3 PHASE
Origin:ITALY & TURQUE
Capacity:Unit hour 1320-4000
Number of Employees:4
Required / Air, Water and Fuel:6 Bar Air Presseure & Natural Gas
Products
AUTOMATIC SPIRAL MIXER (OTTO 200)
OTTO mixers with fixed bowl are designed to knead the best dough for traditional bread and other bakery products in the desired amount depending on the capacity of the bowl. OTTO mixer offers a large variety of dough types and the opportunity to knead dough in a short time for the bakers who choose this product.
Powerful motor
Regular and steady mixing, poly-V belt-pulley system allowing for silent operation
Stainless-steel cover making it easier to reach the dough
Ergonomic control panel with operational safety
Easy to move around the working area
Hygienic and easy-to-clean stainless steel bowl, spiral and hook bar system

Automatic Spiral Mixer: Otto 200
Dough Capacity (Kg: 200
Flour Capacity (Kg): 125
Bowl Diemensions Øxh (mm): 900*470 mm
Dimenesions of Machine (mm) : 930*1415*1410 mm
Electric Power (kw): 11.5
Weight (kg): 740
Note: Our company reserves the right to make changes in technical specifications of the machines as deemed necessary without prior notice..
Made in Turkey
AUTOMATIC DOUGH SHEETERS (SZ 507)
Our puff pastry machine is functional, sturdy and easy to use. It is a reliable piece of equipment which will adapt to the work requirements of medium and big productions. All the automatica models are equipped of 5,7” colored touch screen panel which allows to work in three modes: manual/semiautomatic/automatic. In this way the machine’s programming becomes easy and intuitive for the operator. It is possible to register 50 recipes with different production cycles. The machine can have as optionals the flour duster and winder that let to accelerate lavoration times.

Technical specifications 6514
Lenght A: 3960-200*
Width B: 1035
Height C: 1460-200**
Belt lenght D: 1400
Belt width E: 650
Work top h. from floor – F: 945
Meas. cyl. max. Aperture: 60
Measuring cyl. Diameter: 80
Motors: power hp: 1,5
Motors: absorption kw/hd: 1,1
Gross weight kge: 350
Net weight kg: 330
* Consider -200 mm if your machine doesn't include winder.
** Consider -200 mm if your machine doesn't include duster.
Note: Our company reserves the right to make changes in technical specifications of the machines as deemed necessary without prior notice..
Made in Italy
AUTOMATIC FLOUR DUSTER (OPTIONAL) (SZ 507U)
Note: Our company reserves the right to make changes in technical specifications of the machines as deemed necessary without prior notice..
Made in Italy
AUTOMATIC WINDER (OPTIONAL) (SZ 507S)
Note: Our company reserves the right to make changes in technical specifications of the machines as deemed necessary without prior notice..
Made in Italy
CROISSANT PASTRY MACHINE (GC400)
The Model GC 400 unit, made entirely of AISI 304 stainless steel, has been designed to ensure superior results in croissant production. The sheet of dough, rolled with the rolling pin, is laid on the feed table. Two side disks trim the dough and the waste falls into a special container. The dough is rolled by the gauging cylinders to ensure uniform weight, and the dough sheets are joined together to enable continuous machining. The triangles are cut in two stages, separated and conveyed automatically to the curling unit that rolls up the product as if it were done by hand.

Technical Specifications
Capacty : 4000 unit/heure
Unit lenght A: 1050
Belt lenght B: 1000
Lenght of unit with belt C :2050
Lenght of curling unit D :560
Lenght of unit/belt E: 1185
Overall lenght of curling unit F: 780
Overall lenght G: 2830
Belt width H:540
Belt width I: 590
Belt width L: 250
Unit width M: 770
Curling unit width N:640
Overall width O:1550
Wheels height P: 125
Belt/unit height Q: 1030
Height of pan from floor R: 730
Overall height of curling unit S: 1050
Overall height of unit from floor T: 1450
Net weight: 500 kg
Electric power: 1.5 kw
Voltage on request 400/230
Packing P.1000xL.200xH.1600
Gross weight: 590 kg
Note: Our company reserves right to change technical specifications of the machines without giving prior notice in case it deems necessary.
Made in İtaly

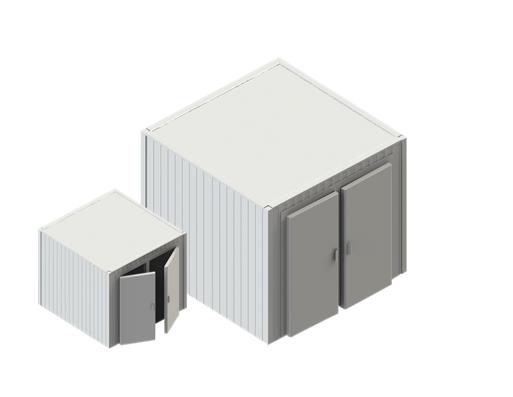

CROISSANT STORAGE RESERVOIR (KD8)
8 Trolleys
8 cm inside chromium, outside poly locked
Cornered cold storage depot-accessories
Note: Our company reserves right to change technical specifications of the machines without giving prior notice in case it deems necessary.
Made in Turkey.
FERMENTATION CHAMBER (F80*100)
SYSTEM is for fermentation process of the dough, and humidification (cold steam system) and heating process. It has circulation system for homogenous distribution of humidification and heating to each point of the chamber and fermentation of dough at the same rate.
With capacity of 6 pieces of 80*100 pan trolley, 8 cm polyurethane stainless panel thickness, 2 doors, Corner panel
Note: Our company reserves right to change technical specifications of the machines without giving prior notice in case it deems necessary.
Made in Turkey
ROTARY RACK OVEN (ROTA 609)
60*80 cm pan size , rear hell, manual dashboard, for more stable cooking while baking the car's property is to rotate to the right and to the left,  to reduce heat loss through the furnace bottom heat insulation, manufactured from 310 grade stainless steel firebox, hell elongated flame path system for maximum heat efficiency,  3 kw of electic power, Italian  RIELLO brand burner natural gas.
Baking Tray Size (mm): 600*800
Number Of Trays: Max 18
Baking Area: Max 8,6
Rotating Table: Yes
Type of Energy Transmission  Convection
Width A (mm): 1730
Depth B (mm): 1950
Height C (mm): 2300+220
Electrical Power (kw): 5
Power (kw): 70
Power (kcal/h): 60.000
Weight (kg): 2.100
Burner  : Riello
Pressure of Gas (mbar): 50-300
Heating Mode: Gas, Diesel, Electric
Control Panel: Manuel
Note: Our company reserves the right to make changes in technical specifications of the machines as deemed necessary without prior notice.
Made in Turkey
8 UNIT WAGON OVEN (TT609)
8 Unit
20*30*1,5 mm stainless steel tubing and 2 mm shelves made of stainless steel, storeys may be reduced and increased optionally, number of floors 18,  60*80 cm according to pan
Note: Our company reserves the right to make changes in technical specifications of the machines as deemed necessary without prior notice.
Made in Turkey
216 UNIT ALUMINIUM PAN FOR CROISSANTS (T609)
Note: Our company reserves the right to make changes in technical specifications of the machines as deemed necessary without prior notice.
Made in Turkey
