It operates automatically according to the size selected from the screen through servo motor system, it is made easily from the screen on the desired size changes, it is accessed to many data spontaneously through the industrial PC and touch screen controlling the machine, process of breaking from Perforate places is made automatically through Servo Motor.
Main Features:
Operating Speed Bag/Mun.max .:300-500 (Depending on Bag length)
Print range: 750-800 mm
Bag size (min. - Max.): 170-680 mm
Bag width (min - max): 70-350 mm
Blower Depth: 120 – 50 – 80 mm
Bottom sealing: 10 mm – 40 mm
Coil diameter (max): 1200 mm
Paper Width: 900 mm
Max Inside the main coil Diameter: 76 mm
Paper Weight in Gram: 25 – 100 gr /m2
Power requirement KW: 380 3 Phase 24 KW
Machine Dimensions:
Machine Height: 7500 mm
Machine Width: 2000 mm
Machine Height: 2000 mm
Machine Weight: 4,000 kg + 500 kg (Including spare parts)

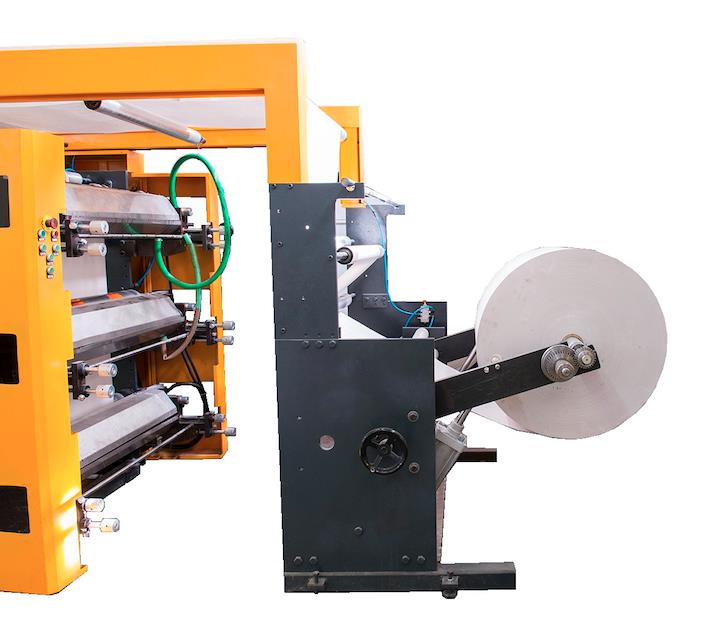

Unit of Coil Warping:
Air brake control: -
Mechanical brake: -
Magnetic power brake: Yes
EPC controller: Yes
Driving Motion: With Electrical Motor
Synchronous belt: Yes
Synchronizing wheel: Yes
Bearing: Yes-SKF
Guide roll: -
Unwinding air shaft: Yes
Loading Coil: Yes by Electrical Motor
Meter Counter: Yes

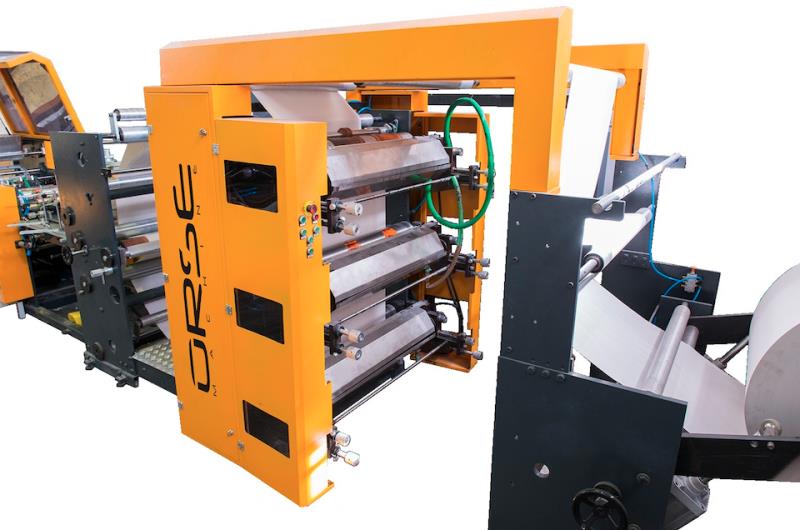

Printing Flexo Unit:
Color mark tracking photo-sensor: -
Position fixing photo-sensor: -
Low voltage appliance: -
EPC Tension Control System: Yes
Automatic constant tension: Yes
EPC motor: Yes
Infrared ray induction: -
Register Control: -
Servo Kontrol: Optional
Independent movement of paint rollers: Yes-Elektircal Motor
Infrared ray induction: Yes
Coupling Unit: Yes
Lamination unit: Optional
Printing Rolls: Stell Anilox Roller
Folding and Blowing and Moulding Unit:
Control system:PLC
Programmable logic controller (PLC): Yes-Omron
Mold change and settings: Change with screen
Touch Screen: Yes
Servo motor: Yes- 6 Unit
Servo driver: Yes
Main motor: Electrical Motor
Bottom glue: Cold Glue
Tube forming main structure: Mechenical System
Peforation blade: -
Peforation: Perforating shaft is rotated by Servo Motor System. It is possible to make adjustments on the touch screen.
Simple Blade: -
Windowed Bag: Yes
Package Counter: Yes
Hot Melt Glue Applicators: Optional
Bellows / without bellows Package Preview: Yes
Moulds of Bag: -
The brand of materials:
Servo motors: Omron or ABB we prefer Omron brand PLC or motion Control :
if desired Omron brand hot glue: Buhnen or Robotech depending on the
country where it goes. Register Control: Japanese or German firm.
Bearings: SKF
Magnetic power brake: Dutch origin
Pressure Control: Turkish origin
Other electrical materials: Schnider German Company
Note: Our company reserves the right to make changes in technical specifications of the machines as deemed necessary without prior notice.
Made in Turkey
