SM002 Two Colors Flekso printing machine with bobbin connection mechanism, consists of three main units, as pattern, folding and gluing.

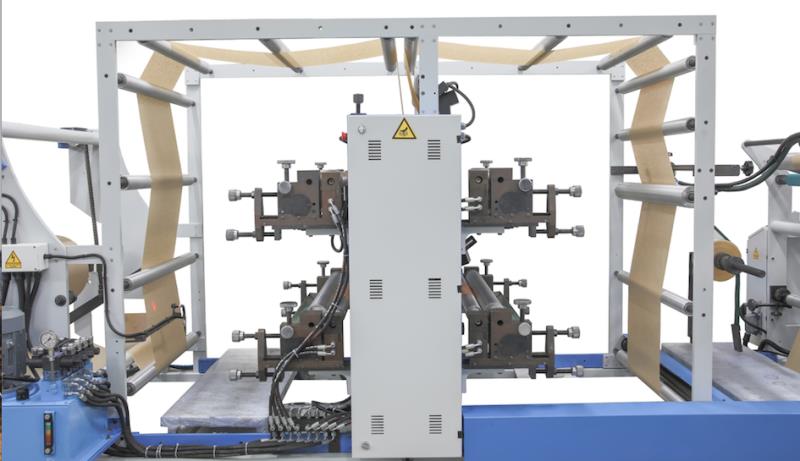

Flekso printing machine makes two colors aniline dye or water based printing. The complete Flekso machine can be moved to the right and left as well as up and down, color adjustment can be made without stopping the printing at the moment of printing. The bobbin transmission unit is a block, on which a main paper bobbin, a cellophane bobbin, back starching unit and tank color adjusting system, which connect the printing house and the nylon bag on the entrance to the nylon bag section, are installed. Nylon bag folding shaft and wheels, ironing parts, molding, auto-adjustable side bellow apparatuses, carrier rubber cylinder with bands, tambours with six stations and pliers under these bands are also available. There is a collecting platform on the front part and a sliding material docking unit on the middle part of it.
Our machine is able to produce 240-430 paper bags per minute. The grammage of the papers, which are used in the production, varies between 35-90g. The printing surface of paper is 79 cm, the combinations, which vary between 150-580 mm in length and between 70-300 mm in width can also be arranged.
Main Features:
Operating speed Bag/Mun.max .: 240-430 (Depending on Bag length)
Print Range: 750-800 mm
Bag size (min. - Max.) (A): 150-580 mm
Bag width (min - max) (B): 70-350 mm
Blower Depth (C): 15 mm – 50 mm
Bottom sealing:10 mm – 40 mm
Coil diameter (max) (B): 1200 mm
Coil Width (A): 750 mm
Max Inside the main coil Diameter: 76 mm
Paper Weight in Gram (C): 35 – 70 gr /m2
Power requirement KW: 380 3 Phase 5 KW
Machine dimensions:
Machine Height: 8600 mm
Machine Width: 2100 mm
Machine Height: 1900 mm
Machine Weight: 4,000 kg + 800 kg (Including spare parts)
Unit of Coil Warping:
Air brake control: Optional
Mechanical brake: Yes
Magnetic power brake: -
EPC controller: Yes
Driving Motion: With Electrical Motor
Synchronous belt: Yes
Synchronizing wheel: Yes
Bearing: Yes-SKF
Guide roll: -
Unwinding air shaft: Yes
Loading Coil: Yes by Electrical Motor
Meter Counter: Yes
Printing Flexo Unit:
Color mark tracking photo-sensor: -
Position fixing photo-sensor: -
Low voltage appliance: -
EPC Tension Control System: -
Automatic constant tension: -
EPC motor: -
Infrared ray induction: -
Register Control: -
Servo Control: Optional
Independent movement of paint rollers : Move with hydraulics
Infrared ray induction -
Coupling Unit: -
Lamination unit: -
Printing Rolls: Stell Anilox Roller
Folding and Blowing and Moulding Unit:
Control system: PLC
Programmable logic controller (PLC): -
Mold change and settings: Mechanical Manual Change
Touch Screen: Yes
Servo motor: -
Servo driver: -
Main motor: Electrical Motor
Bottom glue: Cold Glue
Tube forming main structure: Mechenical System
Peforation blade: Percussion system
Peforation: -
Simple Blade: -
Windowed Bag: Yes
Package Counter: Yes
Hot Melt Glue Applicators : Optional
Moulds of Bag: 4 Unit (include the price)
The brand of materials:
Servo motors: Omron or ABB we prefer Omron brand PLC or motion Control :
if desired Omron brand hot glue: Buhnen or Robotech depending on the
country where it goes. Register Control: Japanese or German firm.
Bearings: SKF

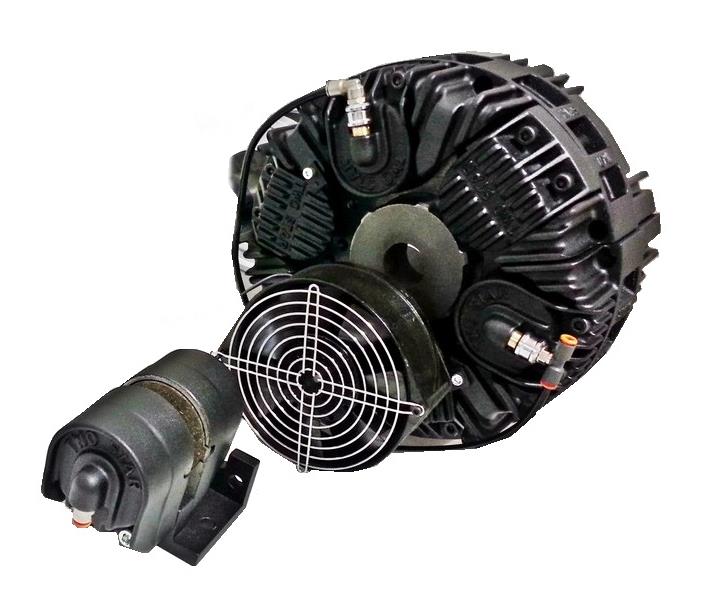

Magnetic power brake: Dutch origin
Pressure Control: Turkish origin
Other electrical materials: Schnider German Company
Machine is painted by water and corrosion resistant two-component epoxy primer and paint.
Note: Our company reserves the right to make changes in technical specifications of the machines as deemed necessary without prior notice.
