PRO-D 2023 VERTICAL PACKAGING SYSTEM + 4 LINEAR HEAD-SCALE (50-2000 gr.)

Category
:
PACKAGING VERTICAL SYSTEMS (PRO)
Product Name
:
PRO-D 2023 VERTICAL PACKAGING SYSTEM + 4 LINEAR HEAD-SCALE (50-2000 gr.)
Product Description
:

Capacity of packaging is between 20 gr - 2000 gr. On the machine;  Volumetric Filling Unit, substituting legumes such as lentils, beans, rice products, like sesame seeds, black cumin, pine nuts, thyme, granular seasoning products, sunflower seeds, peanuts, roasted chickpeas, dried nuts,  Screw Filling Systems, substituting red pepper, black pepper, flakes, starch, mix flour, coffee, cream, additives and pesticides can be packed, Four-Headed Linear Electronic Weighing System substituting  powdered sugar, pulses, nuts etc products, Multiheaded 10 or 14 Head Multihead Electronic Weighing System ,  substituting  nuts, chips, pickles, olives, apricots, can be packaged as sensitive products such as fittings

Request a Bid
Required Field:60 m2
Total Electricity Consumption:5 KW – 380 Volt / 3 Phase 50 Hz
Origin:TURQUE
Capacity:35 PAQUETS / MINUTE
Number of Employees:1
Required / Air, Water and Fuel:6 Bar Air Presseure 300 lt
Products

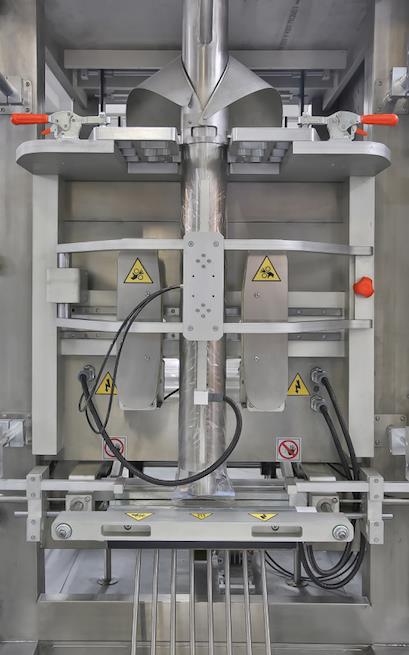

VERTICAL PACKAGING MACHINE (PRO-D 2023)
Chrome Body S/S 304
Servo Motor
Ce Security
Automatic Adjustable Tower Film System
Automatic Film Sliding Protection System
Vacuum Belt
Air Bobbin Fixing
Standup Package Fan System
Anti-Static Bobbin
Upper Weight Receiving System
Lower Weight Receiving System
Film Tensioning- Warp System
Transparent Fiber Glass  Cover
7'' Touch Screen
Mobile Neck  - Pipe
Lighting Inside Board
Auto-Film Centering System
Electronic Driver:  OMRON Symac NJ
Servo Motorlar: Omron Symac Nj Serisi
Omron PID Temperature Controller
Omron 7 Inches From Japan
Pneumatics Component: SMC from Japan
Other Consumables: Shinder From Germany
All The Bearing Should Be SS 304

TECHNICAL FEATURES: Model  PRO-Q 2023
Maximum Packaging Speed (package/ minute): 65 package/ minute
Package Length (min. - max.) : 40 - 360 mm
Package Width (min. - max.):  30 - 240 mm
Diameter of Film Bobbin (max.) : 400 mm
Width of Film Bobbin: 520 mm

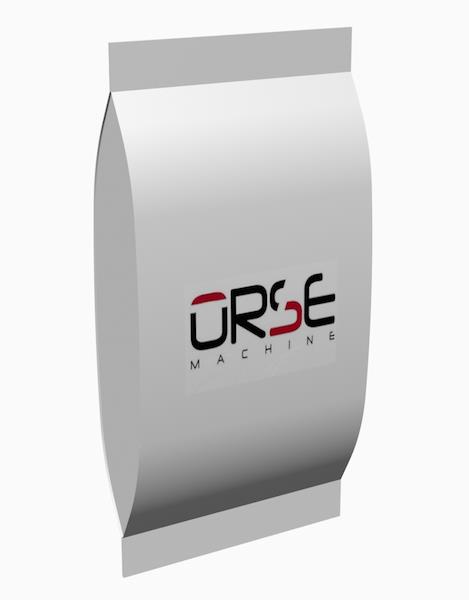

Package Type: pillow, Bendy and Standup packages of Quatro
Thickness of Film : 0,04--0,09 mm
Air Consumption (m / minute) :  0,8 Mps 0,3 m / min
Voltage: 3,5 KW 220 V 50 / 60 Hz
Net Weight : 900 Kg
Packaging Materials: Polypropylene, polyethylene, All Films With Lamination, Barrier Film, Water - Soluble film
Dimensions
Width : 1570 mm
Length: :2600 mm
Height : 1915 mm
Made in Turkey
Note: Our company, if requires, may make changes in technical specifications of machine without prior notice.
INDUSTRIAL METAL DETECTOR FOR FREE-FALLING PRODUCT APPLICATIONS (Optional Feature) (THS/G21E)
Very high sensitivity to all magnetic and non-magnetic metals, including stainless steel
Autolearn and automatic tracking of the product effect
Designed to inspect powders, liquids, granules and other loose materials in free-falling applications
Full compliance with HACCP criteria
250 product data memories
Completely housed in AISI 316L stainless steel
Very high reliability
Note: Our company, if requires, may make changes in technical specifications of machine without prior notice.
Made in Italy
PERFORATION ON PACKAGE (Optional Feature) (2023-1)
Made in Turkey
Note: Our company, if requires, may make changes in technical specifications of machine without prior notice.
NITROGEN PRACTICE INSIDE PACKAGE (Optional Feature) (2023-2)
Deterioration process of product is delayed by means of pumping gas inside product.
It prevents the creating of microorganisms.
It prevents the crumpling of package and protects sensitive products against all damages.
It prevents fermentation of the product as well as preventing or delaying of oxidation reactions.
It prevents appearing of undesirable tastes and diffusing of undesirable odors.
Applicable areas ; milk powder, coffee, chips, nuts and dried fruits etc..
Made in Turkey
Note: Our company, if requires, may make changes in technical specifications of machine without prior notice.

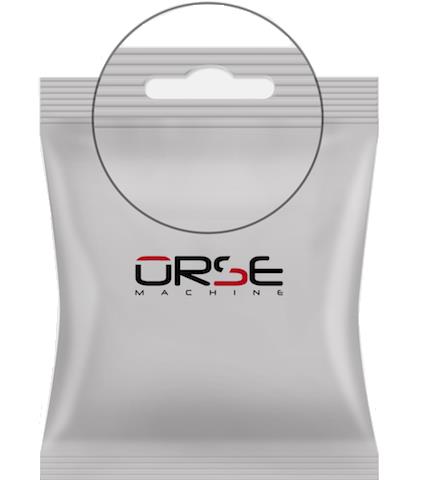

EURO-PERFORATED HANGER APPLIED JAW (Optional Feature) (2023-3)
Made in Turkey
Note: Our company, if requires, may make changes in technical specifications of machine without prior notice.

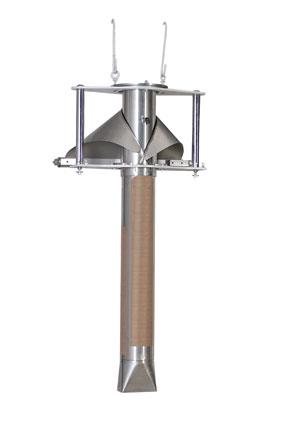

ADDITIONAL PIPE NECK (Optional Feature) (2023-4)
Forming tube for stand up packages: This is the forming tube required and used for receving packages in the stand up form. In case of each change in the product weight or width, additional forming tube is needed.
Note: Our company, if requires, may make changes in technical specifications of machine without prior notice
Made in Turkey
5+1 CONNECTED BAG TECHNOLOGY (Optional Feature) (2023-6)
İt has the feature of making packs which are connected to each other that is a function of PLC during machine packagaing. Accourding to the film design it can make 4+1 or 5+1 logo. Packs are connected to each other by knurled connection it makes the pack stand stylish and didderently on the shelf. Also, smooth parting from each other brings a further convenience of use.
Made in Turkey
Note: Our company, if requires, may make changes in technical specifications of machine without prior notice.
THERMAL TRANSFER OVERPRINTERS (Optional Feature) (SVM53-70-I)
The high performance, low cost thermal transfer printers are versatile enough for printing fixed and variable text, data and graphics. It is ideal for reproducing bar codes, real time, sell-by dates, batch numbers, prices, source codes and much more. Two component models of brackets (Intermittent & Continuous)  can be easily integrated to the machines such as vertical and horizontal form-fill-seal systems, primary labellers, thermo formers and overwrapping equipments. The units are suitable for all intermittent and continuous applications within the food, pharmaceutical cosmetics and automobile spare parts industries has the capability to code all kinds of 1D barcodes and 2D datamatrix codes..

TECHNICAL SPECIFICATIONS
* 53mm x 75mm Intermittent mode print area.
* 600 meter ribbon capacity.
* Resolution 300 dpi (12 dots / inch)
* Print Speed up to 450 mm/sec.
* 7" touch panel color control screen.
* 90 °, 180 °, 270 ° rotate features of the templates.
* Memory: 5000 Templates can be stored in the control screen memory.
* Power Supply: 110/220V 50/60 Hz.
* Programming: Real Date/Time, Text, 1D Barcode, 2D Barcode, Logo, Counter (Serial No), Shift Code, Shape, Currency.
* Barcode Types: 1D Barcodes (EAN-13, EAN-8, CODE128, CODE39, ITF, 2of 5, ITF 14, CODABAR, UPC-A, UPC-E), 2D Barcodes (Datamatrix, QR Codes, PDF 417, Aztec code Semacode, Macro PDF 417).
* Communication: RS-232 (PC), LAN, USB
* PC Programme: Sayasis
Note: Our company, if requires, may make changes in technical specifications of machine without prior notice
Made in Turkey
PACKAGE CONVEYOR (Optional Feature) (CB1000)
It is used to carry the packaged products by machine to packing unit after they are taken out from machine.
Standard model carries the products that are taken out from machine 200 cm forward and a height of 80 cm.
Made in Turkey
Note: Our company, if requires, may make changes in technical specifications of machine without prior notice.
4 LINEAR HEAD-SCALE LINEAR SYSTEM  (JW-AX4)
SPECIFICATIONS
4 pieces small linear vibrators
4 pieces big linear vibrators
4 pieces load-cell weighing pan
PLC controlled system
TECHNICAL SPECIFICATIONS
Weighing range: 50-2000 gr.
Speed:  45 weighing / min.
Power requirement : 220V, 50Hz, mono phaze
Accuracy: ± 5 gr
Scale volume: 2 liters
Made in Turkey
Note: Our company, if requires, may make changes in technical specifications of machine without prior notice.

ELEVATOR AND VIBRATORY FEEDER (Optional Feature) (EL-4)
Carrying capacity:0-10 m³/hour (calculated when bucket is full at the rate of  %50)
Outlet altitude:4000mm
Power:2200W 380V/220 50Hz/60Hz Single/3 Phase
Chain Wheel: Japan KANA Stainless Steel  Chain Wheel
Bucket Material: PP Plastic (it may be used for food),
Capacity1.8 L
Control: Frequency Convertor Control
Weight :400kg
Vibrator
Capacity of Vibrator:  0-10m³/h
Power: 220V/60Hz Single Phase, 250W
Frame Material：Stainless Steel  Chain 304
Capacity of Reservoir：120L
Weight: 60Kg
Made in Turkey
Note: Our company, if requires, may make changes in technical specifications of machine without prior notice.
