PRO-D 2023 VERTICAL PACKAGING SYSTEM + 10 HEAD WITH SCALE (50-1000 gr.)

Category
:
PACKAGING VERTICAL SYSTEMS (EKO)
Product Name
:
PRO-D 2023 VERTICAL PACKAGING SYSTEM + 10 HEAD WITH SCALE (50-1000 gr.)
Product Description
:
Machine has packaging capacity between 20 gr and 1000 gr. finally products such as dried fruit, chips, pickle, olive, apricot and fittings  may sensitively be packaged by means of placing multi-head electronic scale system 10 or 14 heads on machine

Request a Bid
Required Field:60 m2
Total Electricity Consumption:5 KW – 380 Volt / 3 Phase 50 Hz
Origin:TURQUE
Capacity:35 PAQUETS / MINUTE
Number of Employees:1
Required / Air, Water and Fuel:6 Bar Air Presseure 300 lt
Products

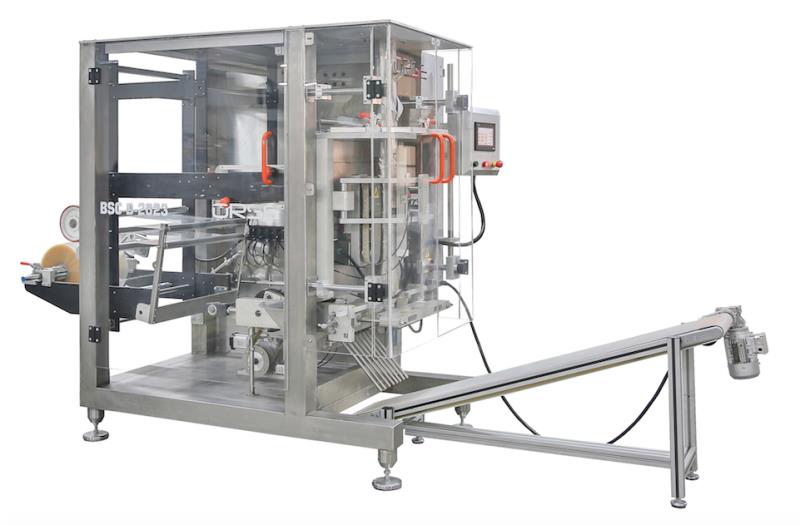

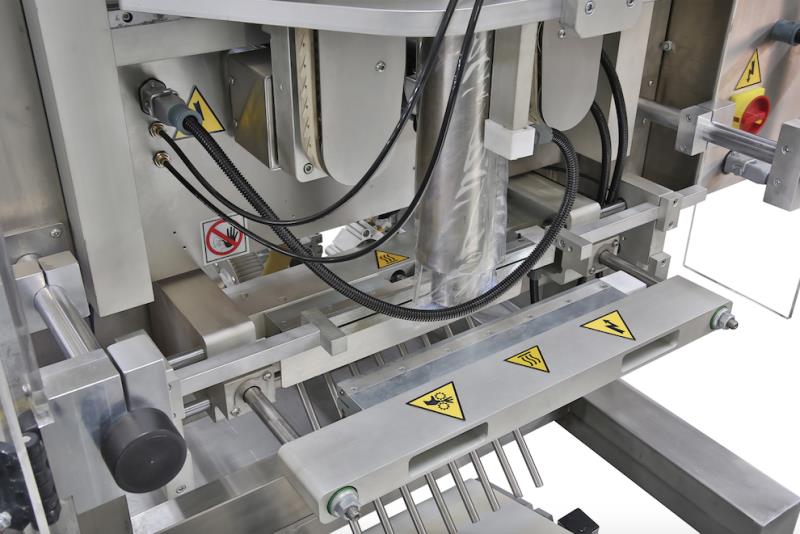

VERTICAL PACKAGING MACHINE (BSC-D 2023)
Chrome Body S/S 304
Servo Motor
Ce Security

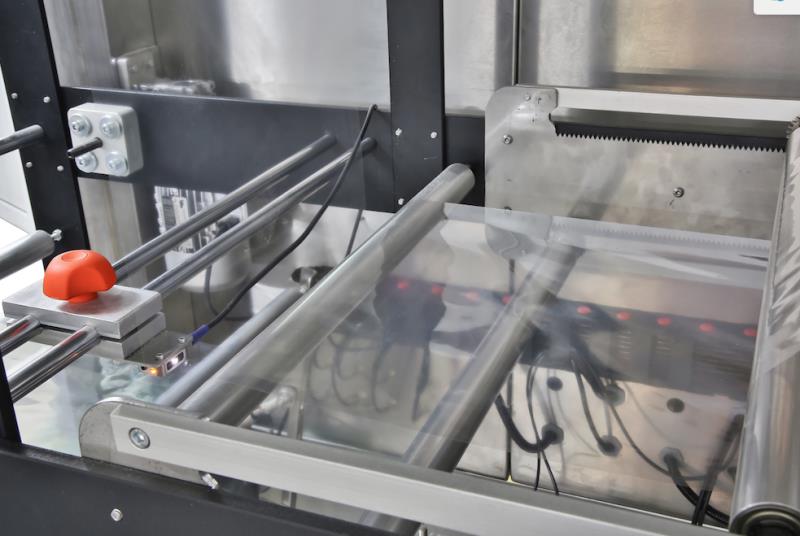

Automatic Adjustable Tower Film System
Air Bobbin Fixing
Standup Package Fan System
Film Tensioning- Warp System
Transparent Fiber Glass  Cover
7'' Touch Screen
Mobile Neck  - Pipe
Auto-Film Centering System

TECHNICAL FEATURES: Model  BSC-D 2023
Maximum Packaging Speed (package/ minute): 45 package/ minute
Package Length (min. - max.) : 40 - 360 mm
Package Width (min. - max.):  30 - 240 mm
Diameter of Film Bobbin (max.) : 400 mm
Width of Film Bobbin: 520 mm
Package Type: pillow, Bendy and Standup packages of Quatro
Thickness of Film : 0,04--0,09 mm
Air Consumption (m / minute) :  0,8 Mps 0,3 m / min
Voltage: 3,5 KW 220 V 50 / 60 Hz
Net Weight : 900 Kg
Packaging Materials: Polypropylene, polyethylene, All Films With Lamination, Barrier Film, Water - Soluble film
Dimensions:
Width : 1570 mm
Length: :2600 mm
Height : 1915 mm
Note: Our company, if requires, may make changes in technical specifications of machine without prior notice.
Made in Turkey
PERFORATION ON PACKAGE (Optional Feature)  (2023-1)
Made in Turkey
Note: Our company, if requires, may make changes in technical specifications of machine without prior notice.
NITROGEN PRACTICE INSIDE PACKAGE (Optional Feature)  (2023-2)
Deterioration process of product is delayed by means of pumping gas inside product.
It prevents the creating of microorganisms.
It prevents the crumpling of package and protects sensitive products against all damages.
It prevents fermentation of the product as well as preventing or delaying of oxidation reactions.
It prevents appearing of undesirable tastes and diffusing of undesirable odors.
Applicable areas ; milk powder, coffee, chips, nuts and dried fruits etc..
Made in Turkey
Note: Our company, if requires, may make changes in technical specifications of machine without prior notice.
EURO-PERFORATED HANGER APPLIED JAW (Optional Feature)  (2023-3)
Made in Turkey
Note: Our company, if requires, may make changes in technical specifications of machine without prior notice.
ADDITIONAL PIPE NECK (Optional Feature)  (2023-4)
Forming tube for stand up packages: This is the forming tube required and used for receving packages in the stand up form. In case of each change in the product weight or width, additional forming tube is needed.
Note: Our company, if requires, may make changes in technical specifications of machine without prior notice
Made in Turkey
THERMAL TRANSFER OVERPRINTERS (Optional Feature) (SVM32-50-I)
The high performance, low cost thermal transfer printers are versatile enough for printing fixed and variable text, data and graphics. It is ideal for reproducing bar codes, real time, sell-by dates, batch numbers, prices, source codes and much more. Two component models of brackets (Intermittent & Continuous)  can be easily integrated to the machines such as vertical and horizontal form-fill-seal systems, primary labellers, thermo formers and overwrapping equipments. The units are suitable for all intermittent and continuous applications within the food, pharmaceutical cosmetics and automobile spare parts industries has the capability to code all kinds of 1D barcodes and 2D datamatrix codes.

TECHNICAL SPECIFICATIONS
* 32mm x 50mm Intermittent model print area.
* 600 meter ribbon capacity.
* Resolution 300 dpi (12 dots / inch)
* Print Speed up to 400 mm/sec.
* 4.3" touch panel color control screen.
* 90 °, 180 °, 270 ° rotate features of the templates.
* Memory: 5000 Templates can be stored in the control screen memory.
* Power Supply: 110/220V 50/60 Hz.
* Programming: Real Date/Time, Text, 1D Barcode, 2D Barcode, Logo, Counter (Serial No), Shift Code, Shape, Currency.
* Barcode Types: 1D Barcodes (EAN-13, EAN-8, CODE128, CODE39, ITF, 2of 5, ITF 14, CODABAR, UPC-A, UPC-E), 2D Barcodes (Datamatrix, QR Codes, PDF 417, Aztec code Semacode, Macro PDF 417).
* Communication: RS-232 (PC), LAN, USB
Note: Our company, if requires, may make changes in technical specifications of machine without prior notice
Made in Turkey
PACKAGE CONVEYOR (Optional Feature)  (CB1000)
It is used to carry the packaged products by machine to packing unit after they are taken out from machine. Standard model carries the products that are taken out from machine 200 cm forward and a height of 80 cm.
Made in Turkey
Note: Our company, if requires, may make changes in technical specifications of machine without prior notice
MULTI – HEAD SCALE( 10 HEADS) (JW-A10)
Properties:
Vibrating Center Feeder.
10 linear vibrators.
10 memory heads.
10 weighing heads.
Step motor controlled  heads
Twin-engined timing  heads
Content of System:
Turkish, colored and touch screen (+2 language option)
Easy adjustable and usable
Easily and rapidly transfer from one product to other product
Automatic Cleaning and unloading of product
Unloading option more than one for large basis weights.
By-pass property (It does not send the faulty weighing for packaging, optional )
Automatic tare at the ending of determined weighing number.
Communication Via Printer or Computer.
Statistical data
Receiving of Total Weighing
Real time clock
Programming
Construction :
Rigid Body Vibration Preventive .
Complete  ANSI 304 Cr-Ni has been manufactured by stainless steel.
Straight or perforated sheet metal on all surfaces  on which product touches
Assembly, disassembly and cleaning  easily
Suitable for CE standards of European Union

TECHNICAL SPECIFIATIONS
Weighing range:50-1000 gr.
Speed:  80 weighing /minute (depending on product and its weight)
Power requirement : 220V, 50Hz, mono phase
Sensitivity : 0.5 gr.
Volume of head: 1.3 liter
Made in China
Note: Our company, if requires, may make changes in technical specifications of machine without prior notice.
HEAD APPLICATION OF 2.5 LT. ON SCALE (Optional Feature)  (JW-A102.5)
Made in Turkey
Note: Our company, if requires, may make changes in technical specifications of machine without prior notice.

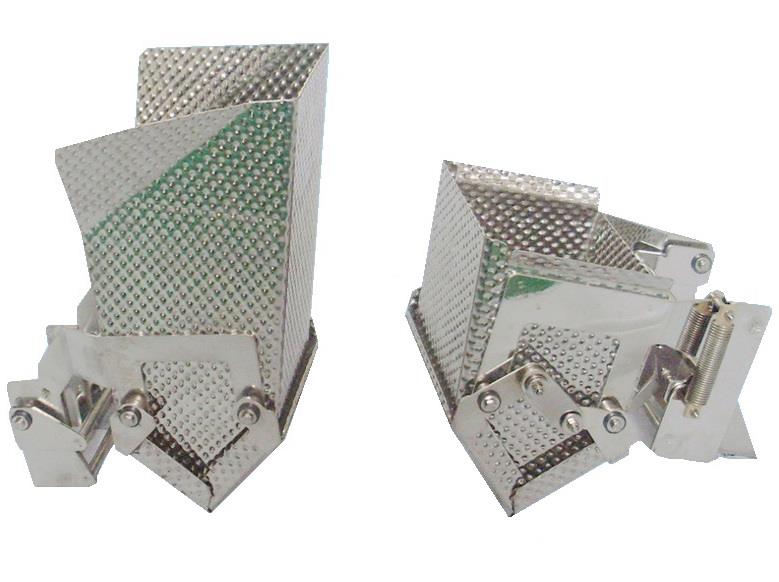

PERFORATED SURFACE APPLICATION (KNURLED) ON WEIGHING MACHINE (Optional Feature)  (JW-A10TT)
Made in Turkey
Note: Our company, if requires, may make changes in technical specifications of machine without prior notice.
ELEVATOR AND VIBRATORY FEEDER (Optional Feature)  (EL-4)
Carrying capacity:0-10 m³/hour (calculated when bucket is full at the rate of  %50)
Outlet altitude:4000mm
Power:2200W 380V/220 50Hz/60Hz Single/3 Phase
Chain Wheel: Japan KANA Stainless Steel  Chain Wheel
Bucket Material: PP Plastic (it may be used for food),
Capacity1.8 L
Control: Frequency Convertor Control
Weight :400kg
Vibrator
Capacity of Vibrator:  0-10m³/h
Power: 220V/60Hz Single Phase, 250W
Frame Material：Stainless Steel  Chain 304
Capacity of Reservoir：120L
Weight: 60Kg
Made in Turkey
Note: Our company, if requires, may make changes in technical specifications of machine without prior notice.
PLATFORM FOR MULTI-HEAD WEIGHERS (JW-D2)
304 quality chrome
Stair and railing protected, 4-legged platform
Railing height 1016 mm
Total Width 1900 mm x Height 1900 mm
Note: Notre société se réserve le droit d'apporter des modifications aux spécifications techniques des machines jugées nécessaires et sans préavis.
Origin : Turque
