BSC-Q 2023 QUATRO DİKEY PAKETLEME SİSTEMİ + 2 LINEAIRE KEFELİ TERAZİLİ (50-5000 gr.)

Category
:
PACKAGING VERTICAL SYSTEMS (EKO)
Product Name
:
BSC-Q 2023 QUATRO DİKEY PAKETLEME SİSTEMİ + 2 LINEAIRE KEFELİ TERAZİLİ (50-5000 gr.)
Product Description
:
Capacity of packaging is between 20 gr - 2000 gr. On the machine; Two-Headed Linear Electronic Weighing System substituting  powdered sugar, pulses, nuts etc products, , pickles, olives, apricots, can be packaged as sensitive products such as fittings

Request a Bid
Required Field:60 m2
Total Electricity Consumption:5 kW – 380 Volt / 3 Phase 50 Hz
Origin:TURQUIE
Capacity:25 PAQUETS / MINUTE
Number of Employees:1
Required / Air, Water and Fuel:6 Bar Air Presseure 300 lt
Products

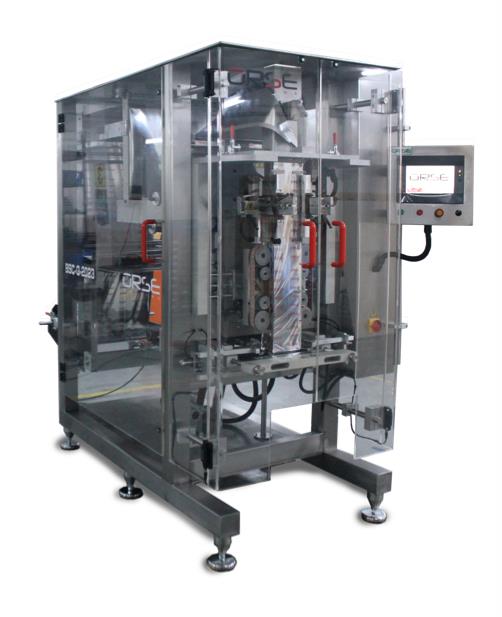

QUATRO VERTICAL PACKAGING MACHINE (BSC-Q 2023)
Chrome Body S/S 304
Servo Motor
Ce Security
Automatic Adjustable Tower Film System
Air Bobbin Fixing
Standup Package Fan System
Film Tensioning- Warp System
Transparent Fiber Glass  Cover
10'' Touch Screen
Mobile Neck  - Pipe
Auto-Film Centering System

Model  BSC-Q 2023
Maximum Packaging Speed (package/ minute): 45 package/ minute
Package Length (min. - max.) : 40 - 360 mm
Package Width (min. - max.):  30 - 240 mm
Diameter of Film Bobbin (max.) : 400 mm
Width of Film Bobbin: 520 mm
Package Type: pillow, Bendy and Standup packages of Quatro
Thickness of Film : 0,04--0,09 mm
Air Consumption (m / minute) :  0,8 Mps 0,3 m / min
Voltage: 3,5 KW 220 V 50 / 60 Hz
Net Weight : 900 Kg
Packaging Materials: Polypropylene, polyethylene, All Films With Lamination, Barrier Film, Water - Soluble film
Dimensions
Width : 1630 mm
Length: :2850 mm
Height : 2150 mm
Made in Turkey
Note: Our company, if requires, may make changes in technical specifications of machine without prior notice.
PERFORATION ON PACKAGE (Optional Feature) (2023-1)
Made in Turkey
Note: Our company, if requires, may make changes in technical specifications of machine without prior notice.
NITROGEN PRACTICE INSIDE PACKAGE (Optional Feature) (2023-2)
Deterioration process of product is delayed by means of pumping gas inside product.
It prevents the creating of microorganisms.
It prevents the crumpling of package and protects sensitive products against all damages.
It prevents fermentation of the product as well as preventing or delaying of oxidation reactions.
It prevents appearing of undesirable tastes and diffusing of undesirable odors.
Applicable areas ; milk powder, coffee, chips, nuts and dried fruits etc..
Made in Turkey
Note: Our company, if requires, may make changes in technical specifications of machine without prior notice.
EURO-PERFORATED HANGER APPLIED JAW(Optional Feature) (2023-3)
Made in Turkey
Note: Our company, if requires, may make changes in technical specifications of machine without prior notice.
ADDITIONAL QUATRO NECK-PIPE SET (Optional Feature) (2023-5)
Forming tube for quadro (packs sealed from 4 edges) packages: This is the forming tube required and used for receving packages in the quadro form. In case of each change in the product weight or width, additional forming tube is needed.
Note: Our company, if requires, may make changes in technical specifications of machine without prior notice.
Made in Turkey
THERMAL TRANSFER OVERPRINTERS (Optional Feature) (SVM32-50-1)
The high performance, low cost thermal transfer printers are versatile enough for printing fixed and variable text, data and graphics. It is ideal for reproducing bar codes, real time, sell-by dates, batch numbers, prices, source codes and much more. Two component models of brackets (Intermittent & Continuous)  can be easily integrated to the machines such as vertical and horizontal form-fill-seal systems, primary labellers, thermo formers and overwrapping equipments. The units are suitable for all intermittent and continuous applications within the food, pharmaceutical cosmetics and automobile spare parts industries has the capability to code all kinds of 1D barcodes and 2D datamatrix codes.

TECHNICAL SPECIFICATIONS
* 32mm x 50mm Intermittent model print area.
* 600 meter ribbon capacity.
* Resolution 300 dpi (12 dots / inch)
* Print Speed up to 400 mm/sec.
* 4.3" touch panel color control screen.
* 90 °, 180 °, 270 ° rotate features of the templates.
* Memory: 5000 Templates can be stored in the control screen memory.
* Power Supply: 110/220V 50/60 Hz.
* Programming: Real Date/Time, Text, 1D Barcode, 2D Barcode, Logo, Counter (Serial No), Shift Code, Shape, Currency.
* Barcode Types: 1D Barcodes (EAN-13, EAN-8, CODE128, CODE39, ITF, 2of 5, ITF 14, CODABAR, UPC-A, UPC-E), 2D Barcodes (Datamatrix, QR Codes, PDF 417, Aztec code Semacode, Macro PDF 417).
* Communication: RS-232 (PC), LAN, USB
Note: Our company, if requires, may make changes in technical specifications of machine without prior notice
Made in Turkey

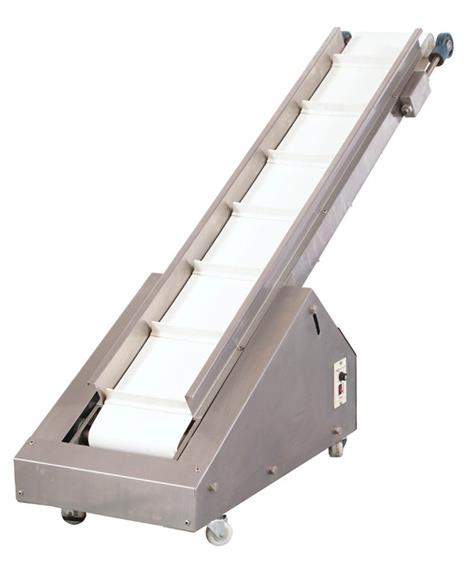

PACKAGE CONVEYOR (Optional Feature) (CB1000)
It is used to carry the packaged products by machine to packing unit after they are taken out from machine. Standard model carries the products that are taken out from machine 200 cm forward and a height of 80 cm.
Made in Turkey
Note: Our company, if requires, may make changes in technical specifications of machine without prior notice
2 LINEAR HEAD-SCALE SYSTEM (JW-AX2)
SPECIFICATIONS:
2 pieces small linear vibrators
2 pieces big linear vibrators
2 pieces load-cell weighing pan
PLC controlled system

TECHNICAL SPECIFICATIONS
Weighing range: 50-2000 gr.
Speed: 25 weighing / min.
Power requirement: 220V, 50Hz, mono phaze
Accuracy: ± 5 gr
Scale volume: 2 liters
Made in Turkey
Note: Our company, if requires, may make changes in technical specifications of machine without prior notice.
ELEVATOR AND VIBRATORY FEEDER (Optional Feature) (EL-4)
Carrying capacity:0-10 m³/hour (calculated when bucket is full at the rate of  %50)
Outlet altitude:4000mm
Power:2200W 380V/220 50Hz/60Hz Single/3 Phase
Chain Wheel: Japan KANA Stainless Steel  Chain Wheel
Bucket Material: PP Plastic (it may be used for food),
Capacity1.8 L
Control: Frequency Convertor Control
Weight :400kg
Vibrator
Capacity of Vibrator:  0-10m³/h
Power: 220V/60Hz Single Phase, 250W
Frame Material：Stainless Steel  Chain 304
Capacity of Reservoir：120L
Weight: 60Kg
Made in Turkey
Note: Our company, if requires, may make changes in technical specifications of machine without prior notice.
