PRO-Q 2023 QUATRO VERTICAL PACKAGING SYSTEM + AUGER FILLER SYSTEM (20-1000 gr.)

Category
:
PACKAGING VERTICAL SYSTEMS (PRO)
Product Name
:
PRO-Q 2023 QUATRO VERTICAL PACKAGING SYSTEM + AUGER FILLER SYSTEM (20-1000 gr.)
Product Description
:

Vertical Packaging Machine is suitable for packing powdered products between 20 gr to 2500 gr. No-fluency -  powdered products are used in fully automatic packaging. Generally used for packaging powdered products like spices, ground coffee, milk powder, flour mix whipped cream, additives, pesticides and so on..  Optionally,it makes packages in the types of  pillow pack, sitting pack and quatro pack.

Request a Bid
Required Field:60 m2
Total Electricity Consumption:5 KW – 380 Volt / 3 Phase 50 Hz
Origin:TURQUIE
Capacity:25 - 60 PAQUETS / MINUTE
Number of Employees:1
Required / Air, Water and Fuel:6 Bar Air Presseure 300 lt
Products
QUATRO VERTICAL PACKAGING MACHINE (PRO-Q 2023)
Chrome Body S/S 304
Servo Motor
Ce Security
Automatic Adjustable Tower Film System
Automatic Film Sliding Protection System
Vacuum Belt
Air Bobbin Fixing
Standup Package Fan System
Anti-Static Bobbin
Upper Weight Receiving System
Lower Weight Receiving System
Film Tensioning- Warp System
Transparent Fiber Glass  Cover
10'' Touch Screen
Mobile Neck  - Pipe
Lighting Inside Board
Auto-Film Centering System

Model  PRO-Q 2023
Maximum Packaging Speed (package/ minute): 65 package/ minute
Package Length (min. - max.) : 40 - 360 mm
Package Width (min. - max.):  30 - 240 mm
Diameter of Film Bobbin (max.) : 400 mm
Width of Film Bobbin: 520 mm
Package Type: pillow, Bendy and Standup packages of Quatro
Thickness of Film : 0,04--0,09 mm
Air Consumption (m / minute) :  0,8 Mps 0,3 m / min
Voltage: 3,5 KW 220 V 50 / 60 Hz
Net Weight : 900 Kg
Packaging Materials: Polypropylene, polyethylene, All Films With Lamination, Barrier Film, Water - Soluble film
Dimensions
Width : 1630 mm
Length: :2850 mm
Height : 2150 mm
Made in Turkey
Note: Our company, if requires, may make changes in technical specifications of machine without prior notice.
PRO-Q 2023 QUATRO VERTICAL PACKAGING SYSTEM + AUGER FILLER SYSTEM (20-1000 gr.) (THS/G21E)
Very high sensitivity to all magnetic and non-magnetic metals, including stainless steel
Autolearn and automatic tracking of the product effect
Designed to inspect powders, liquids, granules and other loose materials in free-falling applications
Full compliance with HACCP criteria
250 product data memories
Completely housed in AISI 316L stainless steel
Very high reliability
Note: Our company, if requires, may make changes in technical specifications of machine without prior notice.
Made in Italy
PERFORATION ON PACKAGE (Optional Feature) (2023-1)
Made in Turkey
Note: Our company, if requires, may make changes in technical specifications of machine without prior notice.
NITROGEN PRACTICE INSIDE PACKAGE (Optional Feature) (2023-2)
Deterioration process of product is delayed by means of pumping gas inside product.
It prevents the creating of microorganisms.
It prevents the crumpling of package and protects sensitive products against all damages.
It prevents fermentation of the product as well as preventing or delaying of oxidation reactions.
It prevents appearing of undesirable tastes and diffusing of undesirable odors.
Applicable areas ; milk powder, coffee, chips, nuts and dried fruits etc..
Made in Turkey
Note: Our company, if requires, may make changes in technical specifications of machine without prior notice.

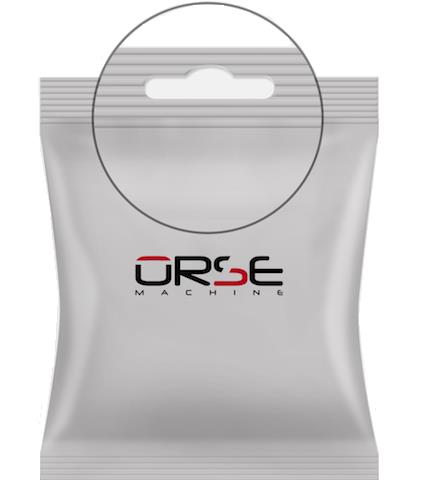

EURO-PERFORATED HANGER APPLIED JAW (Optional Feature) (2023-3)
Made in Turkey
Note: Our company, if requires, may make changes in technical specifications of machine without prior notice.

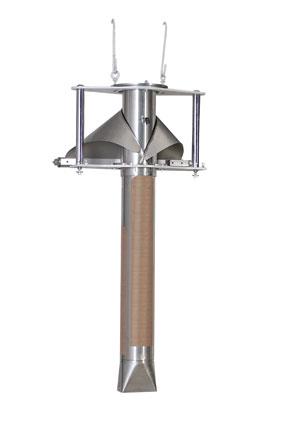

ADDITIONAL PIPE NECK (Optional Feature) (2023-4)
Forming tube for stand up packages: This is the forming tube required and used for receving packages in the stand up form. In case of each change in the product weight or width, additional forming tube is needed.
Note: Our company, if requires, may make changes in technical specifications of machine without prior notice
Made in Turkey

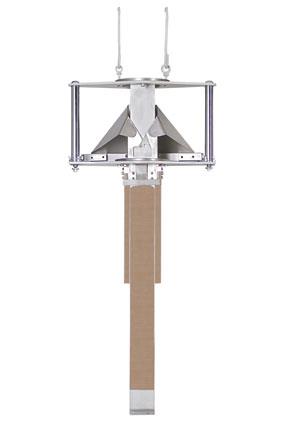

ADDITIONAL QUATRO NECK-PIPE SET(Optional Feature) (2023-5)
It is used to make packaging in quatro package ( 4 sides ironed) type according to product to be packaged and basis weight. Extra neck pipe is necessary to meet the requirements related with different basis weight and package width.
Made in Turkey
Note: Our company, if requires, may make changes in technical specifications of machine without prior notice.
THERMAL TRANSFER OVERPRINTERS (Optional Feature) (SVM53-70-I)
The high performance, low cost thermal transfer printers are versatile enough for printing fixed and variable text, data and graphics. It is ideal for reproducing bar codes, real time, sell-by dates, batch numbers, prices, source codes and much more. Two component models of brackets (Intermittent & Continuous)  can be easily integrated to the machines such as vertical and horizontal form-fill-seal systems, primary labellers, thermo formers and overwrapping equipments. The units are suitable for all intermittent and continuous applications within the food, pharmaceutical cosmetics and automobile spare parts industries has the capability to code all kinds of 1D barcodes and 2D datamatrix codes..

TECHNICAL SPECIFICATIONS
* 53mm x 75mm Intermittent mode print area.
* 600 meter ribbon capacity.
* Resolution 300 dpi (12 dots / inch)
* Print Speed up to 450 mm/sec.
* 7" touch panel color control screen.
* 90 °, 180 °, 270 ° rotate features of the templates.
* Memory: 5000 Templates can be stored in the control screen memory.
* Power Supply: 110/220V 50/60 Hz.
* Programming: Real Date/Time, Text, 1D Barcode, 2D Barcode, Logo, Counter (Serial No), Shift Code, Shape, Currency.
* Barcode Types: 1D Barcodes (EAN-13, EAN-8, CODE128, CODE39, ITF, 2of 5, ITF 14, CODABAR, UPC-A, UPC-E), 2D Barcodes (Datamatrix, QR Codes, PDF 417, Aztec code Semacode, Macro PDF 417).
* Communication: RS-232 (PC), LAN, USB
* PC Programme: Sayasis
Note: Our company, if requires, may make changes in technical specifications of machine without prior notice
Made in Turkey
PACKAGE CONVEYOR (Optional Feature) (CB1000)
It is used to carry the packaged products by machine to packing unit after they are taken out from machine.
Standard model carries the products that are taken out from machine 200 cm forward and a height of 80 cm.
Made in Turkey
Note: Our company, if requires, may make changes in technical specifications of machine without prior notice.
AUGER FILLER SYSTEM  (HPM AF)
With one measure group
European Union CE standards
All surfaces in contact with the product stainless steel ANSI 304 CR-NI
Precise and exact setting tour with Servo Motor
AC motor especially designed mixer system regulating controlled product feed
3.8” touch screen  and control settings
Closed mechanism and electrical system
Emergency stop system
Error detection and warning system
Easy to use and setup
Easy assembly, disassembly and cleaning
TECHNICAL SPECIFICATIONS
Operating speed packet / min. max. 60
Weighing range ( min. - max. )    0-1000 gr.
Weighing accuracy % 1  (may vary depending on density)
Power requirement 380 3 Phase 2 KW
Weight :100 Kg.
Made in Turkey
Note: Our company, if requires, may make changes in technical specifications of machine without prior notice.
ADDITIONAL SCREW MEASURE GROUP (Optional Feature) (HPM AFO)
Made in Turkey
Note: Our company, if requires, may make changes in technical specifications of machine without prior notice.
CLAPPES SYSTEM (Optional Feature) (KLAPE SİST)
Made in Turkey
Note: Our company, if requires, may make changes in technical specifications of machine without prior notice.

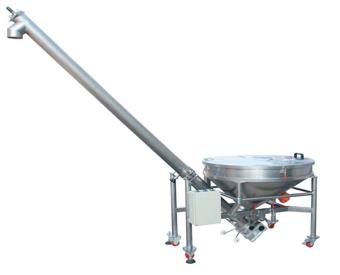

SCREW CONVEYOR (EAC-4)
Transportation Capacity: 3-5 m³ Per hour
Output Height: 4000mm
Hopper Volome: 1500L
Power: 3 Phases, 380V, 60Hz
Power Of Transportation Motor: 1500W（Each height is increased by 500mm, The motor power should be 750W more.)
Vibration Motor: 70W (Takes Down the product to be bottom of Hopper for transportation)
Material: SUS304
Made in Turkey
Note: Our company, if requires, may make changes in technical specifications of machine without prior notice.
