CONTUNUOUS OLIVE PITTING MACHINE WITH 8 KNIVES AND SIEVING MACHINE 100-400 KG MAX HEURE

Category
:
OLIVE PROCESSING MACHINES (PRO)
Product Name
:
CONTUNUOUS OLIVE PITTING MACHINE WITH 8 KNIVES AND SIEVING MACHINE 100-400 KG MAX HEURE
Product Description
:
The olives spilling onto the feding banda re fed accordin to the speed of the olive pitting machine. The olives removed from the pips are carried from the pip ramoval machine into the densimeter cauldron through transfer band. Olives that are not removed from the pips are caught here, and the olives are washed as particularized. Washed olives fall onto the selected manually. The refular ones carry on moving on the same band and fed into the slicing machine. After being well sliced in the slicing machine, the finally fall onto the vibratör machine here. The unwanted remains and little tip parts are separeted from the regular slices

Request a Bid
Required Field:300 m2
Total Electricity Consumption:23 kW 380 V 3 Phases
Origin:TURQUE
Capacity:100-400 KG/HEURE
Number of Employees:3
Required / Air, Water and Fuel:6 Bar Air Presseure 300 lt
Products
STEMMING MACHINE (TM 07)
This machine removes the stems and flowers of the goods such as olive, cherry, cucumber, etc. and is adjusted to the desired slope according to the dimensions of the goods. The stemmıng chlinders have a mixing system which makes the goods change position continuously and a shower unit. The machine is manufactured from stainless material including the stemming cylinders.
TECHNICAL SPECIFICATIONS
Mixing Unit
22’ stemming cylinders (Crni)
Drive from bottom and top
Adjustable slope
Shower system
Feeding band with speed control
AISI 304
2000-2500 kg/h capacity
380V
Ip 65 plastic electrical board
Dimensions (mm) Width : 1450 Length : 2200 Height : 1920

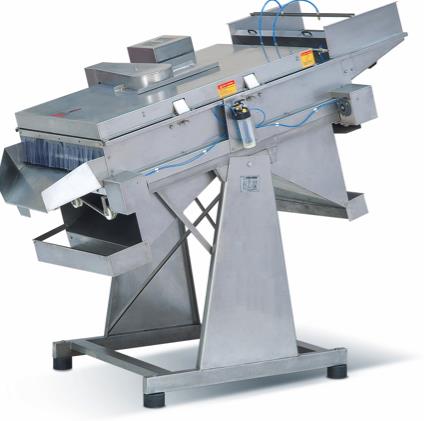

OLIVE PITTING MACHINE WITH 8 KNIVES (TM 03)
This machine designed to remove the olive pips in any kind is produced with 8 knives. It is enable to process the max 1400 olives /sec. The machine is designed electronic controlled in order to adjust the speed upon request. Completely stainless steel and quality engineering plastics are used in the production of those machines. Thanks to the qualified lubrication system, the abrasion defects are reduced at minimum level thus healthy and long life of machines can be offered to the consumers.
TECHNICAL SPECIFICATIONS
8 driller knives
420 kg/h max capacity
running between 80 and 420 calibrated space.
Sensor controlled feeding band
Engine Power 0,75-0,25 Kw  380V
Electronic speed controlled
Central lubrication system
AISI 304 Crni body
3 pcs of calibration disk
PVC band approved by FDA
Ip 65 plastic electrical board
Dimensions (mm)   Width: 1.000 Length: 1.250  Height: 1.260
DENSIMETER GROUP (TM16)
Densimeter group is consisting of 3 different machines. The equipment is running with the pip remover.
C- TRANSFER (CONVEYOR) BAND: It transfers the seedless olive to the densimeter in order to enable the olives washed.
D- DENSIMETER BOILER: Olives of which the pips are not removed before and the other particles are eliminated in this boiler in order to separate the seedless olives from those defected ones thanks to the density difference. Olives are washed and fall onto the selection band. Pips are easily removed with By-Pass system.
E- SELECTION BAND: Washed olives are transferred onto this band and the defected ones are selected and separated by hand. It is a lightened band and has three divisions. Selected olives are transferred by a different division of the band.
TECHNICAL SPECIFICATIONS
1200 kg/h max. capacity
 Transfer Band
 550 lt boiler capacity
 Possibility of removing pips by By-Pass system
 Lightened selection band 2500x500
 380 V
 Electrical engines 0,25-0,55-0,75
 Ip 65 plastic electrical board
 Stainless pump with 1" output
 AISI 304 Crni body
 PVC band in compliance with FDA
 Boiler Dimensions (mm) Width: 790 Length: 1710  Height: 2350
 Transfer Band Width: 220 Length: 1940 Height:1940
 Selection Band Width: 750 Length: 2000 Height:2250
SLICING MACHINE (TM09)
The slicing machine is designed to slice the olives in the same form and thickness once the pips are removed.  Depending on the olive quality, it is possible to obtain the good quality of slicing by 95%. It is prevented to give the damage by the olives of which the pips are not removed and those olives are separated by the machine in order not to mix those with the sliced olives. The machine is completely produced in the quality of stainless including the drums coated with special rubber. Every component is designed to resist against the abrasion thus a healthy and practical operation of the machine is ensured.
TECHNICAL SPECIFICATIONS
Special rubber conveyor band
72 pcs slicing knives
Knife washing system
AİSİ 304 body
Engine power 0.75 kw
Stainless steel knives
900-1200  kg/h max capacity
380v
Ip 65 power switch
Dimensions (mm) : width: 750 length:1200 height:820
VIBRATOR (TM32)
Vibrator machine separates the small tip parts and the remains of the sliced olives from the smooth slices. Additionally, it is used for the sieving of other goods.  This machine is manufactured from stainless material and has two vibration engines. Furthermore the machine allows the separation of the smallest particles thanks to the shower system.  It operates noiselessly and practically.
TECHNICAL SPECIFICATIONS
2 vibration engines
AISI 304 pipe body
Replaceable sieving sheet metal
Sieving sheet metal stretching apparatus
Showering system
Changeable capacity according to the goods
380V
Ip 65 plastic electrical board
Dimensions (mm) Width:1050 Length:1700 Height:1050
4 METER SELECTION BAND (TM17)
This band on which various goods are selected is produced in different sizes according to customer needs.  This machine consists of a line through which the selected goods are separated.  Thanks to this line, inappropriate goods are separated from the appropriate ones at the end of the band.  In order to provide a bright working environment, the machine has lightening fixture.  However this lighting fixture is covered by a shelter so that the employers shall not be dazzled by the light.  The machine has speed control and is supplied by a feed-band which has speed control.  According to customer needs, it is produced with seats or seatless
TECHNICAL SPECIFICATIONS
Waste separation canal
4 mt selection length
Feed band with speed control
Lighting fixture
Light protection
Selection band with speed control
PVC band in conformity with FDA
AISI 304 stainless body
Engine power 0,55 Kw
220 V
Ip 65 plastic electrical board
Dimensions (mm) Width: 1050 Length: 5600 Height: 1600
Dimensions (mm) Width: 1750 Length: 5600 Height: 1600(with seats)
8 SITTING SETS (OPTIONAL) (TM17-S)
4 METER OLIVE SIEVING MACHINE AND FEEDING BELT (TM24)
This machine classifies the olives which have different sizes.  It is possible to get the olives with the desired calibration from the desired division because the distance between the divisions into which the olives fall while being sieved can be regulated. Olives are transferred to the machine by the feeding band.  This feeding band has speed control and supplies goods regularly.  The machine is manufactured from stainless steel and high quality plastic elements.  Furthermore, special knitted threads are used in the production of the machine for a better calibration.
Adjustable division distance
TECHNICAL SPECIFICATIONS
Possibility of increasing and reducing the number of divisions
4 mt. sieving distance
10 mm special knitted thread
15 threads
Thread stretching apparatus
Electronic speed control
Feed band with speed control for continuous good supply
10 divisions
Transfer band which spreads olives
Leave and dust removing fan
AISI 304 stainless body and equipment
PVC bands in compliance with FDA
2500 3000 kg/h max. capacity
220V
Ip 65 plastic electrical board
Width: 1000 Length: 5300 Height: 1400
