TRAY DRYER TO VEGETABLE AND FRUITS
Product Name
:
TK-40 TRAY DRYER TO VEGETABLE AND FRUITS 320 kg – 800 kg 24 HOUR
Product Description
:
The tray drying systems is used for drying the products to be dried without movement or for adhesives. The drying of the products available on the tray in the machine is carried out under different conditions by aeration.
Required Field:40 m2
Total Electricity Consumption:KW:24 (380 volt)
Origin:TURQUE
Capacity:320 kg – 800 kg 24 saat
Number of Employees:2 PERSON
Required / Air, Water and Fuel:50.000 Kcal /saat
Products
TK-40 TRAY DRYER TO VEGETABLE AND FRUITS 320 kg – 800 kg 24 HOUR (TK-40)
TECHNICAL SPECIFICATIONS
Total surface area of the tray: 40 square meters
Tray size: 80 x 100 cm
Number of trays: 50
Gas heating system: 50.000 kcal/hour
Number of cars                   : 2
Max . Motor power kW: 24 (380 volt)
Elements located on the Machine;
1. Machine body

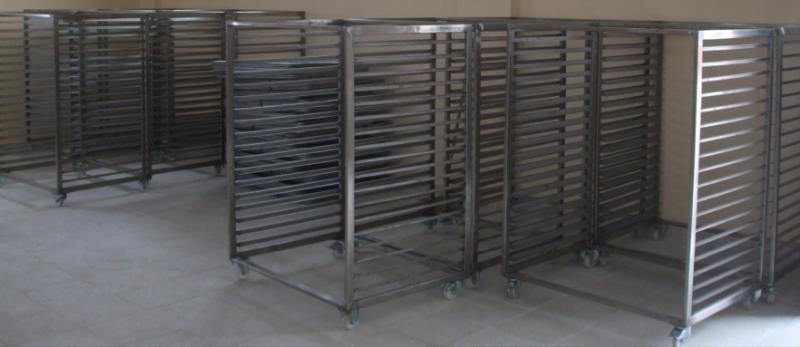

2. Car
3. Tray
4. Board
5. Fan
6. Natural gas heaters
7. Piping system
INFORMATION ABOUT CAPACITY (KG)
Tomatos: 640
Apple: 640
Carrot: 840
Mushroom: 420
Spinach : 640
Red pepper: 640
Grape: 320
Onion: 360
Plum-apricot: 800
Banana: 560
Strawberry: 480
Mandarin: 480
Okra: 480
Note: capacity was taken during the 24-hour operation.  After the release of the first product and following continued  entry and exit is the system capacity.
Note  2: capacity may vary depending on differences in the type of product, the outside temperature, the desired amount of dryness, the product size, moisture from the entrance of fresh products etc...
Note: Our company reserves the right to make changes in technical specifications of the machines as deemed necessary without prior notice.
