SMM series is a kind of manual-operating-mode blow molding machine to produce various of PET container from
0.05L to 5.0L. Low investment, easy operation, low maintenance and high quality control are its main merits, and
it is very suitable for PET bottle blowing business startup stage.
Each set of SMM machine is made up of two independent components:
Preform heating oven & Bottle Blower, and can be applied for all kinds of
PET container application, including water, drinks, oil, jar, cosmetic, medicine, etc.
SMM-720 is a two-cavity manual platform conceived for PET containers up
to 2.0 liters, with output up to 720BPH for 500ml round water bottle with 30/25 neck.
Technical Data
Max. Output
For Water Bottles BPH: 720*
Fos CSD bottles BPH: 600*
Bottle Dimension
Outer Dia (Max.) MM: 110
Height (Max) MM: 350
Volume Range L: 0.05-2.0
Blow- molding Station
Cavity number CAVITY: 2
Cavity Center Distance MM: 130
Preform Spindles Ptich MM: 50, 8
Air Presseure for Operation Bar: 8-10
Pressure for blowing bar: 25-30
Colling Water Pressure Bar 4-5
Temperature C: 10-15

New-designed RCM series industrial chillers are used R407C environmental-friendly refrigerant for efficient cooling. RCM series industrial chillers with P.I.D. control are capable of co ntrolling precisely the molding cycle and speed production formalization. The principle of heat exchange can achieve rapid cooling, stable temperature controlling and will be little effected by the surrounding factors. Therefore they are necessary good equipments modern industry. Except plastic industry, RCM series is suitable electroplating, foodstuff, electronic products, bleaching and dyeing, ultrasonic.
Separable designed filter equipments
Heating device for compressor
Stainless steel warm-keeping water tank
High voltage protection, motor protection and phase sequences relay
Electrical cabinet combining with CE parts
Turkish-English warning labels and manual instruction
Cooling capacity : 22000 Kcal / h
Compressor power: 10 kw
Chilled water pump power : 1.1 kw
Max flow rate of the chilled water : 300 L/min
Intel flow and water discharge pipe  : 2.5’
Capacity of water tank:  85 L/m
External dimensions: 800x1600x1500 mm
Compressor: All voticity closed
Cooling capacity : 16.500 Kcal / h
Compressor power: 8 kw
Chilled water pump power : 1.1 kw
Max flow rate of the chilled water : 300 L/min
Intel flow and water discharge pipe  : 2.5’
Capacity of water tank:  85 L/m
External dimensions: 800x1600x1500 mm
Compressor: All voticity closed

Air Discharge:1.6m3 / min
Pressure: 4.0 Mpa
Motor Power: 18.5 Kw
Tank – no
Runing Spreed: 730 R.p.m
Weighy: 600 kg
Dimensions: 1300*1150*1750 (mm)

Contain Capacity: 0.6 m3
Pressure: 4.0 Mpa
Diameter: 700 mm
Weight: 490 Kg
Dimensions: 1200*1100*1650 (mm)

Air Discharge:1.22m3 / min
Pressure: 1.2 Mpa
Motor Power: 11 Kw
Tank: 0.3 m3/ 13 Bar
Runing Spreed: 800 R.p.m
Weighy: 486 kg
Dimensions: 1825*1700*1220 (mm)

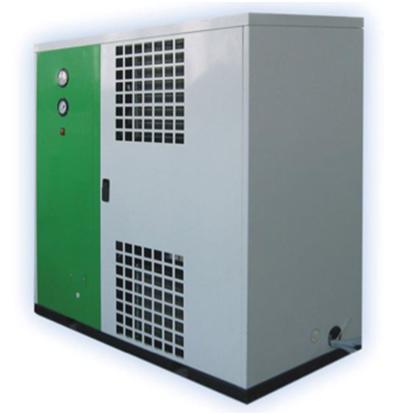

Air Treatment Capacity: 1.6 m3/min
Working Pressure: 4.0 Mpa
Filter Grade: CTHA Four-grade
Power: 0.55 Kw
Refrigerant Type: R22
Dev-Point: 2-10 C
Residual Oil Content: 0.003 P.p.m.
Solid Particle Below: 0.01 pm
Dimesions: 1150*600*1220 (mm)

Air Treatment Capacity: 1.6 m3/min
Working Pressure: 1.33 Mpa
Filter Grade: CTA Three-grade
Power: 0.50 Kw
Refrigerant Type: R22
Dev-Point: 2-10 C
Residual Oil Content: 0.01 P.p.m.
Solid Particle Below: 0.01 pm
Dimesions: 1200*600*1320 (mm)
