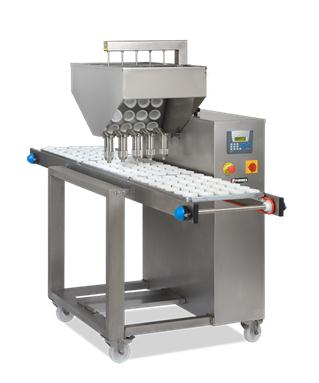

The product volumetric dosing is exact and easy to adjust. The machines are sturdy and being built to work 24 hours. They needs no maintenance (no greasing). All machine elements in contact with the dough are made from food-grade materials and stainless steel AISI304. To make easy the machine transport they have wheels.
The HMI interface incorporated in the machine supervise all the movements, checking its correct functioning as the tray feed, dosage/injected positioning and output. If there is no paper, or tray is not collected at the end, the machine stops, sound a warning and displays the reason for the stop on the control screen. It’s quick easy to use, precise, does not punish the mixture, does not drip and the trays remain clean.
TECHNICAL FEATURES
• For trays of: - Width 45 cm. (18“ inch) - We can accomodate other trays size.
• Dosage capacity for nozzle: - From 5 to 65 cc.
• Regulable nozzles.
• Nozzles: depending on model.
• Production: DA-45: 200 bandejas/hora –
• Tank capacity: 70 l
• Weight: 170 Kg.
• Dimensions (width x base x height): DA-45: 200 x 84 x 155 /160 cm
• Motor: 2 of 1/8 and 1/2 C.V. - 220 / 380 V. three-phase
• Electrical consumption: 0.5 kW
• Other technical specifications on request.
Note: Our company reserves the right to make changes in technical specifications of the machines as deemed necessary without prior notice.
Made in Spain
