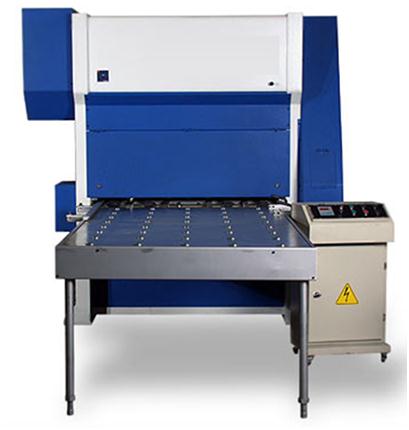

GNP 1202 TYPE EXPANDED METAL PRESS

Category
:
EXPANDED METAL PRESS MACHINES
Product Name
:
GNP 1202 TYPE EXPANDED METAL PRESS
Product Description
:
Easy and precise blade gap adjustment▶▶ Specially designed European origin blades made of abrasion resistant steel, provides long operating life ▶▶ Motorized upper beam adjustment allows accurate blade height and parallelism

Request a Bid
Required Field:50m2
Total Electricity Consumption:4.3 KW / 380 V/ 3 PHASE
Origin:TURQUE
Capacity:Strokes per minute: 150 1/min
Number of Employees:1 PERSON
Required / Air, Water and Fuel:6 Bar Air Presseure

Products
TYPE EXPANDED METAL PRESS (GNP 1202)
TECHNICAL SPECIFICATIONS
Max.Sheet Thickness to Expand : 0,7 - 2 mm.
Max.Sheet Width to Expand : 1250 mm.
Strokes per minute: 150 1/min
GENERAL CHARACTERISTICS
Blade gap adjustment easy and precise
The size of blades are designed to maintain long working life
Blades are made of specially tough, wear resistant European steel
The motorised control of upper table enables accurate adjustment of the parallelism and height of theblade
Crank bearings are made of bronze, the others are roller bearings
STANDARD EQUIPMENT
Automatic sheet feeding system
Complete switch board and control panel
Table with rollers which enables easy feeding of the sheet
Motorised central lubrication system
One set upper and lower blades
Stroke counter for lenght adjustment
Automatic stopping system at the end of the sheet
