PACKAGING DETAILS
Suitable heat-sealable films such as paper or aluminium laminations, OPP, BOPP cellophane with ready stick sides and coldsealable films of same quality.The range of goods that can be packed : chocolates, sweet confectioneries, biscuits, cakes, halva, sandwiches, finger foods,and other applications such as sponges, cleaning cloths, rubbish bags, and other solid products can also be packed.Thismachine's packing capacity is approximately 100-120 pac/min.The capacity is dependent on used wrapping material type andstick type (hot or cold) and also sizes of product been packaged.
CONSTRUCTION
Heavey duty full steel frameProduct handling line and all chassis cover is stainless steel.Body design for easy clean down.Heavey duty roller for easy relocation.Heavey duty adjustable feet for permanent positioning.
FEATURE DETAILS
Charger feeding can regulate as a width , height and lenght.(Universal setting)
Optionally; can feed on line up as double, trio, quad and fivefold.
The charger feeding can work senkron with main machine as a mechanical.
The chin system is double chin which has a adjustable angle blades.
Single bobbin head is fitted with a extra bearing with a total of 2 bearings to stop any flexing from loading. The Packet length dimension can be set to continously variable any dimension with servo control between the minimum and maximum value. Chin and Conveyor moves controlled single servo motor.
Automatic break system. More power of resistance and more robust and mechanically advanced
The automatic packaging settings can be done with on touch screen control panel.
The sewing group has triple (Puller, Heater and Barcode) roller press adjustable.
Conveyor group can be adjustable for products. The chin speed can be set to continously variable any speed between the minimum and maximum value, while machine is operating. Machine have product counter.Thanks to the counter showing the amount of product, specified quantity of production is reached, the machine automatically stops production. Adjustable folding unit.
Online Control System and Programing with CF Cards B&R Industrial PC Motion Control System
B&R Servo motor and Driver B&R 5,7” Touch Screen Control Panel With Colour
SPECIFICATIONS
Chin Width: 160 mm
Product Dimensions
Width: 20-150 mm
Height: 5-60 mm
Lenght: 80- 450 mm
Consult Orse For other dimensions

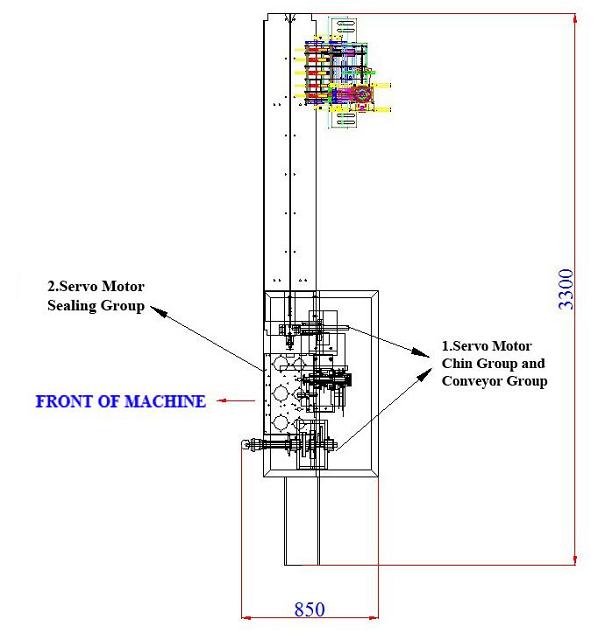

General Machine Dimensions
Width: 850 mm
Height: 1800 mm
Lenght: 3300 mm
App. Machine Weight: 700 kg.
Machine Speed: 100-120 pac/min.
Pneumatic Consumption: Yok
Max. Spool Width: 400 mm
Electrical Voltage: 380 Volt / 3 Phase 50 Hz.
Max. Spool Diameter: 450 mm
Power Consumption: 4,1 kW – 20 Amp.
Spool Inside Diameter: 60-76 mm
Motor Power/ Heater Power: 2,1 kW – 2 kW
