PACKAGING DETAILS
Suitable heat-sealable films such as paper or aluminium laminations, OPP, BOPP cellophane with ready stick sides and cold
sealable films of same quality.

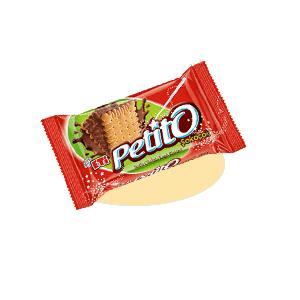

The range of goods that can be packed : chocolates, sweet confectioneries, biscuits, cakes, halva, sandwiches, finger foods, and
other applications such as sponges, cleaning cloths, soaps, rubbish bags, and other solid products can also be packed. This machine's
packing capacity is approximately 150-200 pac/min.The capacity is dependent on used wrapping material type and stick type (hot or
cold) and also sizes of product been packaged. From 40-80 gr. to 1 kg. can be packaged on this model without any other additional
parts added.
CONSTRUCTION
Heavey duty full steel frame
Product handling line and all chassis cover is stainless steel.
Body design for easy clean down.
Heavey duty roller for easy relocation.
Heavey duty adjustable feet for permanent positioning.
FEATURE DETAILS
Band is with AC motor-gear box and speed controller
The chin system is double chin which has a adjustable angle blades.
Single bobbin head is fitted with a extra bearing with a total of 2 bearings to stop any flexing from loading.
The Packet length dimension can be set to continously variable any dimension between the minimum and maximum value with
servo control
Chin and Conveyor moves controlled single servo motor.
Automatic break system.
More power of resistance and more robust and mechanically advanced
The automatic packaging settings can be done with on touch screen control panel.
The sewing group has triple (Puller, Heater and Barcode) roller press adjustable.
Conveyor group can be adjustable for products.
The chin speed can be set to continously variable any speed between the minimum and maximum value, while machine is operating.
Machine have product counter.Thanks to the counter showing the amount of product, specified quantity of production is reached,
the machine automatically stops production.
Adjustable folding unit.
Online Control System and Programing with CF Cards
OMRON Industrial PC Motion Control System
OMRON Servo motor and Driver
OMRON 5,7” Touch Screen Control Panel With Colour
SPECIFICATIONS
Chin Width 160 mm
Product Dimensions
Width: 20-150 mm
Height: 5-60 mm
Lenght: 80- 450 mm
Consult Orse For other dimensions
General Machine Dimensions
Width: Look at Page2/2
Height: 1800 mm
Lenght : Look at Page2/2
App. Machine Weight: 900 kg.
Machine Speed 150-200 pac/min.
Pneumatic Consumption NO
Max. Spool Width 400 mm
Electrical Voltage 380 Volt / 3 Phase 50 Hz.
Max. Spool Diameter 450 mm
Power Consumption 4.85 kW – 22 Amp.
Spool Inside Diameter 60-76 mm
Motor Power/ Heater Power 2.85 kW – 2 kW
Note: Our company reserves the right to make changes in technical specifications of the machines as deemed necessary without prior notice.
Made in Turkey
