PRO-D 2023 VERTICAL PACKAGING SYSTEM + 2 LINEAR HEAD-SCALE (50-2000 gr.)

Category
:
PACKAGING VERTICAL SYSTEMS (PRO)
Product Name
:
PRO-D 2023 VERTICAL PACKAGING SYSTEM + 2 LINEAR HEAD-SCALE (50-2000 gr.)
Product Description
:

Request a Bid
Required Field:60 m2
Total Electricity Consumption:5 KW – 380 Volt / 3 Phase 50 Hz
Origin:TURQUE
Capacity:25 PAQUETS / MINUTE
Number of Employees:1
Required / Air, Water and Fuel:6 Bar Air Presseure 300 lt
Products
100 Ø FULL AUTOMATIC 2-STATION BLOW MOLDING MACHINE HDPE (RG-3660)
2 u rexford servo walf
Omron computer
All of shalt material are simens
15 kw simens drover
Shivich telemekanic
Hydrolic whalf are atos
Pnomatic whalf are jucomatic or camuzzi
Screw diameter:mm 100
Screw dimeter/ lenght rate-24
Maximum screw period: per./minute 45
Extruders motor: kw 30
Hydrolic pomp: lt 135
Hidr. Pomp motor: kw 30
Hive Move motor: kw
Mould weight: mm 200-1000
Isıtma bölgesi:- 8
Isıtma gücü: kw15
Total power: kw 75
Machine Weight: ton 8,7
Machine dimensions: cm 330-580-320

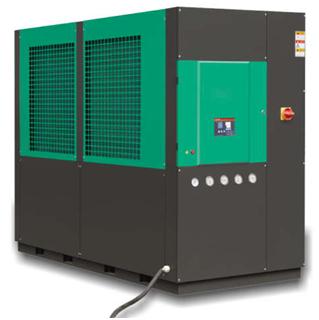

CHILLER (OPTIONAL) (RCM-15 A)
Cooling capacity: 44000 Kcal / h
Compressor power: 20 kw
Chilled water pump Power: 2,2 kw
Max flow rate of the chilled water: 400 L / min
Intel flow and water discharge pipe: 2,5 '
Water tank capacity: 180 L / m
External dimensions: 1000x2800x2000 mm
Compressor: All voticity closed
PLASTIQUES CRUSHER (OPTIONAL) (RG-3660)
Max cutting capacity: 400 x 700 kg / hr
Inlet feding size: 400 x 600 mm
Screen Size: 12 inc
Quantity of stationary blades: 4
Amount of rotating blades: 6
Power: 15 kw
Weight: 1000 kg
External dimensions: 1156x1845x1900 mm
EXTRA HEAD (OPTIONAL) (OPS1)
ADDITION OF THE LINE FOR THE OIL CANISTER (OPTIONAL) (OPS2)
DEBURRING UNIT (OPTIONAL) (OPS3)
AIR COMPRESSOR (OPTIONAL) (2000L)
Air compressor with a deposit capacity 2000 liters and power of 10,5 KW
