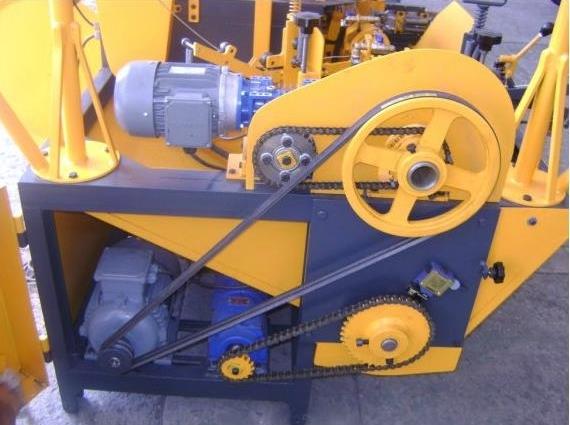

This high precision machines weave, cut, twist and also count the spiral and roll the galvanized or PVC coated steel wires automatically. Knitting of wire with spacing form 4x4, 5x5, 6x6, 8x8 cm. It is possible to knit wires covered wires from1.9 mm to 3.2 mm's.
TECHNICAL SPECIFICATIONS
Double sprial ( 2 wires)
Weaving lenght: 80 cm up to 610 cm
Wire diameter : 1.9 mm – 3.2 mm galvanized or PVC coated
Mesh size 40*40 mm – 85*85 mm
Output capacity : 120 square meters per an hour
Total power : 4.57 kw 5 electric motors : 2.2 kw – 0.75 kw - 0.75 kw -0.75 kw -0.12 kw
Electric cureent : 380 – 50 hz
Floor Space: 7000 * 1750*2300 mm
Control device to stop the machine in case breakage or lack off wire
Main panel to control the electric power and cut the ciscuit
Lenght of roll counter, and number of roll counter
Movable wire loading poles
Knuckling devices on both sides coil breaksers and roll device
Machine supplied with 3 units tool for mesh and 6 blades include the price
All tolls necessary to work and spare parts in sliding toll box
Capacity is based on information from eye to 70x70mm.
Dimensions of the machine:
Weight: 3,000 kg
Width: 1.95 m
Length: 8.00 m
Height: 2.05 m
Note: Our company reserves the right to make changes in technical specifications of the machines as deemed necessary without prior notice.
Made in Turkey
