Ors-150 HORIZONTAL PACKING MACHINE (FLOWPACK) CONTRELLED WITH 1 SERVO MOTOR

Category
:
HORIZANTAL PACKING FLOWPACK (ECO)
Product Name
:
Ors-150 HORIZONTAL PACKING MACHINE (FLOWPACK) CONTRELLED WITH 1 SERVO MOTOR
Product Description
:

The range of goods that can be packed: chocolates, sweet confectioneries, biscuits, cakes, halva, sandwiches, finger foods, and other applications such as sponges, cleaning cloths, soaps, rubbish bags, and other solid products can also be packed.

Request a Bid
Required Field:3 M2
Total Electricity Consumption:4.1 kW – 20 Amp 380 Volt / 3 Phase 50 Hz
Origin:TURQUE
Capacity:30-120 PACKAGE/MINUTE
Number of Employees:1 PERSON
Required / Air, Water and Fuel:6 Bar Air Presseure 100 lt /min
Products
HORIZONTAL PACKING MACHINE (FLOWPACK) CONTRELLED WITH 1 SERVO MOTOR (Ors-150)
PACKAGING DETAILS

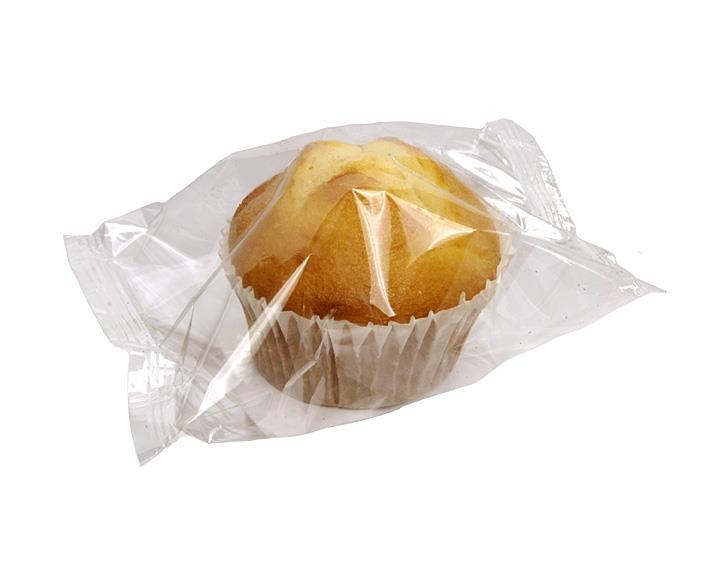

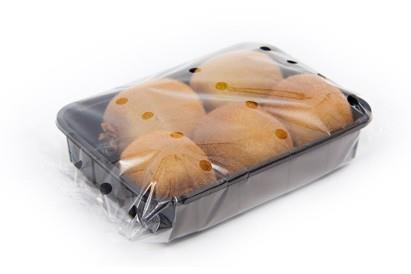

Suitable heat-sealable films such as paper or aluminium laminations, OPP, BOPP cellophane with ready stick sides and cold sealable films of same quality. The range of goods that can be packed : chocolates, sweet confectioneries, biscuits, cakes, halva, sandwiches, finger foods, and other applications such as sponges, cleaning cloths, soaps, rubbish bags, and other solid products can also be packed.
This machine's packing capacity is approximately 30-100 pac/min.The capacity is dependent on used wrapping material
type and stick type (hot or cold) and also sizes of product been packaged. From 40-80 gr. to 1 kg. can be packaged on this
Model without any other additional parts added.

CONSTRUCTION
Heavey duty full steel frame
Product handling line and all chassis cover is stainless steel.
Body design for easy clean down.
Heavey duty roller for easy relocation.
Heavey duty adjustable feet for permanent positioning

FEATURE DETAILS
The chin system is double chin which has a adjustable angle blades. Single bobbin head is fitted with a extra bearing with a total of 2 bearings to stop any flexing from loading. The Packet length dimension can be set to continously variable any dimension between the minimum and maximum value with servo control Chin and Conveyor moves controlled AC motor.

Automatic break system. More power of resistance and more robust and mechanically advanced The automatic packaging settings can be done with on touch screen control panel.
The sewing group has triple (Puller, Heater and Barcode) roller press adjustable. Conveyor group can be adjustable for products. The chin speed can be set to continously variable any speed between the minimum and maximum value, while machine is operating. Machine have product counter.Thanks to the counter showing the amount of product, specified quantity of production is reached, the  machine automatically stops production. Adjustable folding unit. Online Control System and
Programing with CF Cards
OMRON Industrial PC Motion Control System
OMRON Servo motor and Driver
OMRON 5,7” Touch Screen Control Panel With Colour

SPECIFICATIONS
Chin Width: 160 mm
Product Dimensions
Width: 20-150 mm
Height: 5-60 mm
Lenght: 80- 450 mm
Consult Orse
For other dimensions

GENERAL MACHINE DIMENSIONS
Width: 850 mm
Height: 1800 mm
Lenght: 3300 mm
App. Machine Weight: 700 kg.
Machine Speed 150-200 pac/min.
Pneumatic Consumption: No
Max. Spool Width 400 mm
Electrical Voltage 380 Volt / 3 Phase 50 Hz.
Max. Spool Diameter 450 mm
 Power Consumption 4,1 kW – 20 Amp.
Spool Inside Diameter 60-76 mm
Motor Power/ Heater Power 2,1 kW – 2 kW
Note: Our company reserves the right to make changes in technical specifications of the machines as deemed necessary without prior notice.
THERMAL TRANSFER OVERPRINTERS (Optional Feature) (SVM32C)
The high performance, low cost thermal transfer printers are versatile enough for printing fixed and variable text, data and graphics. It is ideal for reproducing bar codes, real time, sell-by dates, batch numbers, prices, source codes and much more. Two component models of brackets (Intermittent & Continuous)  can be easily integrated to the machines such as vertical and horizontal form-fill-seal systems, primary labellers, thermo formers and overwrapping equipments. The units are suitable for all intermittent and continuous applications within the food, pharmaceutical cosmetics and automobile spare parts industries has the capability to code all kinds of 1D barcodes and 2D datamatrix codes.

TECHNICAL SPECIFICATIONS
* 32mm x 125mm Continuous mode print area.
* 600 meter ribbon capacity.
* Resolution 300 dpi (12 dots / inch)
* Print Speed up to 600 mm/sec.
* 4.3" touch panel color control screen.
* 90 °, 180 °, 270 ° rotate features of the templates.
* Memory: 5000 Templates can be stored in the control screen memory.
* Power Supply: 110/220V 50/60 Hz.
* Programming: Real Date/Time, Text, 1D Barcode, 2D Barcode, Logo, Counter (Serial No), Shift Code, Shape, Currency.
* Barcode Types: 1D Barcodes (EAN-13, EAN-8, CODE128, CODE39, ITF, 2of 5, ITF 14, CODABAR, UPC-A, UPC-E), 2D Barcodes (Datamatrix, QR Codes, PDF 417, Aztec code Semacode, Macro PDF 417).
* Communication: RS-232 (PC), LAN, USB
Note: Our company, if requires, may make changes in technical specifications of machine without prior notice
Made in Turkey
NITROGEN PRACTICE INSIDE PACKAGE (OPTIONAL) (150-AZ)
Deterioration process of product is delayed by means of pumping gas inside product.
It prevents the creating of microorganisms.
It prevents the crumpling of package and protects sensitive products against all damages.
It prevents fermentation of the product as well as preventing or delaying of oxidation reactions.
It prevents appearing of undesirable tastes and diffusing of undesirable odors.
Applicable areas ; : chocolates, sweet confectioneries, biscuits, cakes, halva, sandwiches, finger foods  etc..
Made in Turkey
Note: Our company, if requires, may make changes in technical specifications of machine without prior notice.
